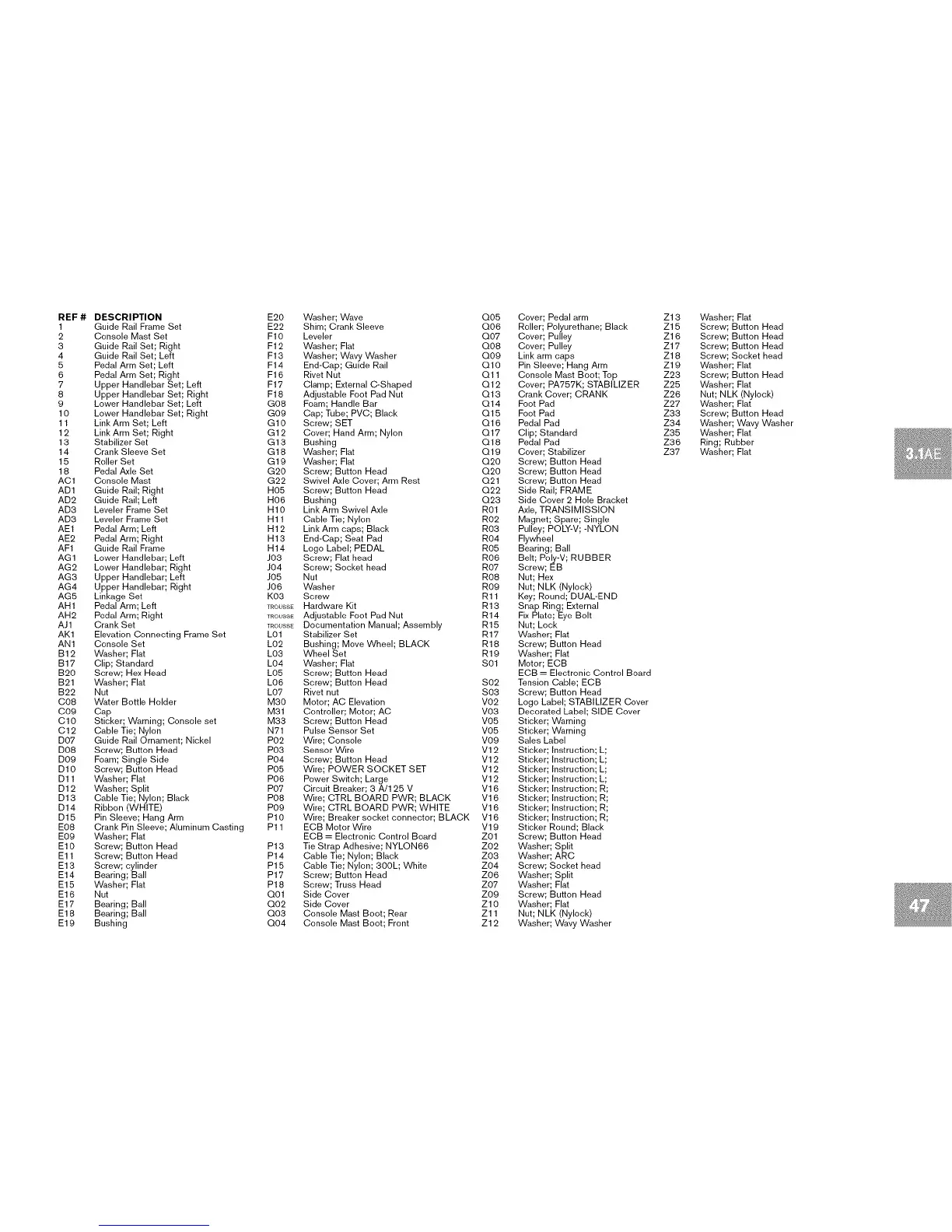

REF # DESCRIPTION
1 Guide Rail Frame Set
2 Console Mast Set
3 Guide Rail Set; Right
4 Guide Rail Set; Left
5 Pedal Arm Set; Left
6 Pedal Arm Set; Right
7 Upper Handlebar Set; Left
8 Upper Handlebar Set; Right
9 Lower Handlebar Set; Left
10 Lower Handlebar Set; Right
11 Link Arm Set; Left
12 Link Arm Set; Right
13 Stabilizer Set
14 Crank Sleeve Set
15 Roller Set
18 Pedal Axle Set
AC1 Console Mast
AD1 Guide Rail; Right
AD2 Guide Rail; Left
AD3 Leveler Frame Set
AD3 Leveler Frame Set
AE1 Pedal Arm; Left
AE2 Pedal Arm; Right
AF1 Guide Rail Frame
AG1 Lower Handlebar; Left
AG2 Lower Handlebar; Right
AG3 Upper Handlebar; Left
AG4 Upper Handlebar; Right
AG5 Linkage Set
AH1 Pedal Arm; Left
AH2 Pedal Arm; Right
AJ1 Cran k Set
AK1 Elevation Connecting Frame Set
AN1 Console Set
B12 Washer; Flat
B17 Clip; Standard
B20 Screw; Hex Head
B21 Washer; Flat
B22 Nut
C08 Water Bottle Holder
C09 Cap
C10 Sticker; Warning; Console set
C12 Cable Tie; Nylon
D07 Guide Rail Ornament; Nickel
D08 Screw; Button Head
D09 Foam; Single Side
D10 Screw; Button Head
D11 Washer; Flat
D12 Washer; Split
D13 Cable Tie; Nylon; Black
D14 Ribbon (WHITE)
D15 Pin Sleeve; Hang Arm
E08 Crank Pin Sleeve; Aluminum Casting
E09 Washer; Flat
E10 Screw; Button Head
E11 Screw; Button Head
E13 Screw; cylinder
E14 Bearing; Ball
E15 Washer; Flat
E16 Nut
E17 Bearing; Ball
E18 Bearing; Ball
E19 Bushing
E20 Washer; Wave Q05 Cover; Pedal arm
E22 Shim; Crank Sleeve Q06 Roller; Polyurethane; Black
F10 Leveler Q07 Cover; Pulley
F12 Washer; Flat Q08 Cover; Pulley
F13 Washer; Wavy Washer Q09 Link arm caps
F14 End-Cap; Guide Rail Q10 Pin Sleeve; Hang Arm
F16 Rivet Nut Q11 Console Mast Boot; Top
F17 Clamp; External C-Shaped Q12 Cover; PA757K; STABILIZER
F18 Adjustable Foot Pad Nut Q13 Crank Cover; CRANK
G08 Foam; Handle Bar Q14 Foot Pad
G09 Cap; Tube; PVC; Black Q15 Foot Pad
G10 Screw; SET Q16 Pedal Pad
G12 Cover; Hand Arm; Nylon Q17 Clip; Standard
G13 Bushing Q18 Pedal Pad
G18 Washer; Flat Q19 Cover; Stabilizer
G19 Washer; Flat Q20 Screw; Button Head
G20 Screw; Button Head Q20 Screw; Button Head
G22 Swivel Axle Cover; Arm Rest Q21 Screw; Button Head
H05 Screw; Button Head Q22 Side Rail; FRAME
H06 Bushing Q23 Side Cover 2 Hole Bracket
H10 Link Arm Swivel Axle R01 Axle, TRANSIMISSION
H11 Cable Tie; Nylon R02 Magnet; Spare; Single
H12 Link Arm caps; Black R03 Pulley; POLY-V; -NYLON
H13 End-Cap; Seat Pad R04 Flywheel
H14 Logo Label; PEDAL R05 Bearing; Ball
J03 Screw; Flat head R06 Belt; Poly-V; RUBBER
J04 Screw; Socket head R07 Screw; EB
J05 Nut R08 Nut; Hex
J06 Washer R09 Nut; NLK (Nylock)
K03 Screw R11 Key; Round; DUAL-END
TROUSSEHardware Kit R13 Snap Ring; External
mousse Adjustable Foot Pad Nut R14 Fix Plate; Eye Bolt
TROUSSEDocumentation Manual; Assembly R15 Nut; Lock
L01 Stabilizer Set R17 Washer; Flat
L02 Bushing; Move Wheel; BLACK R18 Screw; Button Head
L03 Wheel Set R19 Washer; Flat
L04 Washer; Flat S01 Motor; ECB
L05 Screw; Button Head ECB = Electronic Control Board
L06 Screw; Button Head S02 Tension Cable; ECB
L07 Rivet nut S03 Screw; Button Head
M30 Motor; AC Elevation V02 Logo Label; STABILIZER Cover
M31 Controller; Motor; AC V03 Decorated Label; SIDE Cover
M33 Screw; Button Head V05 Sticker; Warning
N71 Pulse Sensor Set V05 Sticker; Warning
P02 Wire; Console V09 Sales Label
P03 Sensor Wire Vl 2 Sticker; Instruction; L;
P04 Screw; Button Head Vl 2 Sticker; Instruction; L;
P05 Wire; POWER SOCKET SET Vl 2 Sticker; Instruction; L;
P06 Power Switch; Large Vl 2 Sticker; Instruction; L;
P07 Circuit Breaker; 3 A/125 V Vl 6 Sticker; Instruction; R;
P08 Wire; CTRL BOARD PWR; BLACK Vl 6 Sticker; Instruction; R;
P09 Wire; CTRL BOARD PWR; WHITE Vl 6 Sticker; Instruction; R;
P10 Wire; Breaker socket connector; BLACK Vl 6 Sticker; Instruction; R;
P11 ECB Motor Wire Vl 9 Sticker Round; Black
ECB = Electronic Control Board Z01 Screw; Button Head
P13 Tie Strap Adhesive; NYLON66 Z02 Washer; Split
P14 Cable Tie; Nylon; Black Z03 Washer; ARC
P15 Cable Tie; Nylon; 300L; White Z04 Screw; Socket head
P17 Screw; Button Head Z06 Washer; Split
P18 Screw; Truss Head Z07 Washer; Flat
Q01 Side Cover Z09 Screw; Button Head
Q02 Side Cover Z10 Washer; Flat
Q03 Console Mast Boot; Rear Z11 Nut; NLK (Nylock)
Q04 Console Mast Boot; Front Z12 Washer; Wavy Washer
Z13 Washer; Flat
Z15 Screw; Button Head
Z16 Screw; Button Head
Z17 Screw; Button Head
Z18 Screw; Socket head
Z19 Washer; Flat
Z23 Screw; Button Head
Z25 Washer; Flat
Z26 Nut; NLK (Nylock)
Z27 Washer; Flat
Z33 Screw; Button Head
Z34 Washer; Wavy Washer
Z35 Washer; Flat
Z36 Ring; Rubber
Z37 Washer; Flat
