§ After the device has been installed or after longer periods of disuse, the siphons must be manually
filled with coolant lubricant. To make sure: When filling the siphon, there must be fluid coming out of
the bottom hose line or pipe!

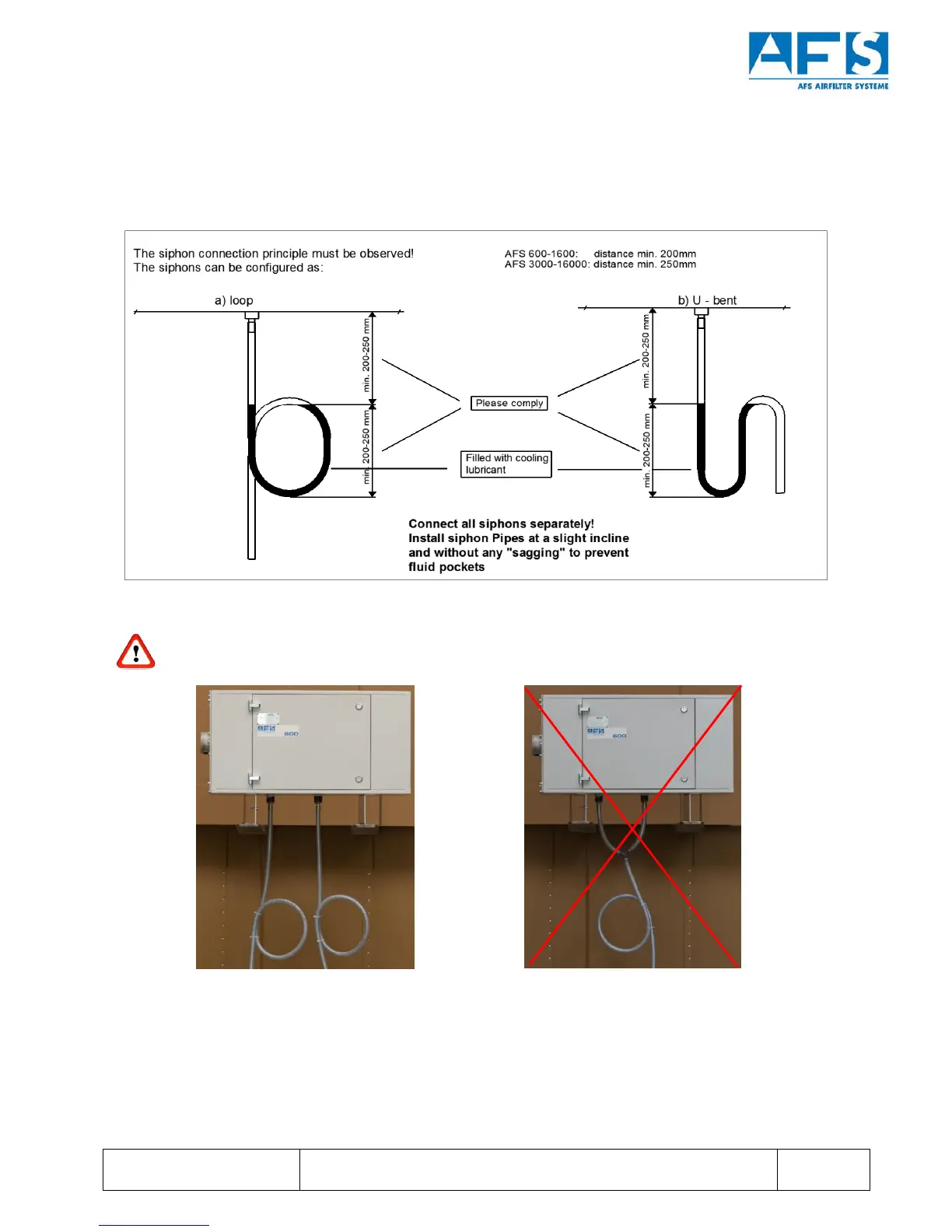

Figure 4: Siphon installation for AFS air purification devices
Once past the siphons, the drain pipes can be joined into one pipe. See Figure 5 and Figure.6
Figure 5: Properly connected
siphons
