afx light BLADE5-FX User Manual

©Copyright LOTRONIC 2017 BLADE5-FX Page 4
CAUTION
Do not allow contact between the common and the fixture’s chassis ground. Grounding the common can cause a
ground loop, and your fixture may perform erratically. Test cables with an ohm meter to check correct polarity and
to make sure the pins are not grounded or shorted to the shield or each other.

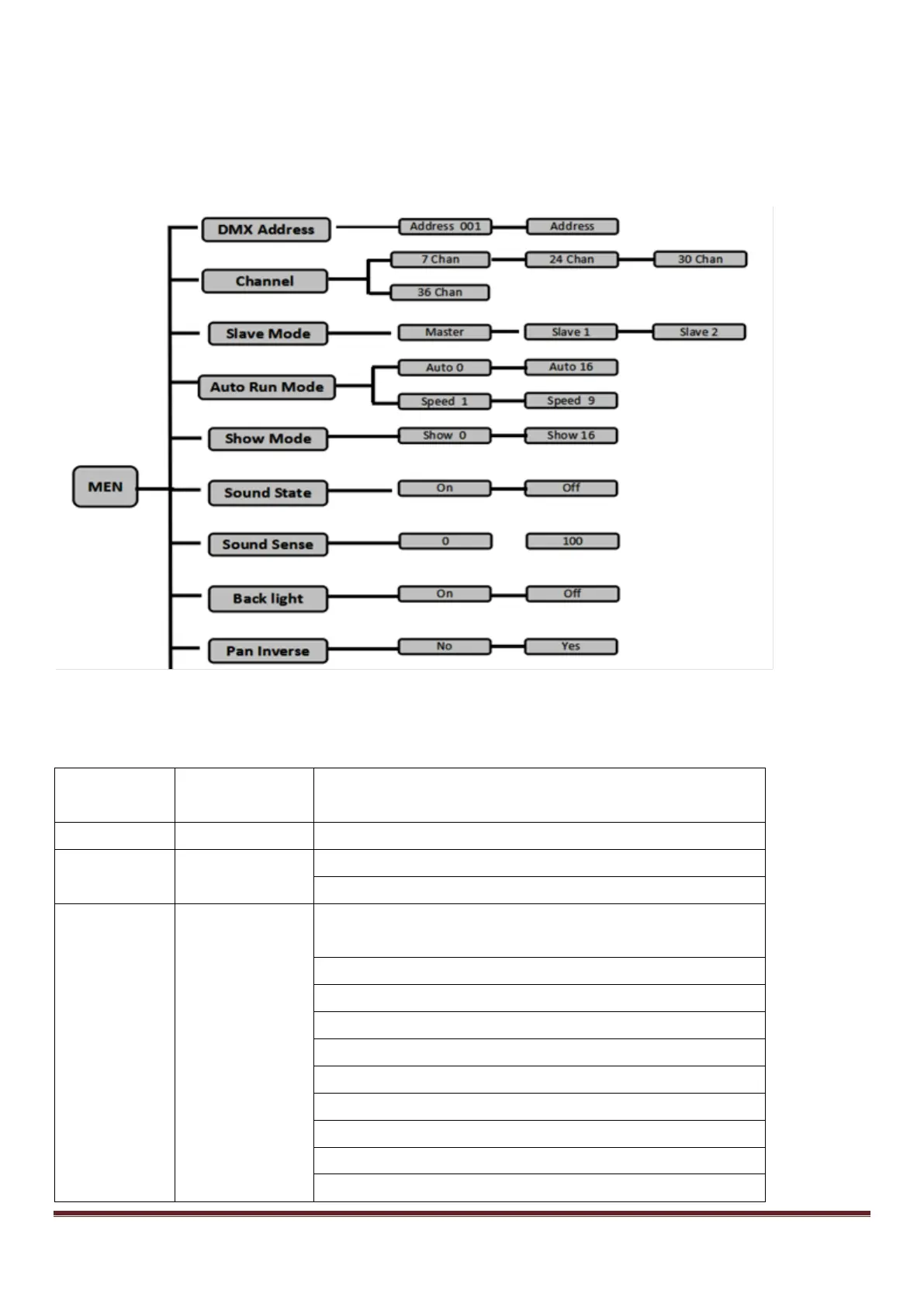

System Menu
DMX Channel Modes
7-Channel Mode
7CH MODE Function Value
1
Dimmer
000-255 0%~100%
2 Strobe
000-007 On
008-255 Strobe from slow to fast
3 Movement
000-007 No function
008-022 Movement 01
023-037 Movement 02
038-052 Movement 03
053-067 Movement 04
068-082 Movement 05
083-097 Movement 06
098-112 Movement07
113-127 Movement 08
128-142 Movement 09

afx light BLADE5-FX Specifications

General

Brand	afx light
Model	BLADE5-FX
Category	Lighting Equipment
Language	English
