Assembly Instructions
Step 5:
Step 6:
Page 10 of 23
This step will require 2 people who
must be wearing gloves and
protective eye wear.

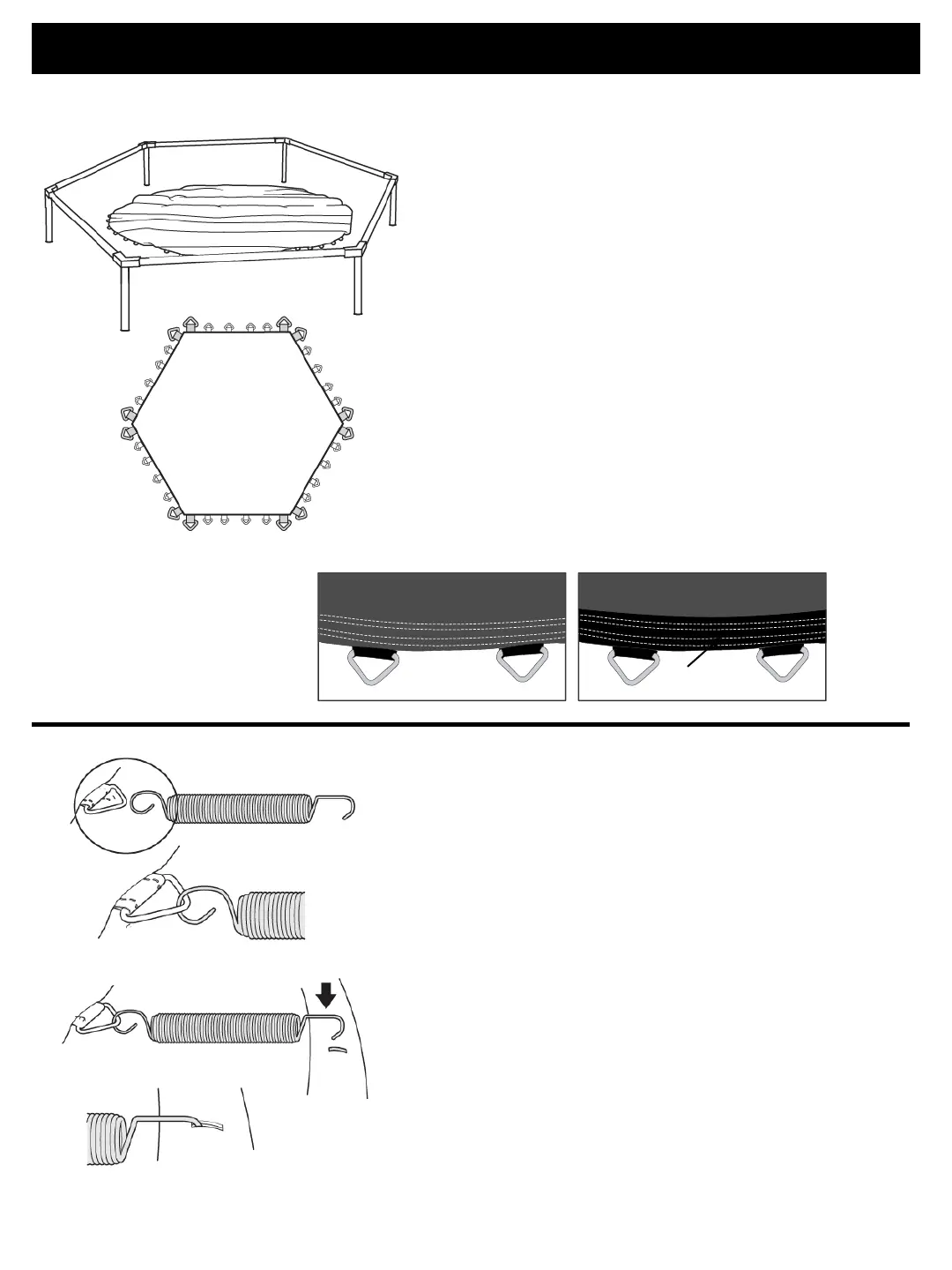

Lay the stitched bed (with the V-
rings) part D out inside the frame of
the trampoline.
Locate the12 V-rings on corners.
These will be at 60º to each other.
Slot one of the springs part E onto one
of the webbing V-rings as shown.
Slot the other end of the spring into one
of the spring slots in the top of the
frame.
IMPORTANT: Springs must be slotted in
the correct direction. The smaller end
will secure to the mat and larger end to
the frame. Ensure all of the springs are
fully inserted into the slots on the frame.
Facing up
With black webbing facing
down
Black webbing
