The direction of movement when you turn clockwise or counterclockwise will change with the position of
the crank handle in the support foot holder (out or in).
• To move the support foot quickly, you must pull the crank handle out of the support foot to the stop
• Up: Turn the crank handle clockwise
• Down: Turn the crank handle counterclockwise
• To move the support foot slowly, you must push the crank handle into the support foot to the stop
• Up: Turn the crank handle counterclockwise
• Down: Turn the crank handle clockwise.

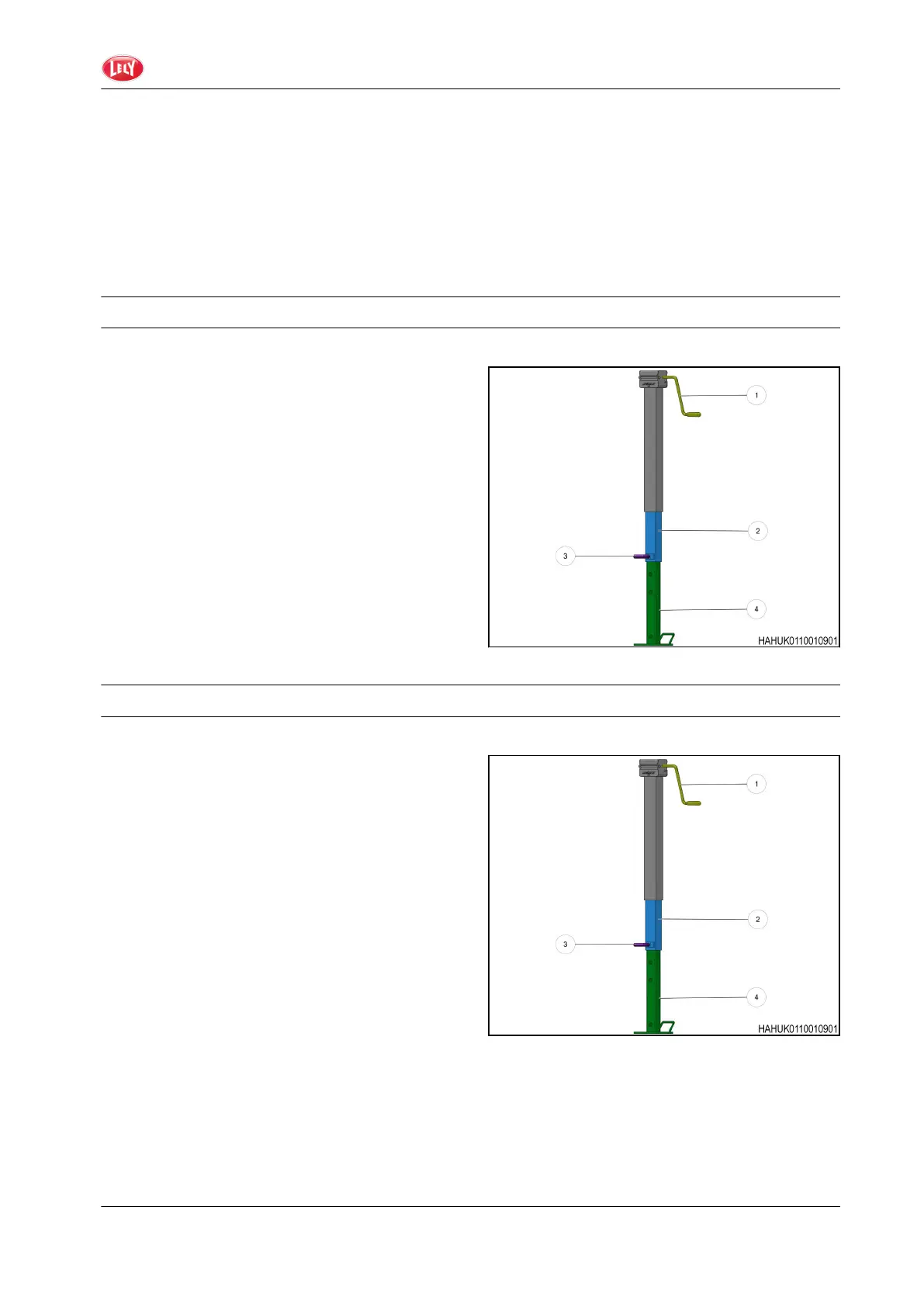

3.6.5 Install the Support Foot
Procedure
1. Make sure that the machine is on solid and
level ground, apply the parking brake and the
wheel chocks are in position on the wheels.
2. Remove the safety bolt (3) from the support
foot holder (4).
3. Manually move the support foot out of the
support foot holder to the necessary length.
4. Install the safety bolt.
5. Put the support foot below the draw bar of
the machine.
6. Turn the crank until the support foot is out.
GUID-DA85AB3C-92DC-4DD1-92DB-AD907F96D8E7-high.jpg [High]
Fig. 53
3.6.6 Remove the Support Foot
Procedure
1. Turn the crank (1) until the support foot (4)
moves to give sucient clearance.
2. Remove the safety bolt (3) from the support
foot holder (2).
3. Manually move the support foot fully into the
support foot holder.
4. Install the safety bolt into the support foot
holder.
GUID-DA85AB3C-92DC-4DD1-92DB-AD907F96D8E7-high.jpg [High]
Fig. 54
