1.4.3 Set the Tailgate Safeguard
Procedure
1. Open the tailgate.
2. Turn the hydraulic tailgate valve to the shut-
o position.

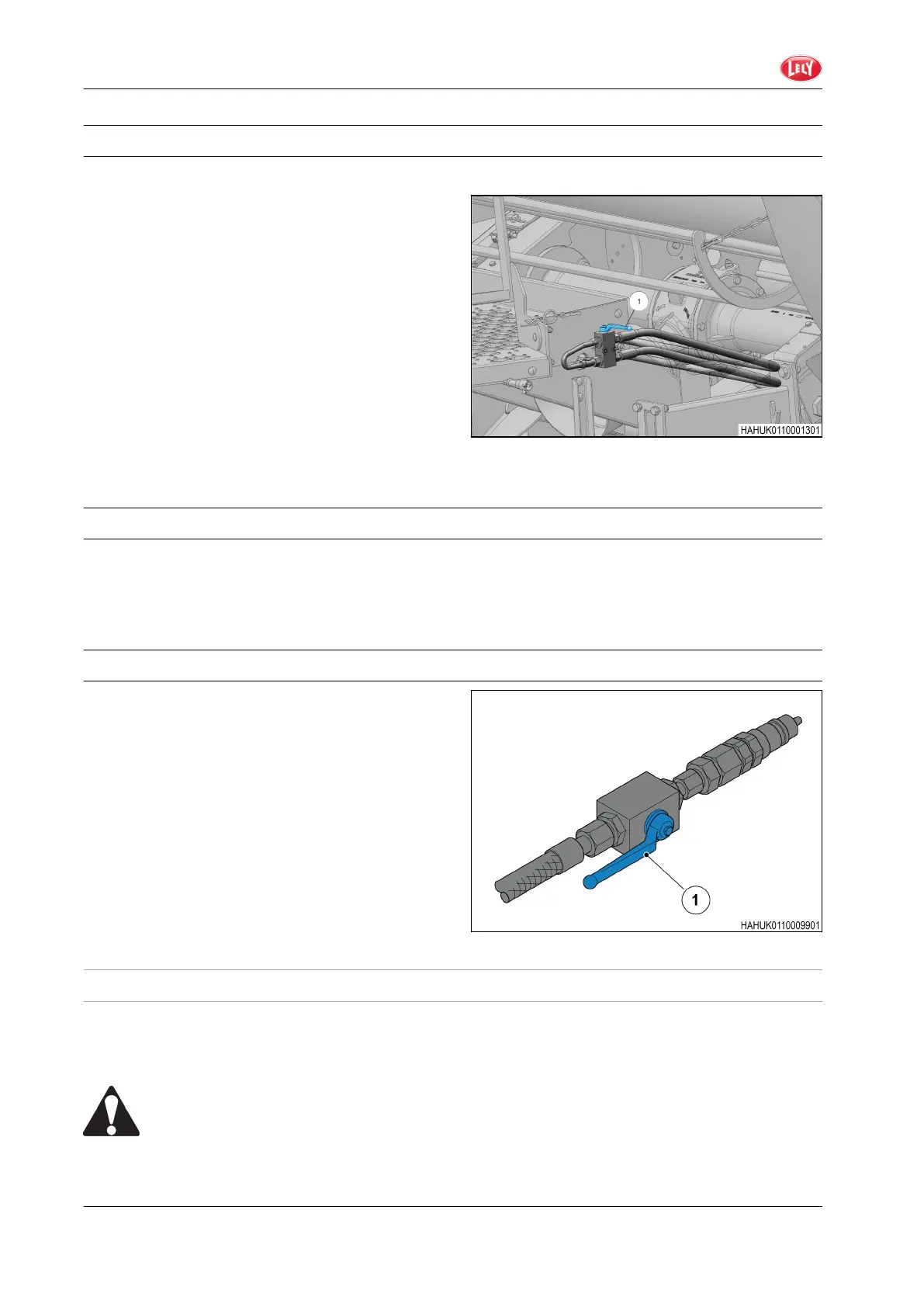

GUID-C48609A9-2383-4517-88C6-EC588EF591FA-high.jpg [High]
Fig. 6
(1)
Hydraulic tailgate valve.
1.4.4 Remove the Tailgate Safeguard
Procedure
1. Turn the hydraulic tailgate valve to the position to let operation occur.
2. Close the tailgate.
1.4.5 Hydraulic Shut-o Valve
The hydraulic hose of the pick-up has a shut-o
valve (1). In the closed position the pick-up will not
lower.
GUID-D28785B9-2C9C-4971-8590-78E8E41DC7F7-high.jpg [High]
Fig. 7
1.4.6 Net Knife Safeguard
The net knife safeguard is a safety chain with a spring clip that attaches to the net knife. It stops unwanted
movement of the net knife during maintenance and when you do work near the net knife.
The net knife safeguard is installed at the rear of the net unit.
WARNING: Risk of injury
Always make sure that you attach the net knife safeguard before you do maintenance or
work near the net knife.
