1.4.9 Pick-up Safeguard
The pick-up safeguard is a safety chain that:
• Stops the pick-up from falling down if the
hydraulic pressure decreases while driving
• Stops the pick-up hitting the ground while
driving on rough terrain.
The pick-up safeguard has two parts, the hook (1)
and the chain (2). During transport, put the
safeguard (left and right) in the shortest position.

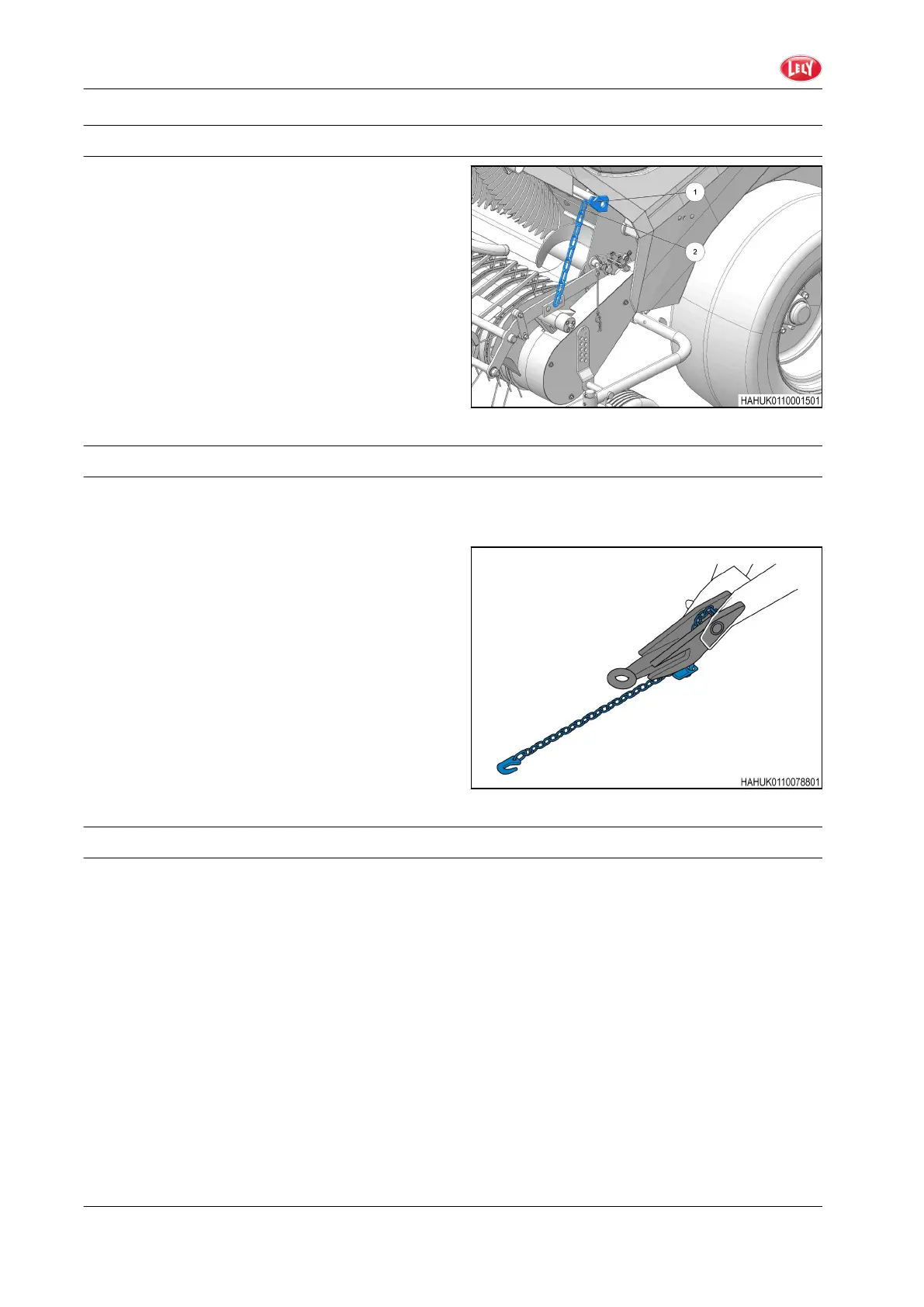

GUID-F844CCC1-66D4-490C-AC56-7165775CA953-high.jpg [High]
Fig. 10
1.4.10 Safety Chain (optional)
The safety chain is a secondary connection for pulled machines. It prevents separation of the machine and
the tractor if the machine disconnects during operation. The use of a safety chain could be necessary by
law in your area. You must obey your local regulations.
To Attach the Safety Chain
Procedure
1. Attach the safety chain to the drawbar and the
hook to a rigid part of the tractor.
2. Make sure that the safety chain is the correct
length to make turns with the tractor and the
machine.
GUID-8F206CE4-C76D-492A-A972-3DD7907310D2-high.jpg [High]
Fig. 11
1.4.11 Film Knife Cover
The film knife cover is a safety cover with a spring clip that attaches to the film knife. It covers the film knife
during maintenance and when you do work near the film knife.
Always make sure that you attach the film knife cover before you do maintenance or work near the film
knife to prevent cuts and injury.
