2.3 Description
2.3.1 General Overview
The machine will make a circular bale in 7 steps:
1. Pick-up the loose crop material with the pick-up unit.
2. Cut (if necessary) and transport the material into the compressing chamber.
3. Compress the material and shape the bale.
4. Tie the bale.
5. Open the tailgate and eject the bale on to the wrapper table.
6. The bale is then wrapped.
7. The wrapped bale is then ejected.
Steps 1 - 3, are continuous when the tractor drives. The tractor must stop when the tying starts in step 4.
The tractor and machine must not move to eject the bale in steps 5 - 7.

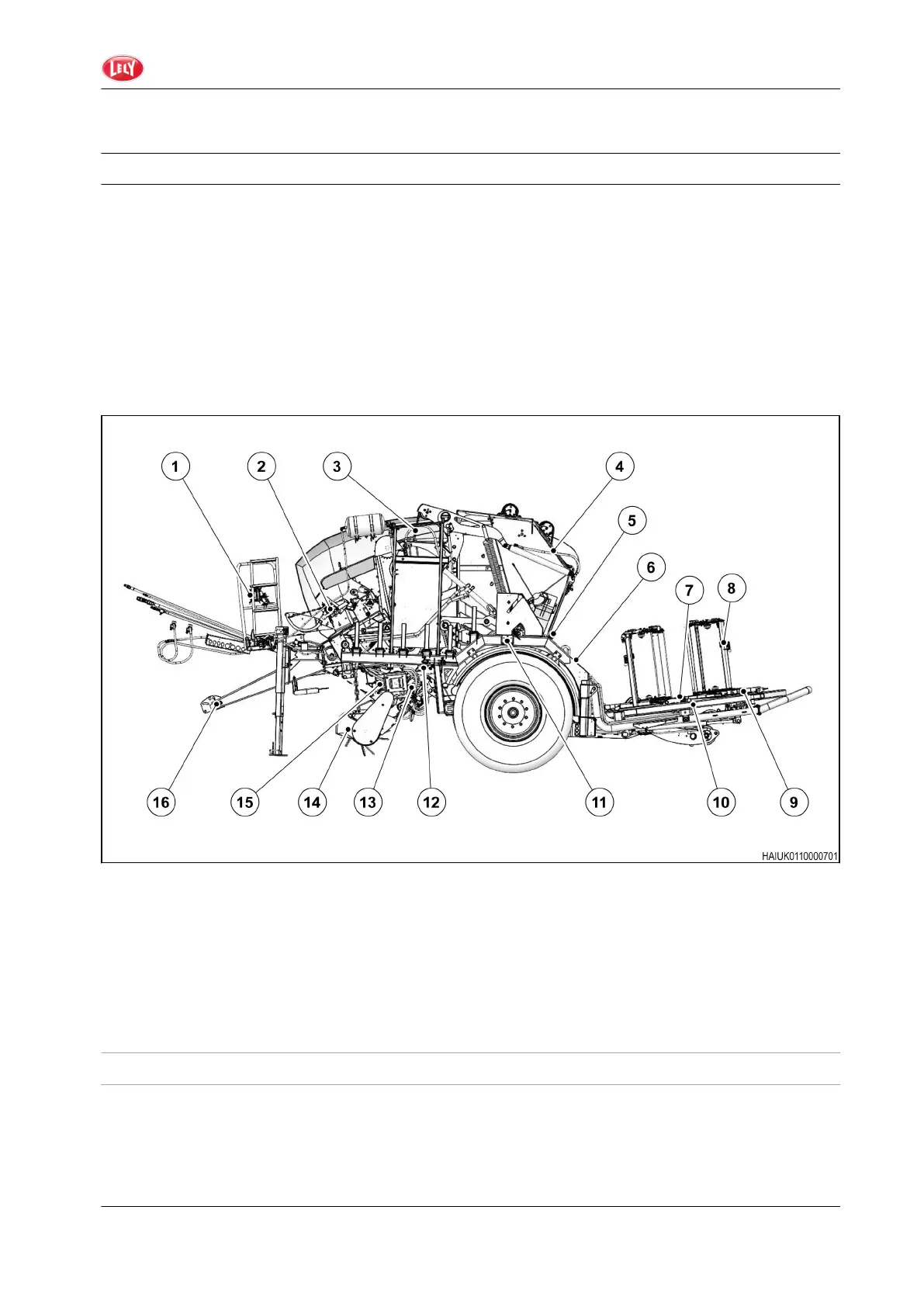

GUID-77287CB9-03B3-42BE-8C8A-5C95195A8E62-high.jpg [High]
Fig. 2
(1)
Controller.
(2) Tying unit.
(3) Bale chamber.
(4) Tailgate.
(5) Camera.
(6) Bale transfer.
(7) Wrapping table.
(8) Stretch unit.
(9) Film collector.
(10) Wrapping ring.
(11) Keyboard.
(12) Feed channel floor.
(13) Cutting unit.
(14) Pick-up unit.
(15) Feed rotor.
(16) Drawbar.
2.3.2 Drawbar
The machine has a selection of drawbar heads:
• Ball head 80 mm (3.2 in) (ISO 24347)
• Fixed towing eye 40 mm (1.6 in) (ISO 8755)
• Turnable towing eye 35 mm (1.4 in) (ISO 5962-3).
