2. Lower the support foot until the machine is in a horizontal position. The machine is horizontal when
the support foot holder has an angle of 90° to the ground. Make sure that the support foot is vertical
and the axle plates are in a horizontal position.
3. Remove the bolts (4) and the locking plates
(3) from the two sides of the machine.
4. Remove the weight o of the drawbar front
end with an applicable lifting device with a
lifting capacity of > 150 kg (331 lb).
5. Loosen the bolts (5) from the two sides of
the machine.
6. Loosen the bolts (9).
7. Use the lifting device to lift the draw bar to
the necessary height, make sure that the
draw bar aligns with the hitch pin of the
tractor.
8. Tighten the bolts (5) finger tight on the two
sides and make sure that the teething is
correct on the toothed flanges (1).
9. Tighten the bolts (5) with the correct torque
on the two sides of the machine.
10. Install the locking plates (3) with the bolts (4)
on the two sides of the machine.
11. Adjust the bolt (6) until the drawbar head is in
a horizontal position.
12. Tighten the bolts (9).

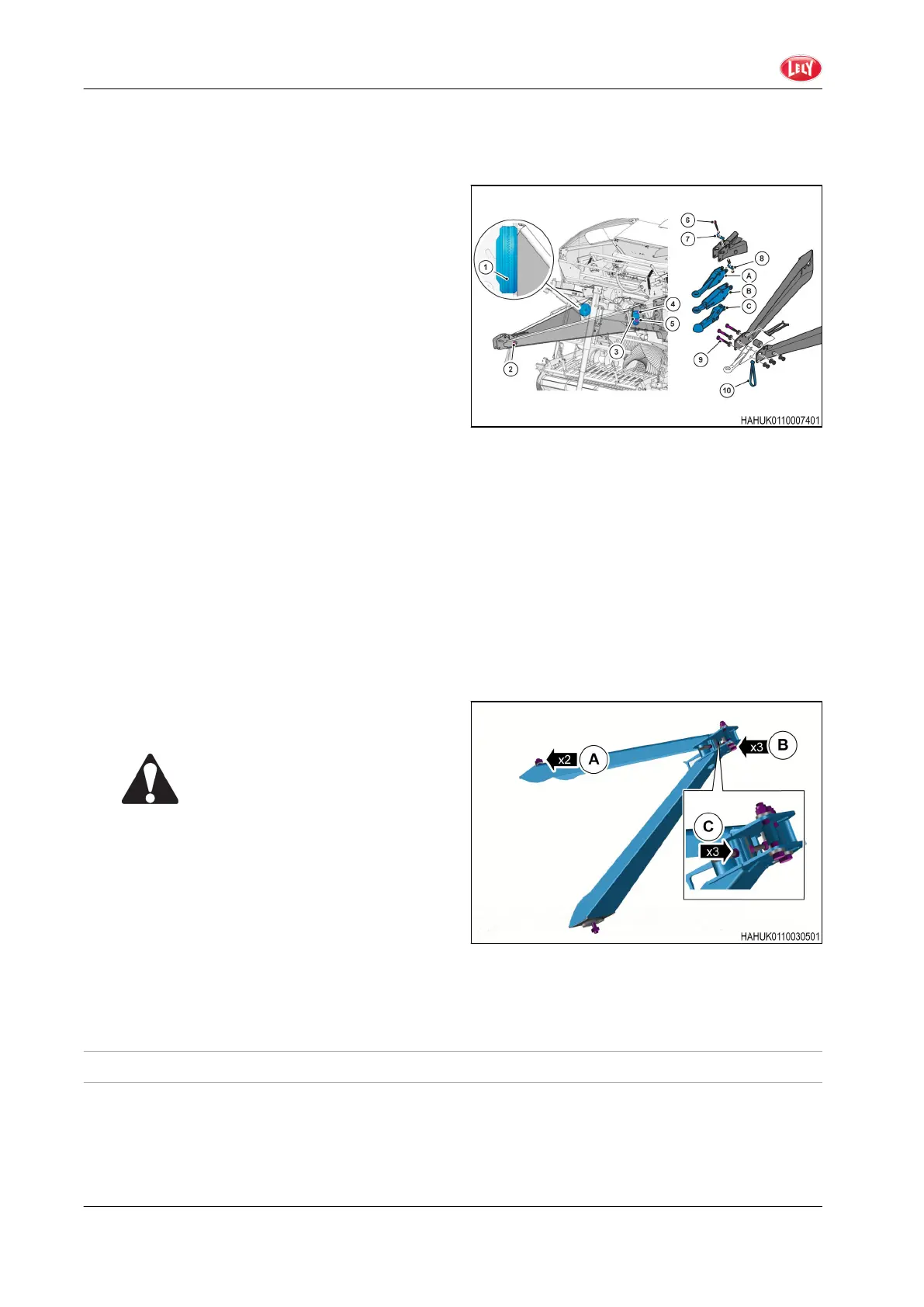

GUID-FE76DD6E-F458-41D6-98E7-F1C174868B5C-high.jpg [High]
Fig. 2
(1)
Toothed flange.
(2) Hole.
(3) Locking plate.
(4) Bolts.
(5) Bolts.
(6) Bolt.
(7) Pin.
(8) Pin.
(9) Bolts.
(10) Strap.
(A, B, C) Types of drawbar head.
13. Connect the drawbar of the machine to the
tractor.
CAUTION:
Obey the torque data on the
decal! Use new nuts and bolts
each time you loosen the safety
nuts and bolts.
GUID-DC62716A-1AF6-46DB-8932-15DD7954C214-high.jpg [High]
Fig. 3
(A)
1500 Nm (1107 lbft).
(B) 400 Nm (295 lbft).
(C) 120 Nm (89 lbft).
3.1.4 Adjust the Power Take-O (PTO) Shaft
Before starting the procedure
There is an automatic safety clutch installed on the drive shaft of this type of machine.
GUID-7D6A1FA6-32D3-45D9-8694-ECA255686BE2 [V1]
3. Operation
68 Baler Wrapper Combination
4900.LE.EN01
