3.1.15 Calibration of Wrapper Parts
Before starting the procedure
WARNING: Warning risk of Injury.
A person can get seriously injured when parts of the machine and the wrapper move.
Make sure that no persons are behind the machine and the wrapper when you operate
parts of the machine with the keyboard. Stop the Power Take-O (PTO) but keep the
tractor engine running for hydraulic operated movements with the keyboard.
On the E-Link Pro go to the page "Adv. Menu > Calibration > Wrapper".
Procedure
1. Select the first line.
2. Open the tailgate.
3. Push the button
.
4. Follow the instructions on the screen and push the button to confirm.
5. Select the subsequent line.
6. Do steps 4 to 6 for each line until all the calibrations are done.
7. Close the tailgate.

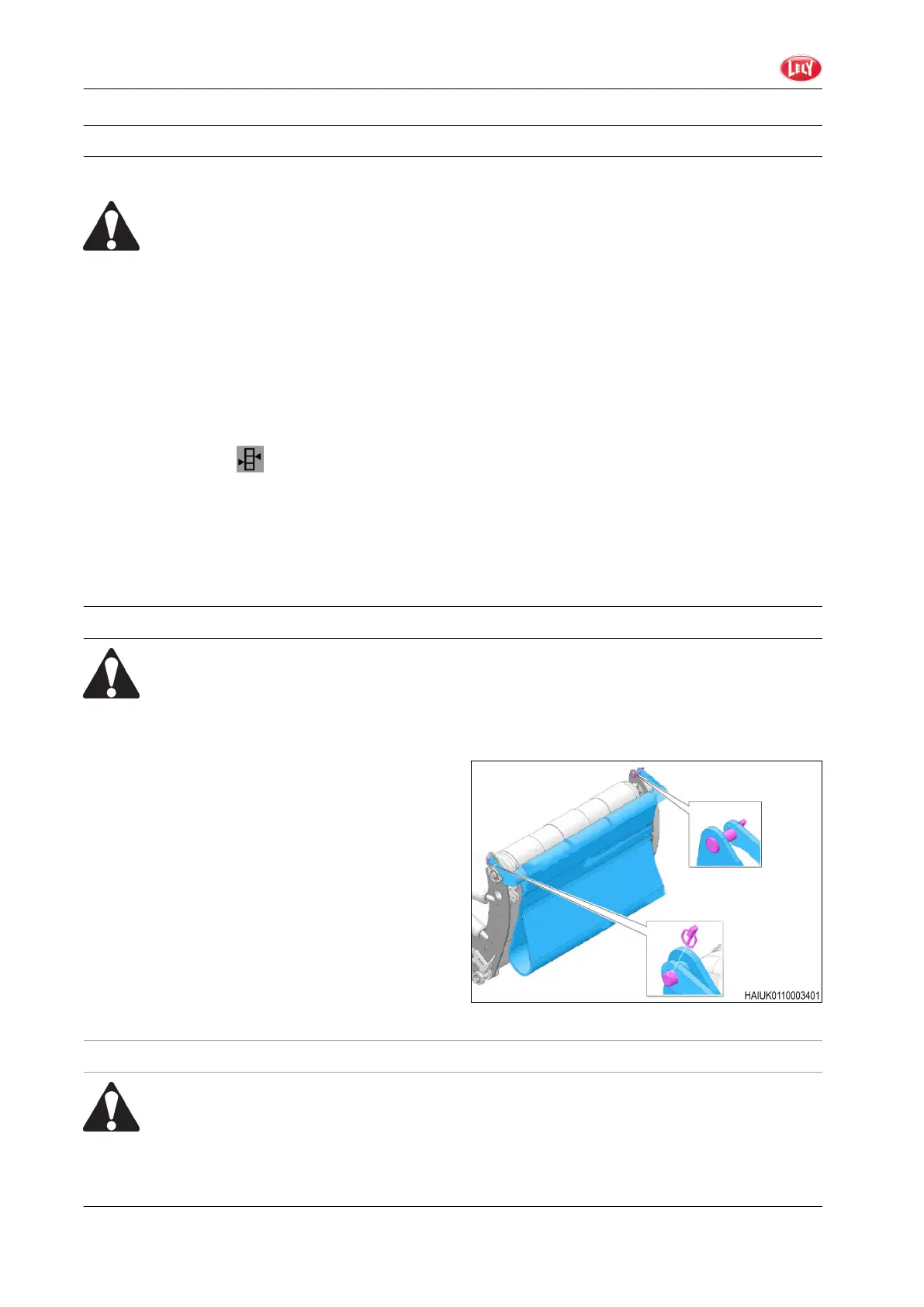

3.1.16 Install the Bale Mat (optional)
WARNING: Heavy Load
The bale mat can be heavy (>30 kg)
Install the bale mat with two persons
Procedure
1. Put the wrapper in the operating position.
2. Install the bale mat with the clips on to the
wrapper.
GUID-A8DD8922-6288-471D-90D4-B6C257CC91CD-high.jpg [High]
Fig. 13
3.1.17 Install the Bale Tipper (optional)
WARNING: Heavy Load
The bale tipper can be heavy (>30 kg)
Install the bale tipper with two persons
GUID-2FFE9FEC-8B18-43EE-B480-FC33BC9E42A4 [V1]
GUID-47224C4C-4D18-4133-8F4D-90FAE6868335 [V1]
GUID-A0662E21-6D3A-442D-AE71-EA76CB94A0EE [V1]
3. Operation
78 Baler Wrapper Combination
4900.LE.EN01
