3.3.1 Transport Position of the Bale Mat (optional)
Procedure
1. Make sure that the machine is correctly connected to the tractor.
2. Make sure that no person is in the danger zone.
3. Start the tractor engine, on the controller go to the page “Adv. Menu > Manual Control”.
4. Make sure that the wrapping table is in the work position (down), use the line “Table tilt”.
5. Stop the tractor engine and remove the key.
6. Fold up the mat and attach the mat with the pins to the wrapping table.

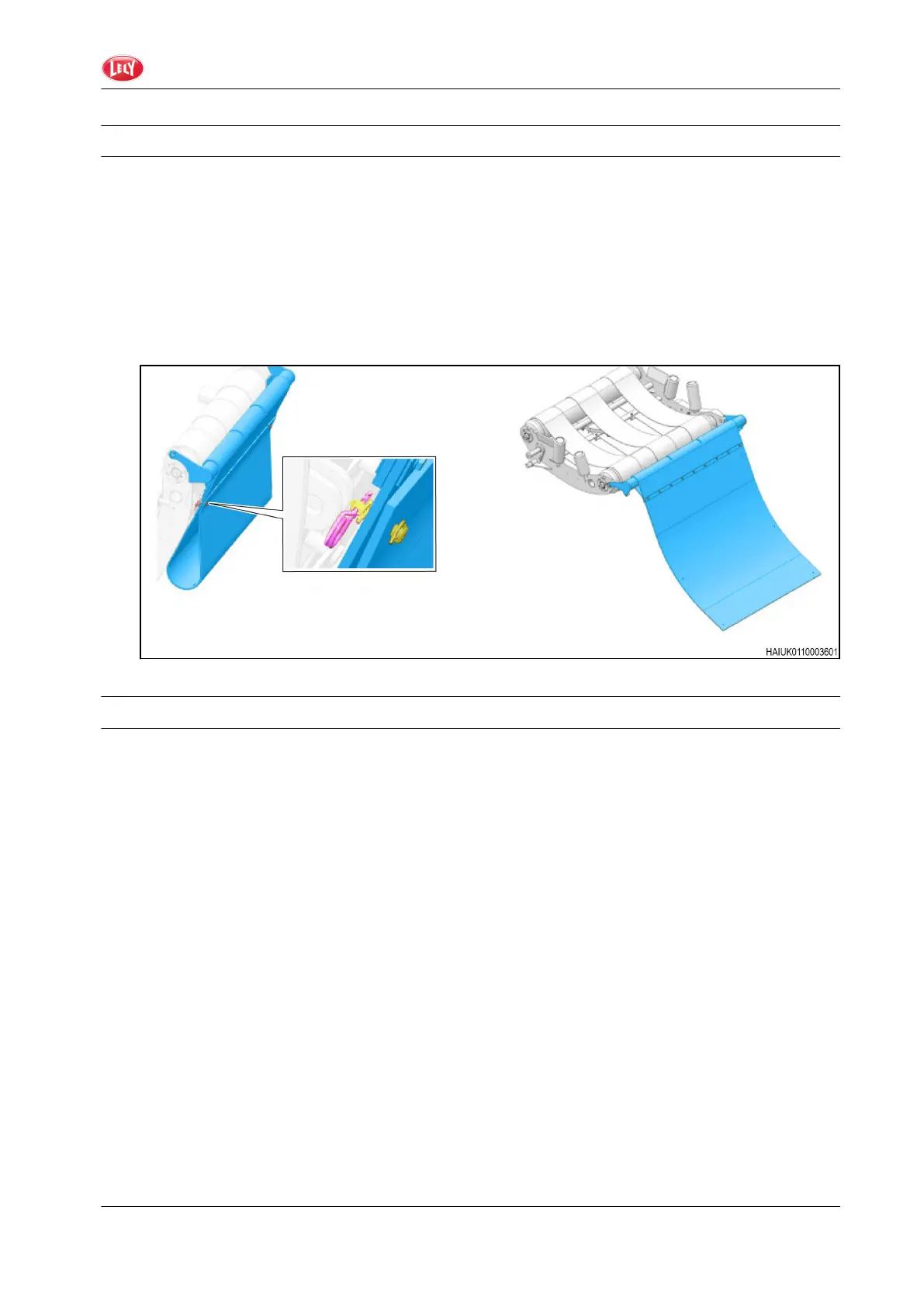

GUID-FE199525-79B2-4230-B8E2-1EBD2F785A18-high.jpg [High]
Fig. 23
3.3.2 Transport Position of the Bale Tipper (optional)
Procedure
1. Make sure the machine is correctly connected to the tractor.
2. Make sure there is no person in the danger zone.
3. Switch on the tractor engine, on the controller go to the page “Adv. Menu > Manual Control”.
4. Make sure that the wrapping ring is up, use the line “Ring frame height”.
5. Make sure that the wrapping table is in the release position, use the line “Table tilt”.
6. Stop the tractor engine and remove the key.
7. Remove the brackets from the bale tipper and install them with the clips and bolts between the bale
tipper and the wrapping table.
GUID-C758BE41-6E2E-44F1-8557-B4EC8EA80801 [V1]
GUID-D2499D69-B299-4738-8FB0-57956EFA43AE [V1]
3. Operation
Baler Wrapper Combination 85
