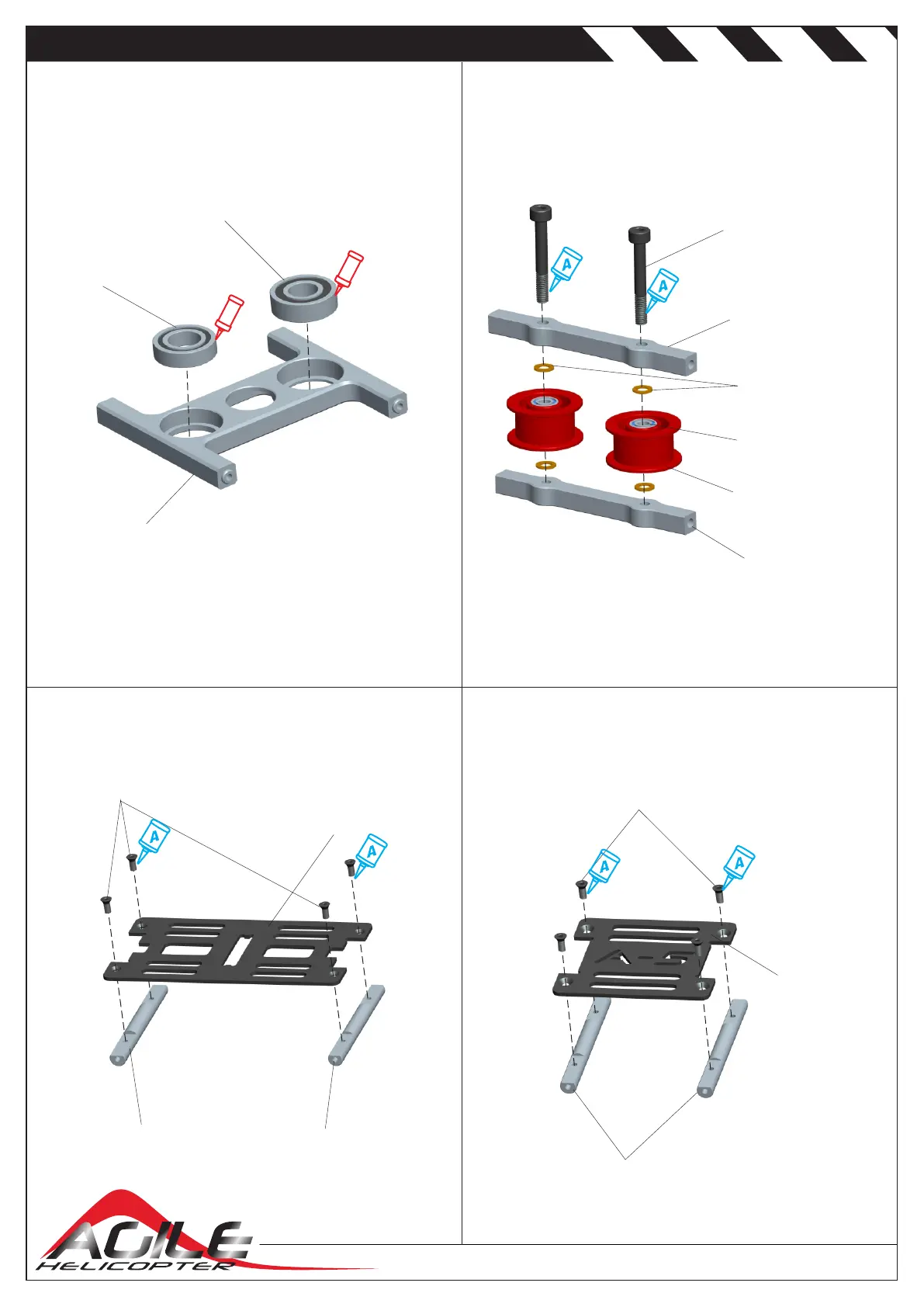

7.组装说明 ASSEMBLY SECTION
轴承
Bearing
φ9Xφ20X5
主轴轴承 下座
Servos under mount
轴承
Bearing
φ10Xφ19X5
B
B
沉头内六 角螺丝
Countersunk head socket screw
M2.5* 6
机身连接 板
CF Frame connection plate
Battery tray fixed column
电池板固 定柱子
侧板连接 柱
Frame connecting bolt
侧板连接 柱
Frame connecting bolt
沉头内六 角螺丝
Countersunk head socket screw
M2.5* 6
机身连接 板
CF Frame
connection plate
杯头内六 角螺丝
Hexagon socket head
cap screws
M3X22
轴承
Bearing
φ3Xφ7X3
垫片
Washer
3X5X0.5
皮带压轮
Belt wheel
皮带压固 定座
Belt wheel mount
皮带压固 定座（有螺 牙）
Belt wheel mount (with threaded)
