4Installation
Hardware Installation
Installing the Pressure Release Kit

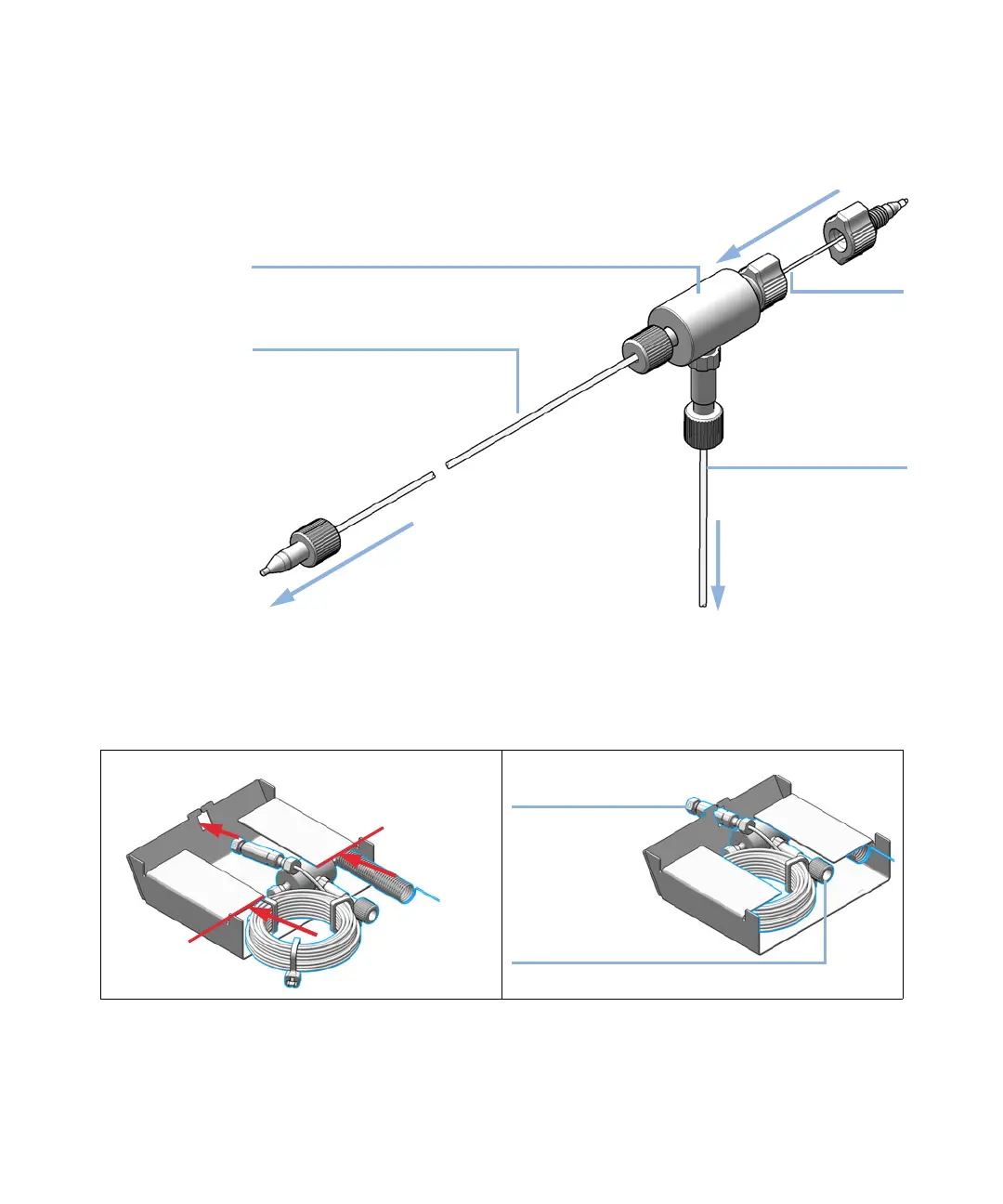

Figure 41 Connections to the pressure release kit
5500-1240
5500-1245
5500-1227
Capillary ST 0.17x105 SL/SL
Capillary ST 0.17x150 SL/SL
Capillary
ST 0.17x400 SI/SI
To 2D-LC valve (Valve port 3)
From DAD cell out
To damper capillary
T-piece
Parts required # p/n Description
1 G4236-60010 2D-LC Pressure Release Kit
1 Push the pressure release valve assembly in the frame. 2 Take care for the correct orientation.
to T-piece
to waste
(inline with
the detector)
