Agilent Technologies 54624A Service Guide

6-15
Replacing Assemblies
To remove the keyboard assembly
To remove the keyboard assembly
1 Remove the front panel.
2 Remove all of the knobs by pulling them straight out.
3 Using the T10 TORX driver, remove the four screws from the keyboard
shield.
4 Lift the ribbon cable end of the small keyboard and simultaneously slide
the small keyboard toward the main keyboard to remove.

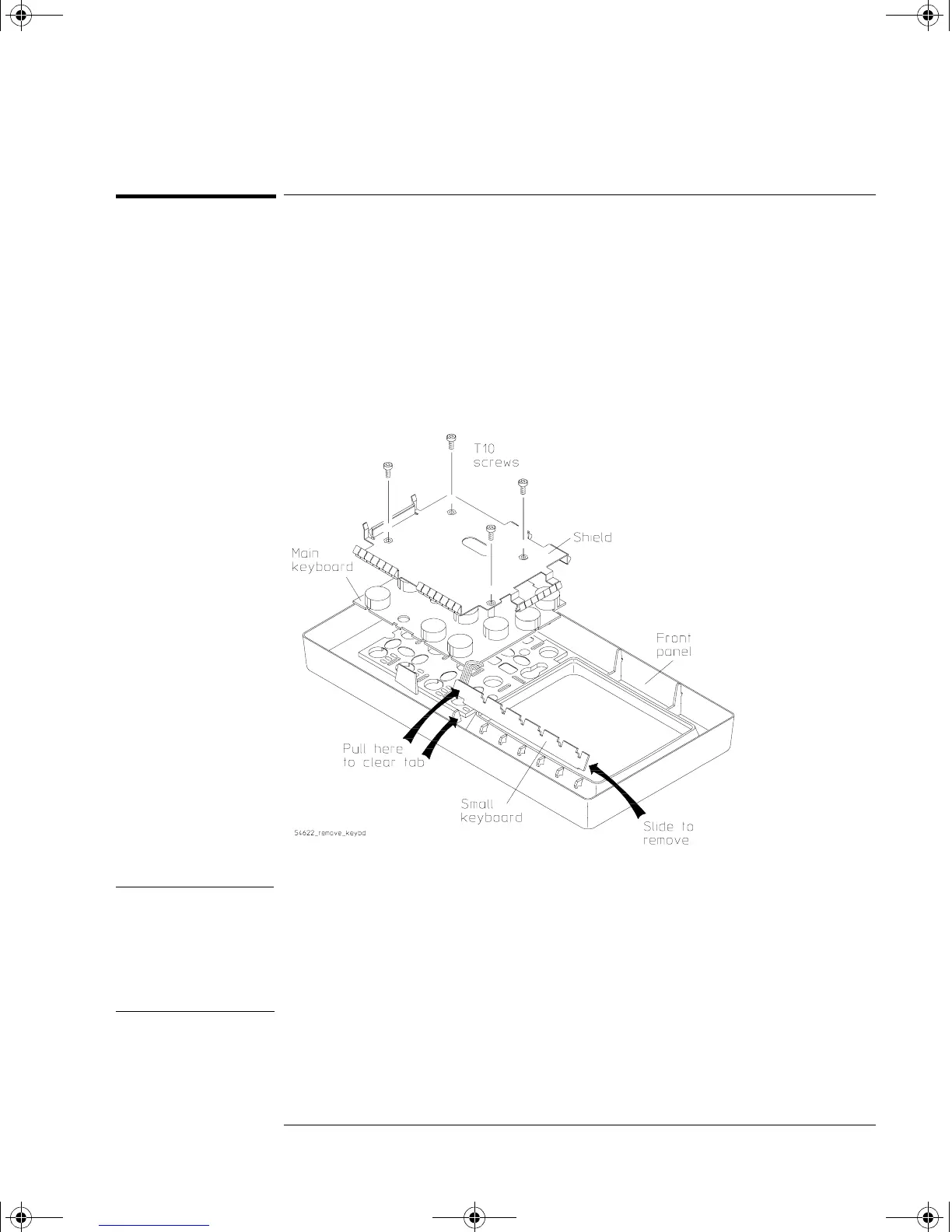

Figure 6-12
Removing the keyboard assembly
CAUTION USE CORRECT SCREWS TO AVOID DAMAGING FRONT PANEL
LABEL!
When you re-install the keyboard, you must re-insert the screws you removed
in this step. If you re-insert screws that are longer, they can damage the front
panel label.
5 Lift the keyboard assembly straight out.
service.book Page 15 Wednesday, December 18, 2002 8:35 AM
