Chapter 7 309
Replacing Major Assemblies
RF Assembly
15.Carefully remove the RF assembly from the analyzer.
NOTE To disassemble or assemble the RF assembly, refer to the Foldouts at
the end of Chapter 12. Chapter 11 provides cable location information
for the RF assembly and the tracking generator assembly.

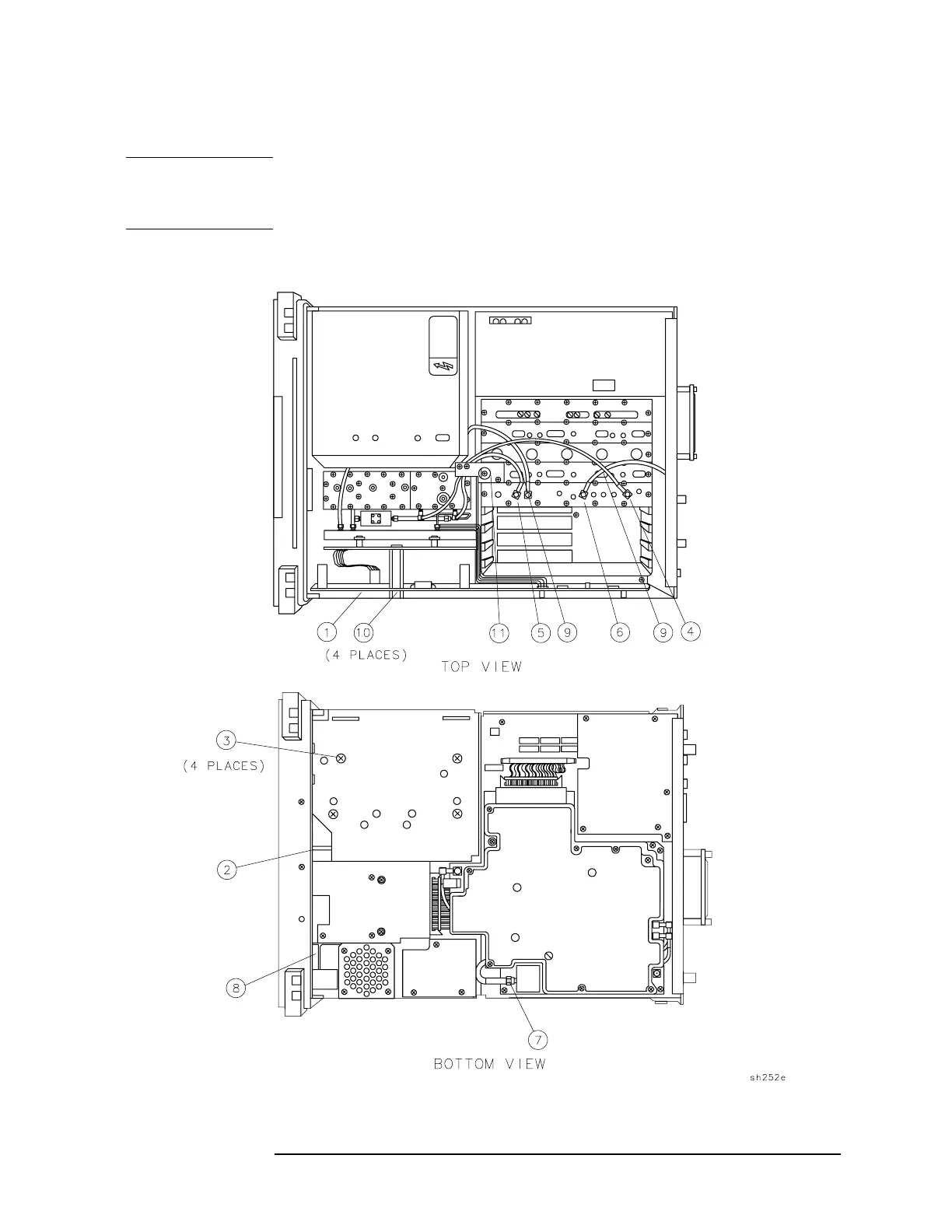

Figure 7-5 RF Assembly Replacement
