Chapter 11
459
Major Assembly and Cab
le Locations

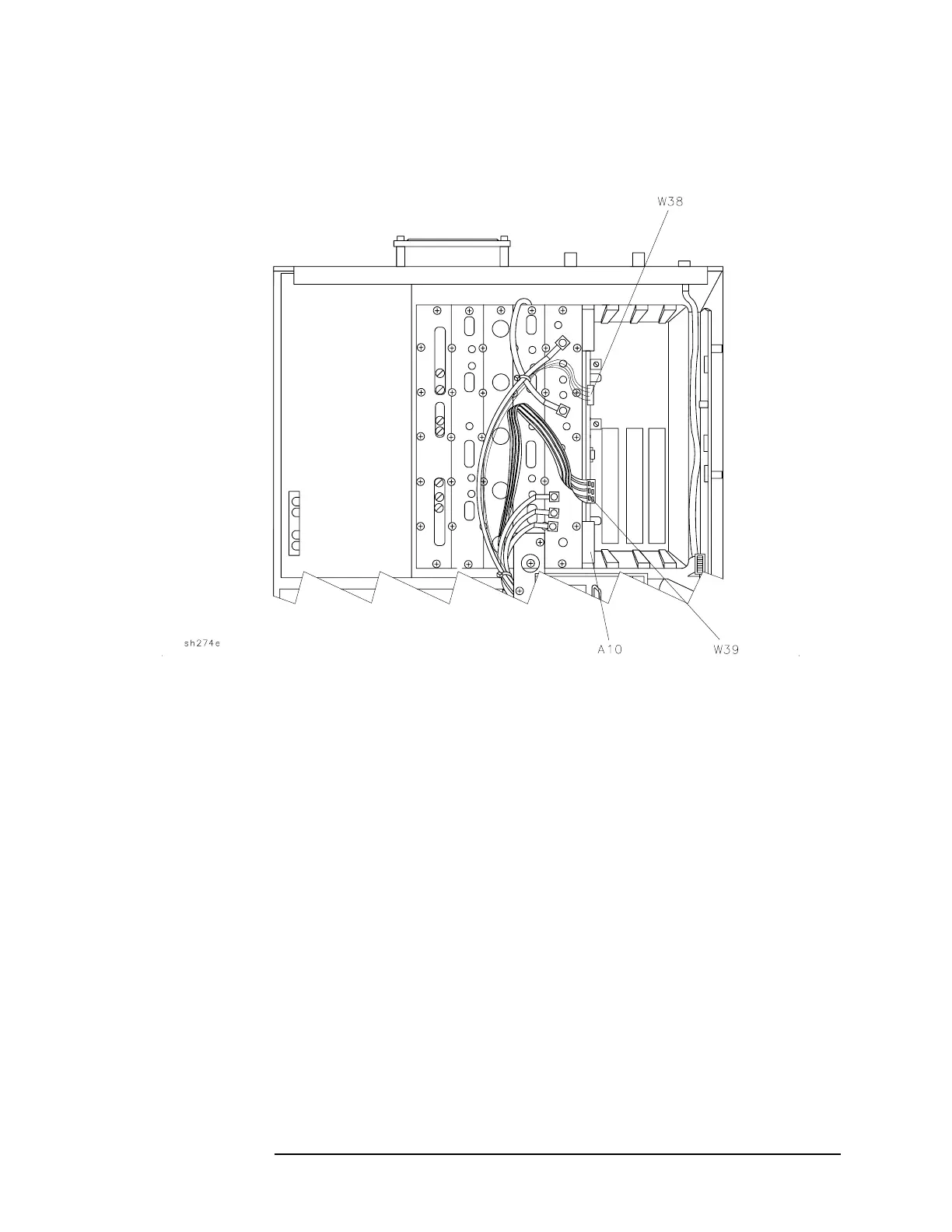

Major Assembly and Cable Locations
Figure 11-6
Figure 11-6
Card-Cage (Options 009, 010)
8593E,
8594E,
8594Q,
8595E,
and
8596E
