AGUSTA A109E - Page 294

0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 17
0
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
INDICATED AIRSPEED - KTS
CALIBRATED AIRSPEED - KTS

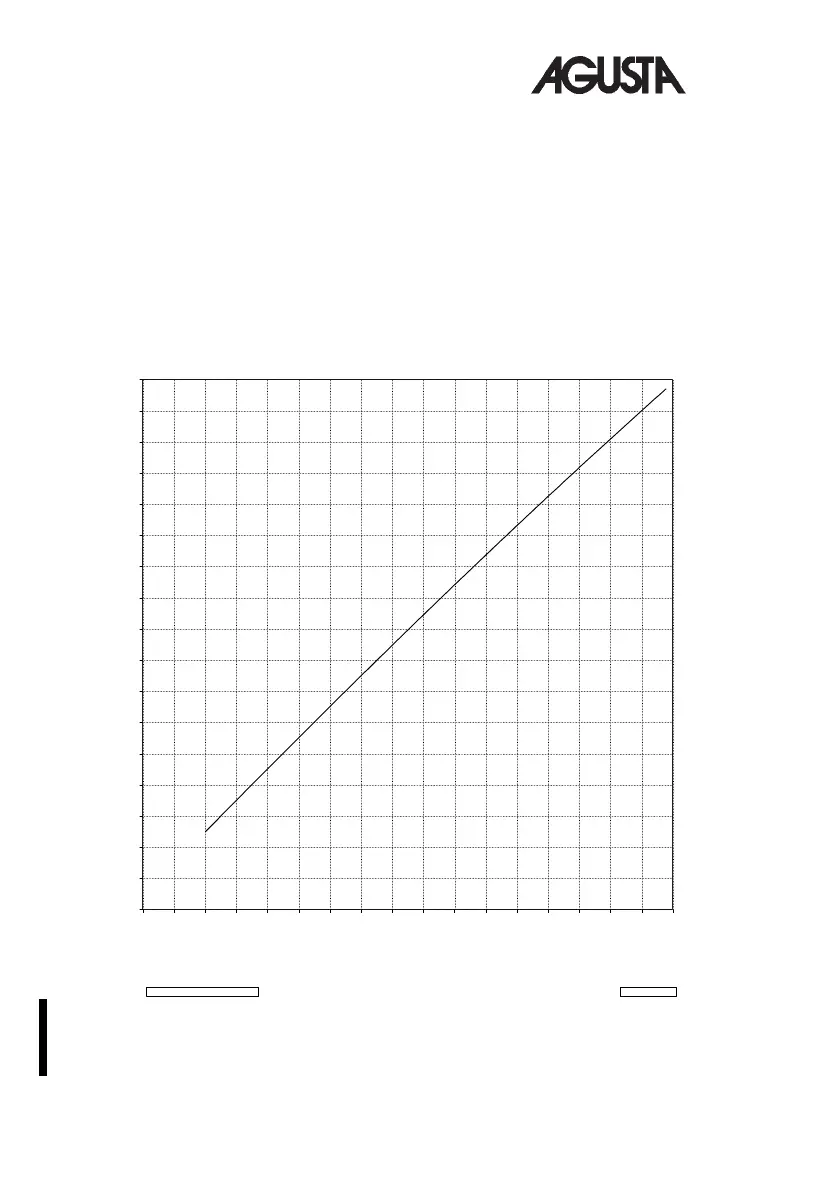

AIRSPEED CALIBRATION CURVE
COPILOT
(FORWARD FLIGHT)
RPT 109-60-99/II REV A ABHD034A
Figure 4-24. Airspeed calibration curve copilot (forward flight).
Page 4-35 and 4-36 DELETED.
