Solution:
- Add 35 ft of minimum clearance to known obstacle height (50 ft) to
obtain the Minimum Height (85 ft) on takeoff path.
- Enter table 2-1 with Minimum Height (85 ft) to obtain the
corresponding TDP height: if the Minimum Height results to be
between two values (in this example 70 ft and 90 ft) refer to the
highest value (90 ft).
In this case the TDP height is 200 ft.
APPROACH AND LANDING
LANDING ON HELIPAD
(Fig 2-9)
Altimeter : Set the known QFE.

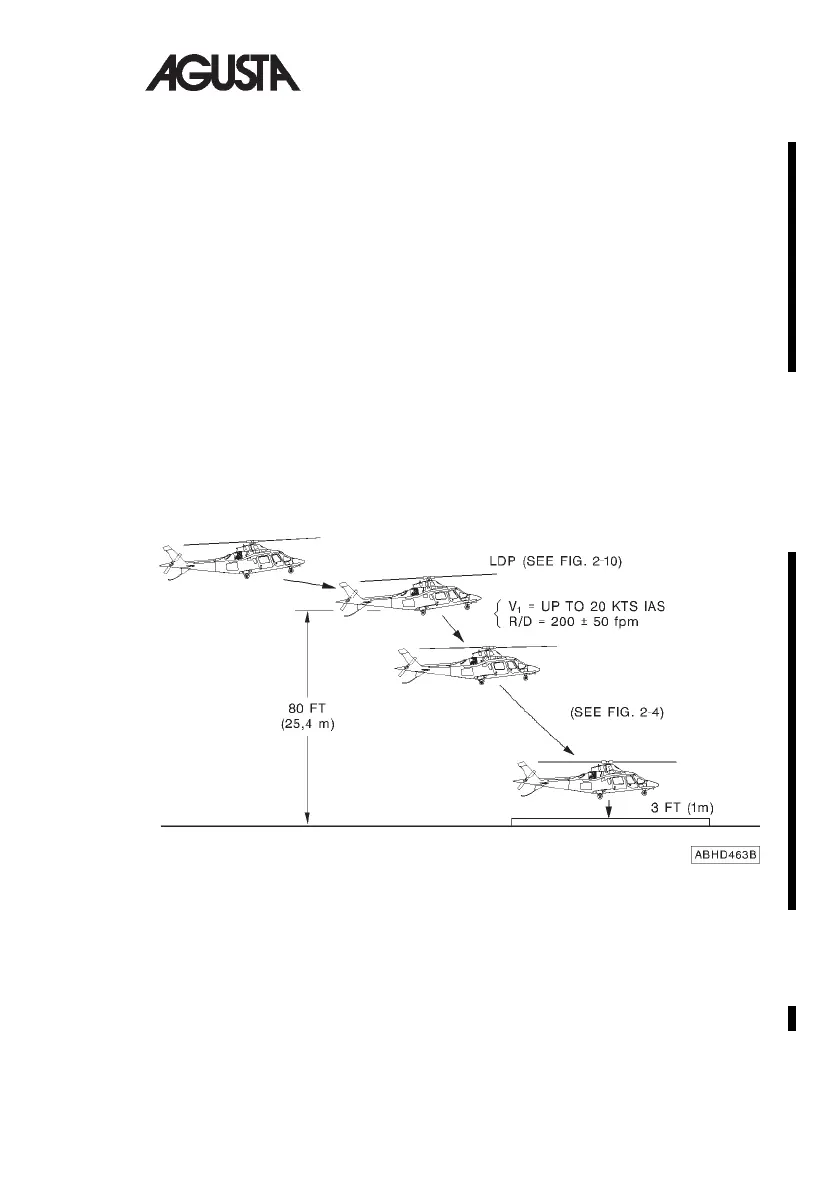

Figure 2-9. Landing profile on helipad.
