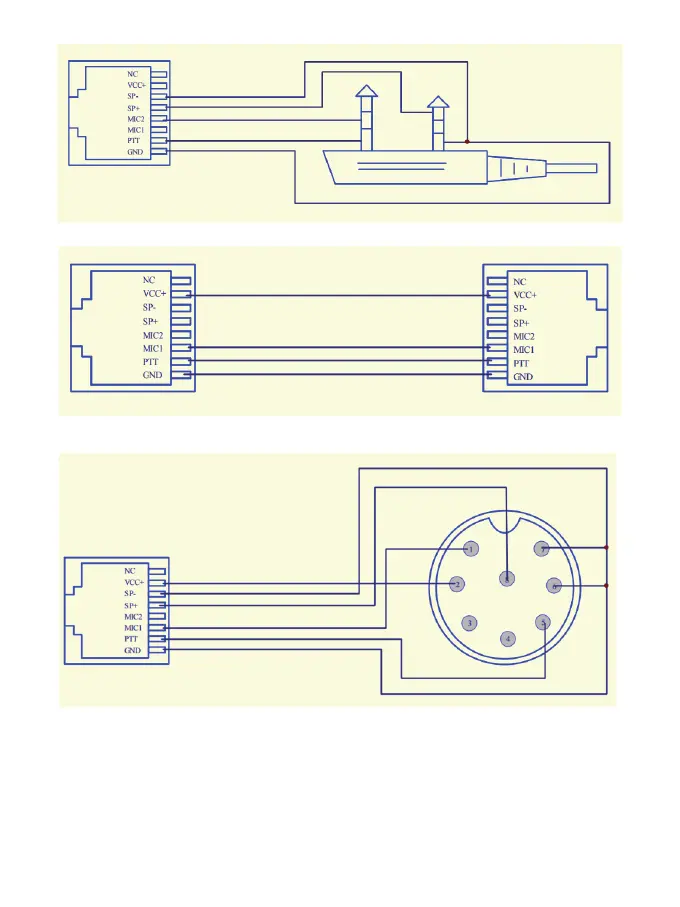

2. RJ45 to ENWOOD 2-Pin, as defined below:
3. RJ45 to RJ45, as defined below:
4. RJ45 to standard 8Pin circular, as defined below:
Technical specifications
Microphone Type: Unidirectional electret condenser microphone (built-in preamplifier)
MIC impedance: 2.2KΩ
Sensitivity: -36±2dB（0dB=1v/pa.1kHz）
Signal-noise ratio: 60dB
Cable length: about 2M,3 ft 3 3/8 in
Dimension: 136*100*40mm (not include microphone assembly height)
Weight: about 450g, 12.3 ounce.
The specification in this manual is subject to change without notice and incur obligations.
