Wiring connection

For Pectel T2 and T6 ECUs, it is possible to connect to AiM devices through the front male connectors.

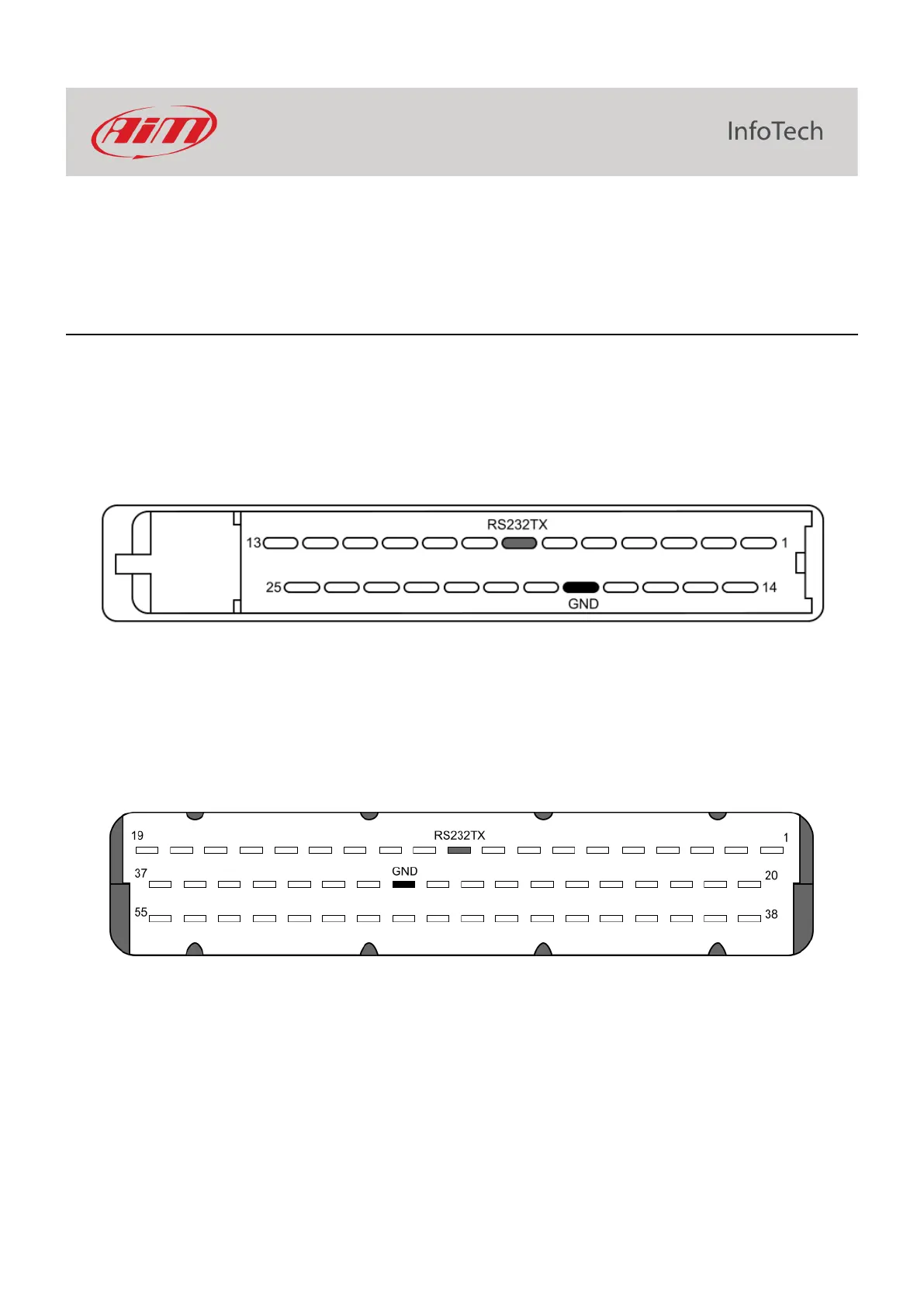

Here below you find each ECU connector pinout and connection table.

Pectel T2 ECU

Front connector pin Pin function AiM cable

7 RS232TX RS232RX

18 GND GND

Pectel T6 ECU

Front connector pin Pin function AiM cable

10 RS232TX RS232RX

30 GND GND
