Model;

IER-2,

Call extension speaker

INSTALLATION & OPERATION MANUAL

- 1 -

FK1829 0709

1 SYSTEM OUTLINE & COMPONENTS

Precautions on Installation

CAUTION

2 NAMES & FEATURES

CALL EXTENSION

PACKAGE CONTENTS

Call extension Speaker (IER-2)

Packet of screws

Installation & Operation

Manual

FEATURES

Announces a call tone. No communication.

One speaker for the master (or sub) station.

Volume adjustment to 3 positions.

Surface-wall single-gang mounting.

The IER-2 is a call extension speaker for hearing a chime

tone in a location remote from the master or sub station.

The chime is the same from the IER-2 as is emitted from

the intercom, and it is equipped with a 3-position volume

switch. There is no reply from the IER-2.

In order that the product can be used safely and properly, please observe the following Precautions.

(

Negligence could result in injury or damage to property.

)

Mount IER-2 in a convenient location, but not where it could be bumped or jarred.

Do not install or make any wire terminations while power supply is plugged in. It can cause electrical

shock or damage to the unit.

Do not install IER-2 in any of the following locations, as it may cause the system to malfunction;

High or extreme cold temperature area:

under direct sunlight, near equipment that varies in temperature, in front of air conditioner, inside a refrigerated area,

etc.

Places subject to moisture or humidity extremes (bathroom, cellar, greenhouse, etc.)

Places subject to environmental conditions, such as oil, dust, chemicals, salt, etc.

Places subject to steam or smoke (near heating equipment or cooking surfaces)

IER-2

Speaker

Screw hole (x2)

Call tone volume

control

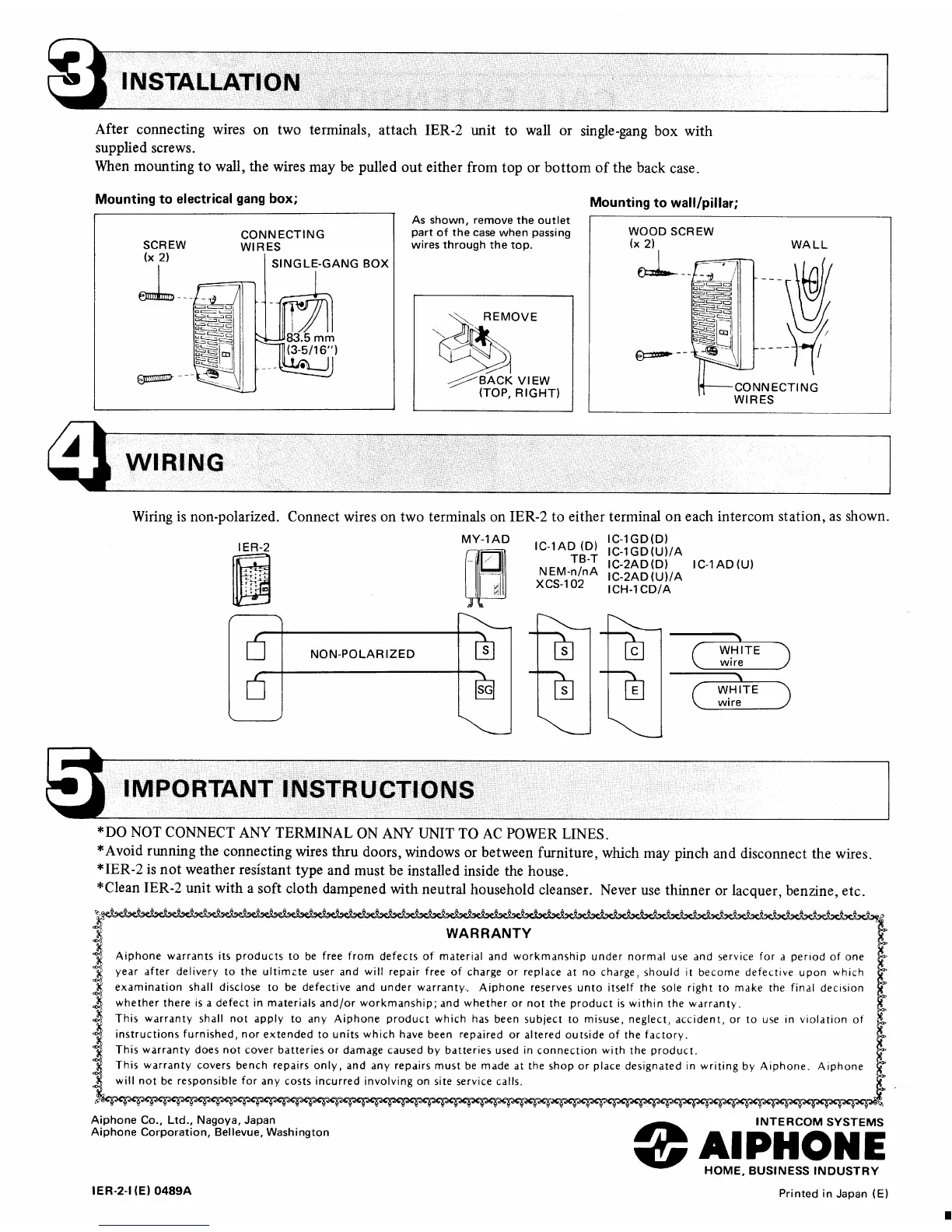

IER-2

Intercom master or sub station

Chime

or audio

tone
