Installation, Maintenance and Commissioning Manual :6877419 02/2013

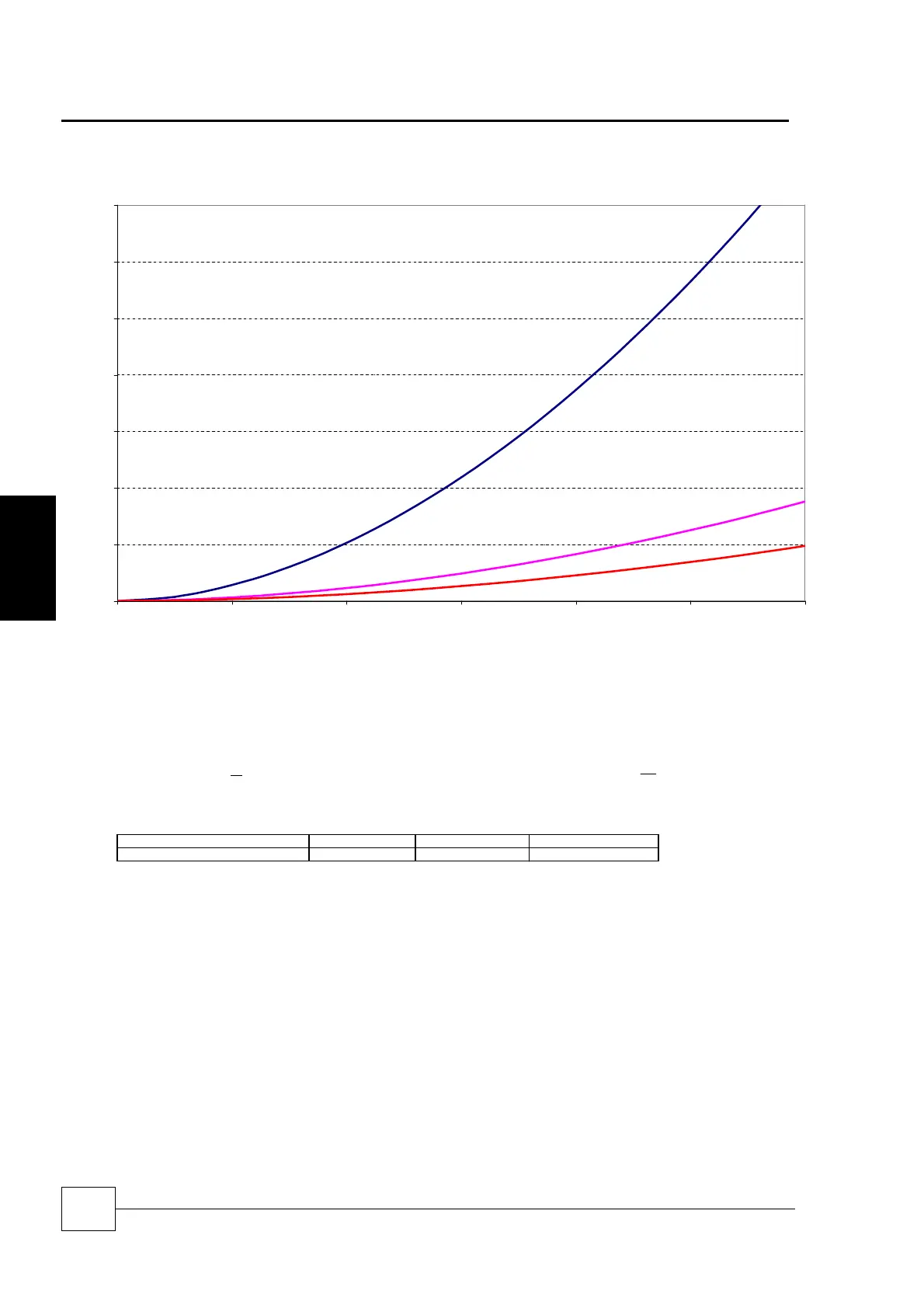

Waterside pressure drop - W2W2
Water cooled condenser
0
100
200
300
400
500
600
700
0 1 2 3 4 5 6
Flow Rate (l/s)
Pressure Drop (kPa)
1
2
3
Condenser pressure drop. (Per circuit)
1 SC19D055 2 SC19D070 – SC25D080 3 SC25D080 – SC31D130
(1) Includes condenser plate, 3 port valve and pipework.
(2) To calculate 3 port valve pressure drop:
∆P valve =
2
M
Q
where ∆P = Pressure Drop in kPa, Q = Water Flow Rate in l/s and M =
36
Kv
(3) Fluid 100% water
M
