AIREDALE SmartCool D - Unit Positioning Guidelines; Minimum Unit Clearance Requirements

Precision Air Conditioning
SmartCool
TM
– D
Precision Air Conditioning
13
Installation, Maintenance and Commissioning Manual :6877419 02/2013
Po
sitioning

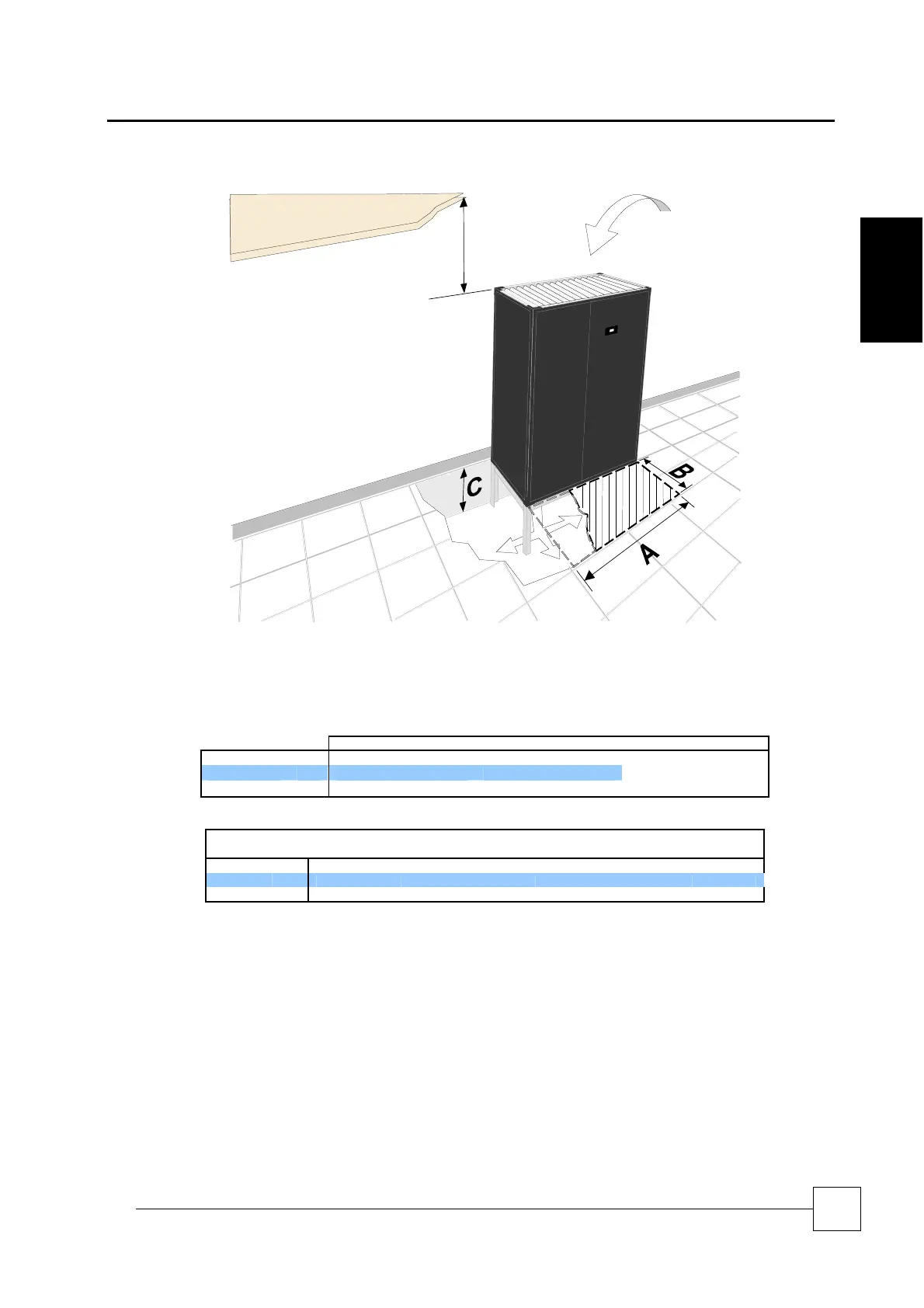

Minimum
U
nit
C
learance
Open & Enclosed Floorstand Option
A B C - Floorstand(3)
SC19D
mm 1985 800
Min 200 – Max 750
(+ 50mm Feet Adjustable +/-
20mm) (4)
SC25D
mm 2549 800
SC31D
mm 3113 800
Minim
um Ceiling Clearance
-
(D)
Forward Only Forward and 1 Side Forward and 2 Sides All Faces
SC19D
mm
720 500 380 250
SC25D
mm
740 550 440 280
SC31D
mm
750 590 480 300
Notes
(1) Shown with optional open floor stand.
(2) Shaded area indicates minimum service and maintenance requirements. The unit must be installed with allowance for carpet tile clearance.
(3) Dimension C denotes recommended minimum/maximum floor stand height, refer to Airedale for special applications, please specify at order.
(4) Min = Threaded foot at minimum extension (additional to “C” dimension).
Max = Threaded foot at maximum extension (additional to “C” dimension).
(2)
(D)
(1)
Installation
