AIREDALE SmartCool D - Evaporator Fan Removal Procedure

SmartCool
TM
- D
Precision Air Conditioning
178
Precision Air Conditioning
Installation, Maintenance and Commissioning Manual :6877419 02/2013

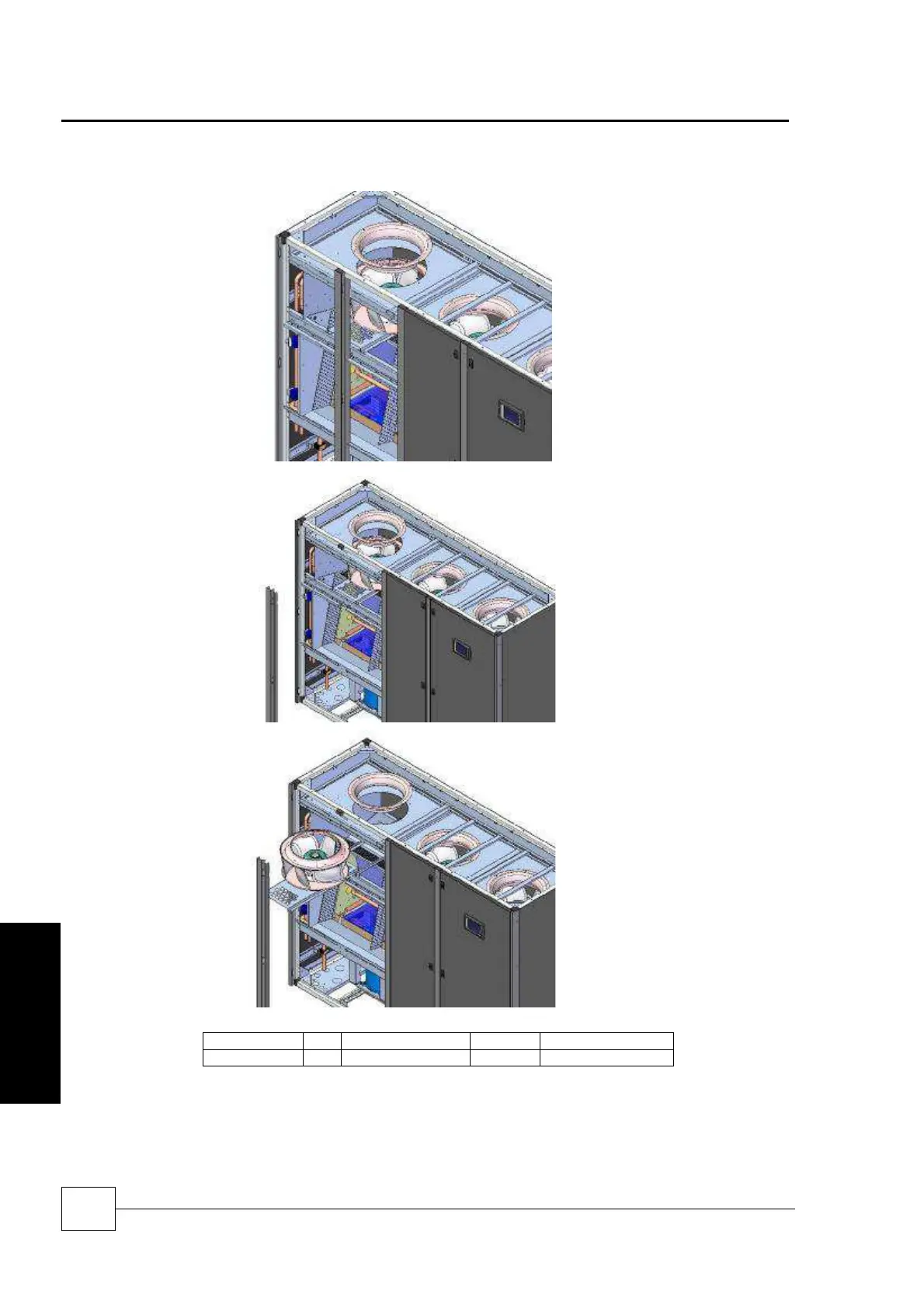

Evaporator Fan removal
Stage 1 Inlet Ring
• Remove door panel – 6 off
M6 Countersunk screws.
• Unscrew 6 off M5 bolts that
retain inlet ring in position.
• Lift inlet ring free of aperture.
Stage 2 Rem
ove Door
Divider Rail
• Remove door divider
assembly.
(Fixed top and bottom.)
Stage 3 Slide Fan Forward
• Disconnect fan loom from
electrical control panel.
• Remove 4 off M6 bolts that
hold the fan support.
• Slide fan assembly towards
the front of the unit (along
fan support guide rails.
• Carefully lift out the fan
assembly taking care not to
damage the fan loom.
Standard AC Fan EC Fan Upgraded EC Fan
Fan Weights kg 28 23.5 27.5
Note: Weights not including base plate.
