DISPLAY KEYPAD CONNECTIONS
The display keypad is equipped with a LCD display (8 rows x 22 columns) with 6 buttons, connected to the controller by a
RJ11 cable.

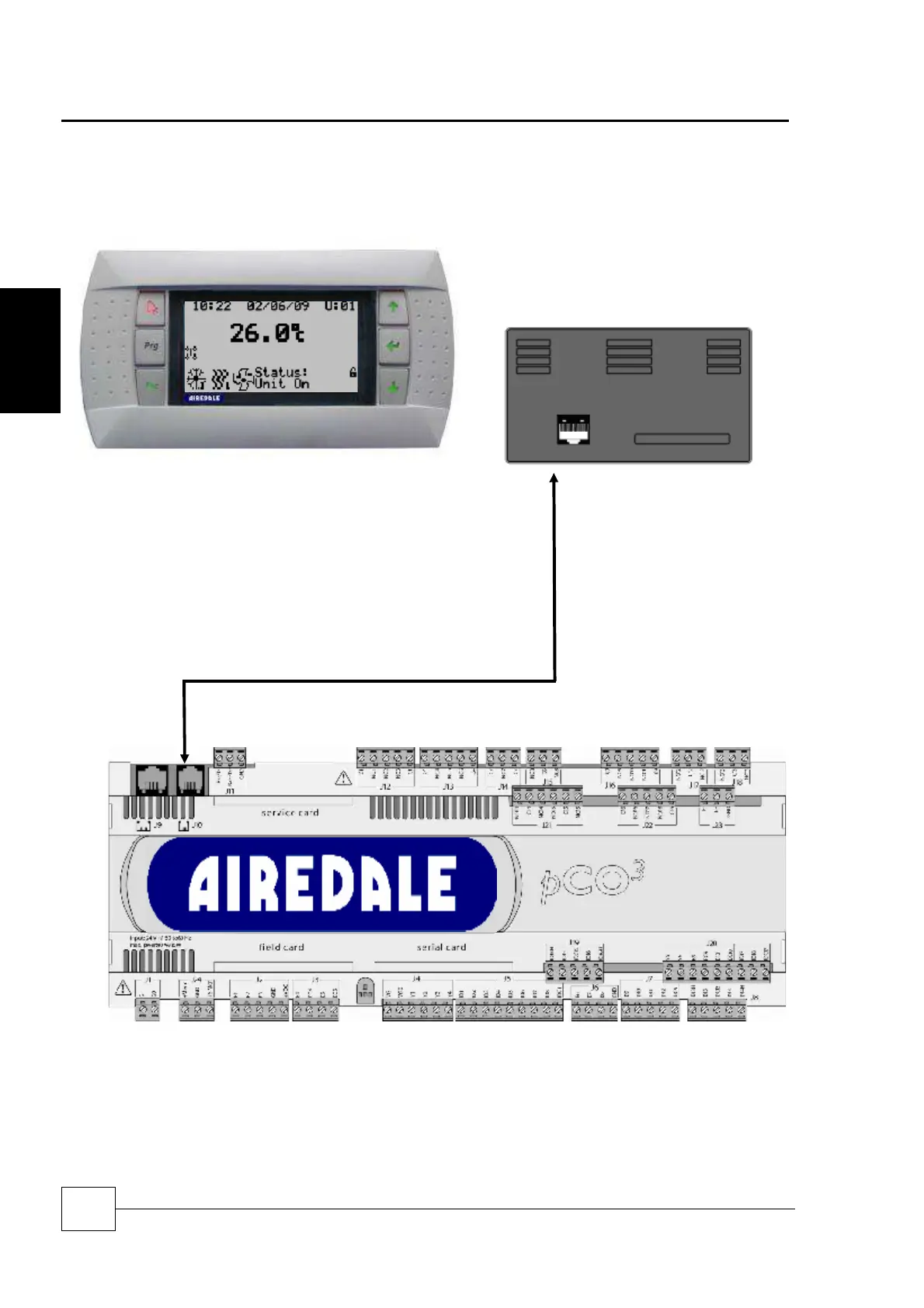

pGD1 Display
Controls
Local network
Connection, plug
cable into J10 on
PC0 controller
Display Keypad
