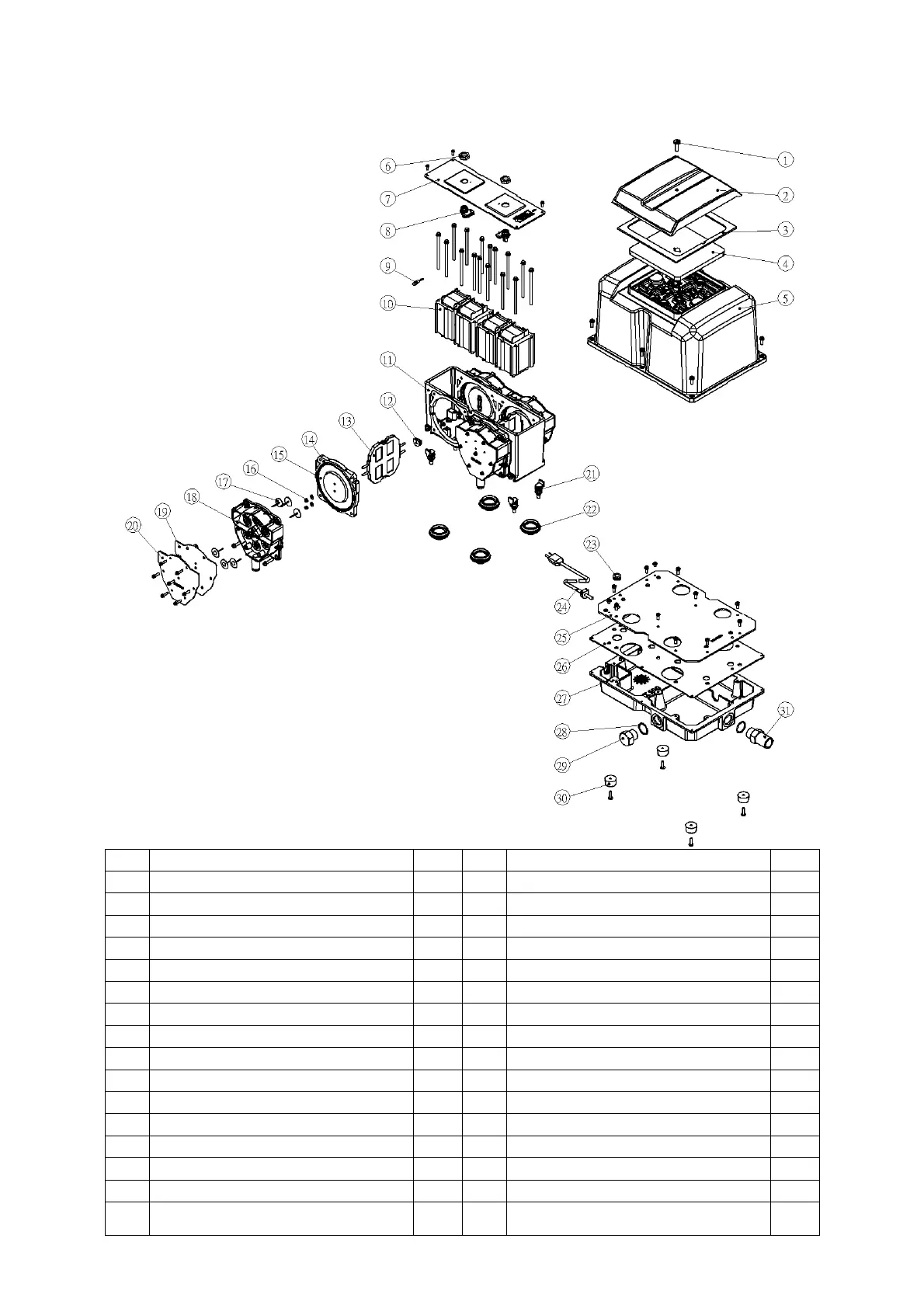

AIRMAC DBMX500 - DBMX Series Parts Identification; Exploded View; Parts List

DBMX version series 400、500
NO. DESCRIPTION QTY NO. DESCRIPTION QTY
1
TOP SCREW 1
17
CHECK VALVE 24
2
FILTER COVER 1
18
DIAPHRAGM HOUSING 4
3
FOAM SEAL 1
19
GASKET
–
1 4
4
FILT
ER 1
20
DIAPHRAGM HOUSING COVER 4
5
UPPER HOUSING 1
21
VIBRATION CONTROL RUBBER 4
6
SAFETY SYSTEM NUT 2
22
TUBE 4
7
COIL COVER 1
23
CORD PROTECTOR 1
8
SAFETY SYSTEM KIT 2
24
POWER CORD 1
9
THERM
A
L PROTECTOR 2
25
STEEL PLATE 1
10
ELECTROMAGNET 4
26
GASKET - 2 1
11
COIL FRAME 1
27
LOWER HOUSING 1
12
WIRE STOPPER 1
28
O RING 2
13
A
CTIVATING ARM 2
29
BLOCKING NUT 1
14
DIAPHRAGM FRAME 4
30
RUBBER FEET 4
15
DIAPHRAGM
4
31
EXHAUST CONNECTOR 1
16
U – NUT 8
