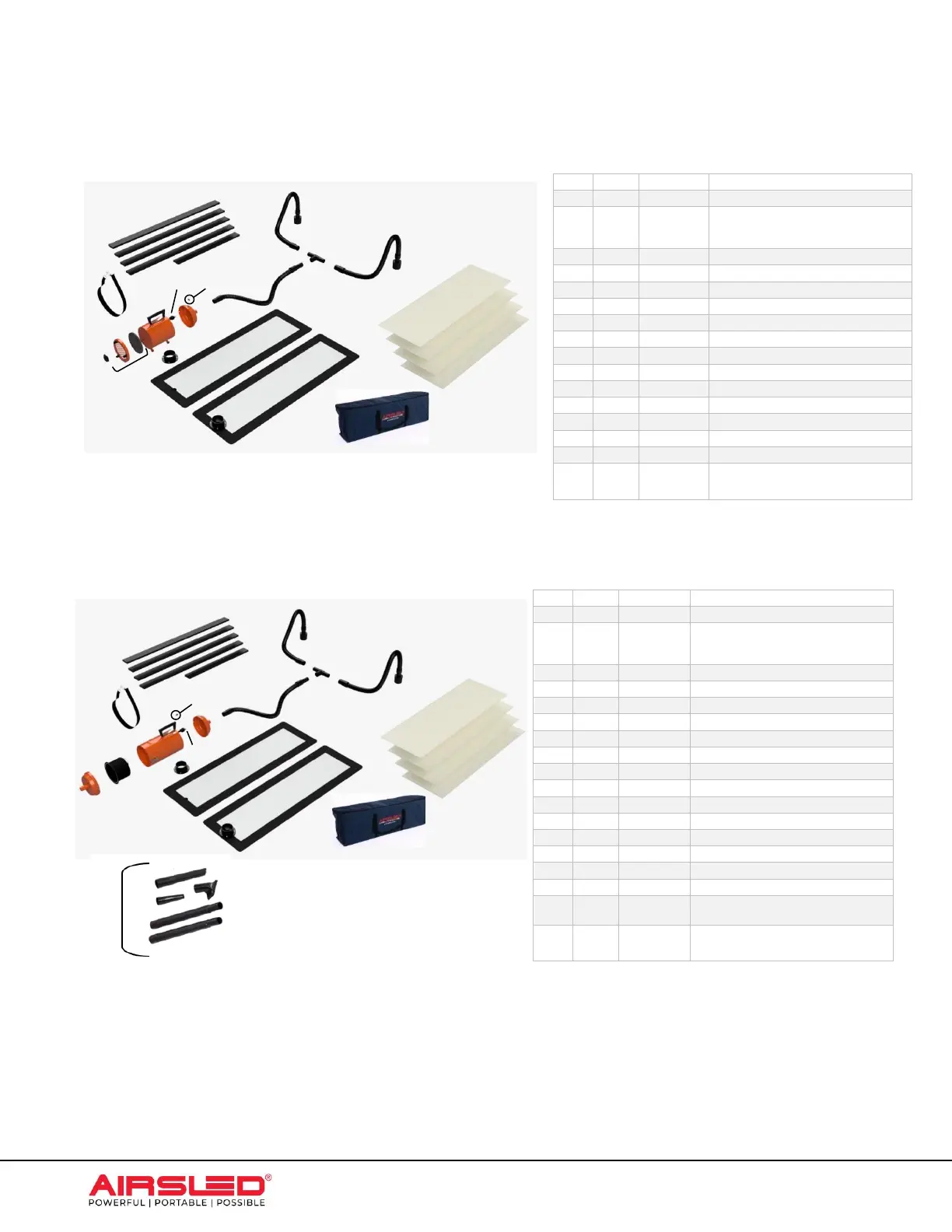

Exhibit 1: Parts Diagrams
Models: VM2400 (including DS and VS models)
Models: VM2401 (including DS and VS models)
ID
Qty
Part No.
Description
A1
1
PA01OF
On/Off toggle switch
A2*
1
PA01DS
PA01VS
HI/LO dual speed switch
On/Off variable speed dial
* not shown in diagram
B
1
PA00CA
Front end cap
C
1
PA01PC
Power cord
D
1
PA00CF
Rear end cap and filter set
E
2
PA1239
12” W x 39” L x 3/16” T air beams
F
2
PA3INL
Hose inlet with damper gasket
G
1
PA3WAY
Tee connector
H
1
PA01LH
Lead hose
I
2
PA02SH
Supply hose
J
4
PA4RSA
Rough Surface Adapters
K
1
PA20FB
Foot brace
L
1
PA01ST
Shoulder strap
M
1
PA02BG
Carry bag for full system
N
4
AC32SS
Spacer sticks
-
1
PA3721
(DS, VS)
Complete blower for VM2400
• 4HP / 120v / 11.3 amps
ID
Qty
Part No.
Description
A1
1
PA01OF
On/Off toggle switch
A2*
1
PA01DS
PA01VS
HI/LO dual speed switch
On/Off variable speed dial
* not shown in diagram
B
1
PA00CA
Front end cap
C
1
PA01PC
Power cord
D
1
PA03CA
Rear end cap
E
1
PA04FB
Filter/bag
F
2
PA1239
12” W x 39” L x 3/16” T air beams
G
2
PA3INL
Hose inlet with damper gasket
H
1
PA3WAY
Tee connector
I
1
PA01LH
Lead hose
J
2
PA02SH
Supply hose
K
4
PA4RSA
Rough Surface Adapters
L
1
PA20FB
Foot brace
M
1
PA02ST
Shoulder strap
N
1
PA02BG
Carry bag for full system
O
4
AC32SS
Spacer sticks
P
5
n/a
Vacuum nozzle and hose
attachments
-
1
PA3751
(DS, VS)
Complete blower for AM2401
• 4HP / 120v / 11.3 amps
A1
B
C
D
E
F
G
H
I
J
K
L
M
N
A
B
C
D
E
F
G
H
I
J
K
M
N
L
O
P
Note:
4HP 220v blowers are 5.7 amps
Note:
4HP 220v blowers are 5.7 amps
