AIRSYS UNICOOL 28V1B5 - Page 101

Spare Parts
101
Number
Part Name
Number
Part Name
Number
Part Name
1
Condenser Fan
12
Invertor
23
Panel, Bottom Left
2
Panel, Top
13
Detuned Reactor
24
Installation Support Bar
A
3
Condenser Coil
14
Panel, Front Bottom
25
Evaporator Coil
4
Damper Actuator
15
Panel, Emergency
Switch
26
Corner Post, Left Back
5
Panel, Right Upper
16
Panel, Middle Front
27
Electrical Heating
Element
6
Installation Support
Bar B
17
Panel, Upper front
28
Thermal Cut-off Switch
7
Panel, Middle Right
18
Electric Box
29
Bottom Mounting
Support
8
Panel, Damper
Inspection
19
Corner Post, Left Front
30
Panel, Back
9
Panel, Bottom Right
20
Panel, Upper Left
31
Supply Fan
10
Corner Post, Front
Right
21
Damper Assembly
32
Main Filter
11
Compressor
22
Panel, Middle Left
33
Corner Post, Back
Right

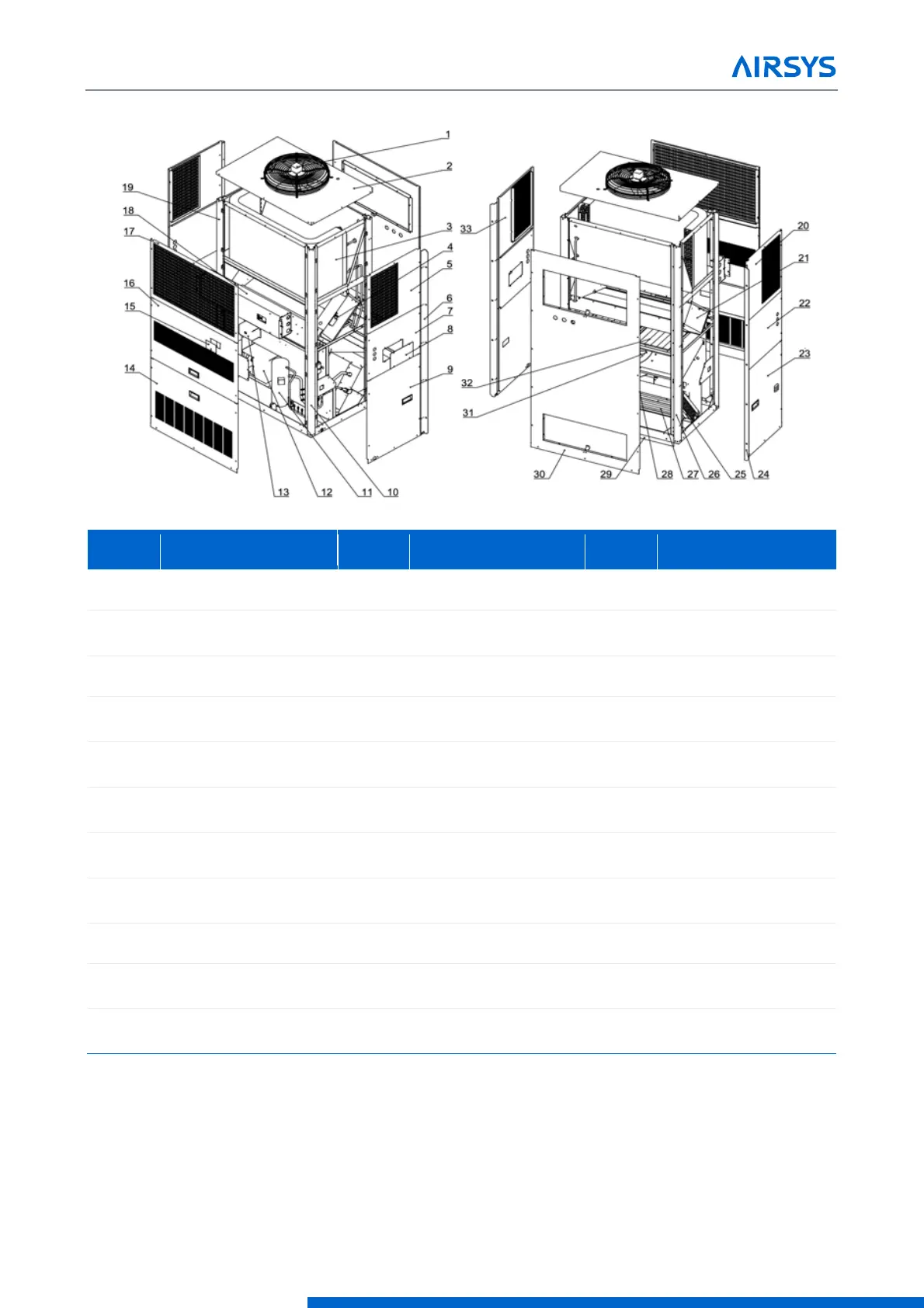

Table 8-2 Bottom Supply WPU Part Identification (B2/B3/B4)
