2
REVISION LEVEL A - 09/09/15
5

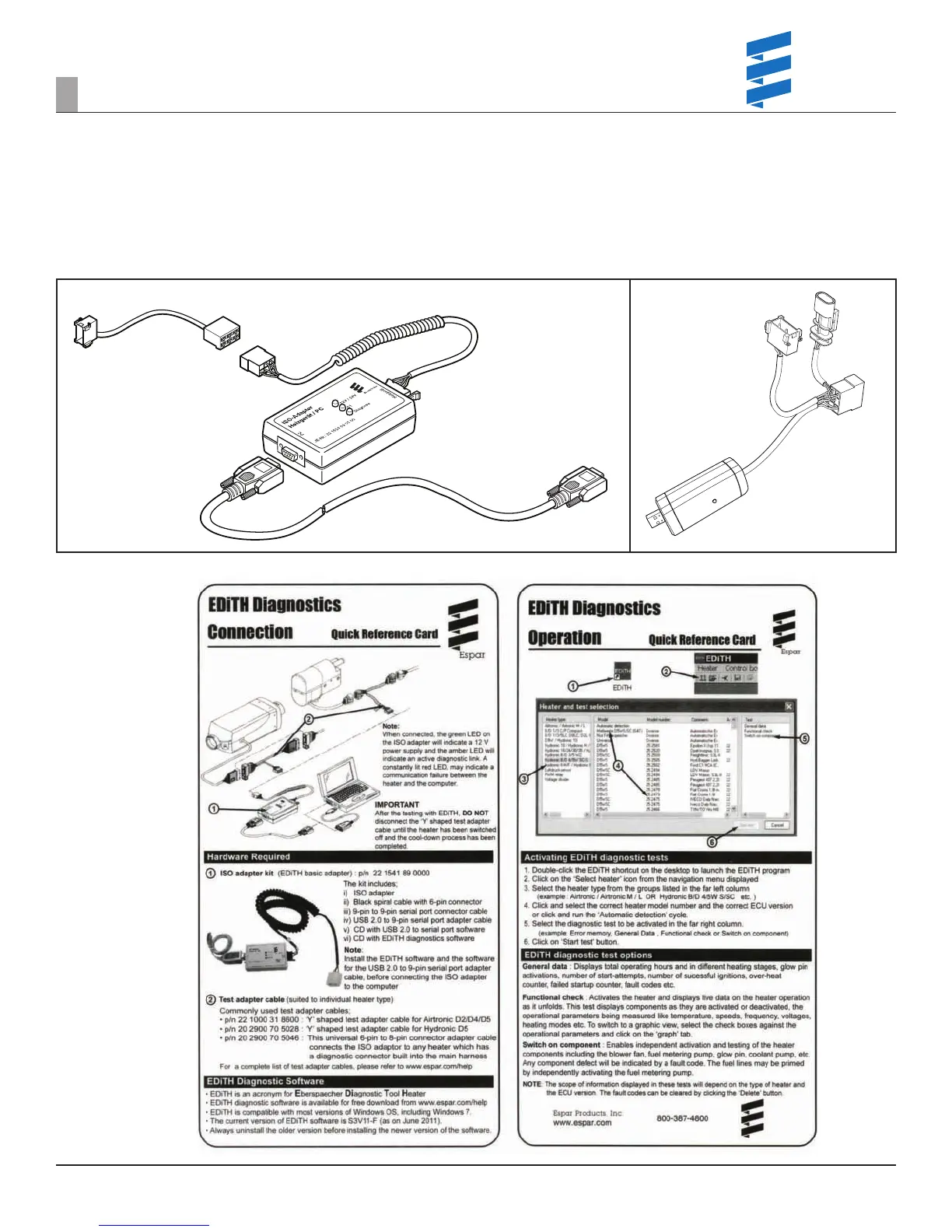

DIAGNOSTIC DEVICES
MULTIPLE DIAGNOSTIC DEVICES ARE AVAILABLE AS OUTLINED BELOW:
This manual is designed to be used with the Airtronic D2/D4. Please reference
the data tag on your heater to verify which heater model you have. The
Airtronic D2/D4 can utilize any of the fault code readers listed here.
EDiTH BASIC
EDITH PC DIAGNOSTICS
“PREFERRED”
1. EDiTH PC BASED DIAGNOSTICS – “PREFERRED”:
The ability to print out an ECU extraction is only available using EDiTH PC
diagnostics, and is a requirement for taking advantage of the EW14 express
warranty protocols. Full product testing capability including remote running
of system components without removal of the heater, can be utilized for rapid
fuel system priming.
UNIVERSAL DIAGNOSTIC TOOL
Figure 7 Figure 8
Figure 9
