24

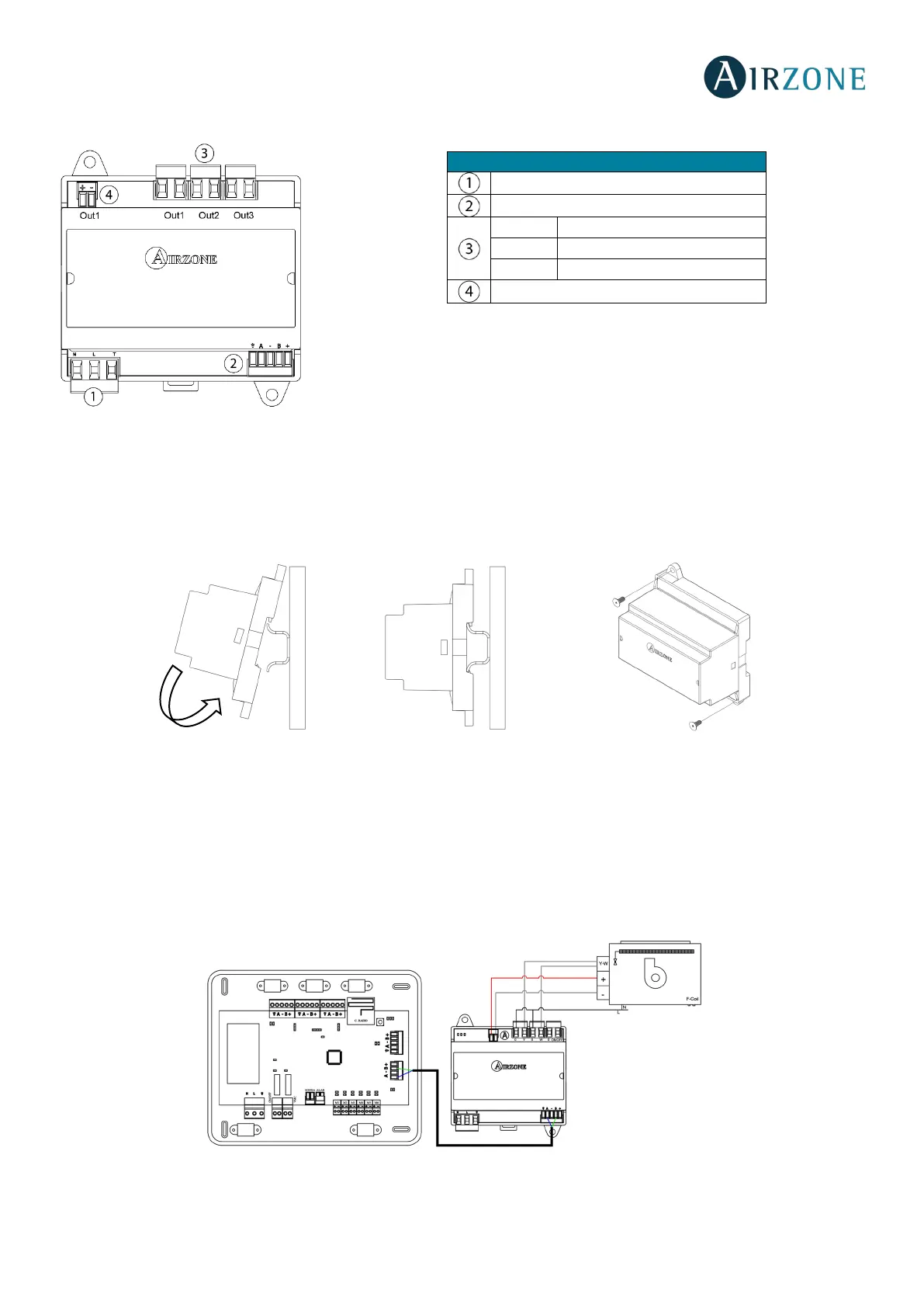

0-10 V FANCOIL CONTROL GATEWAY (AZX6010VOLTSZ)
Fig. 28
Assembly
Fancoil control gateway can be mounted on DIN rail (Fig. 29) or on wall (Fig. 30). This module is externally powered at 110/230
Vac. It is should be placed and mounted in accordance with the current electrotechnical regulations.
Fig. 29 Fig. 30
Note: To remove the module on DIN rail, pull the tab down to release it.
Connection
The 0-10 V gateway is connected to the AC unit bus of the main board (Fig. 31 and 32).
Connection diagram, 2-pipe installation
Fig. 31
Power supply
AC unit bus
Fan control
To Next Page
