26
Assembly

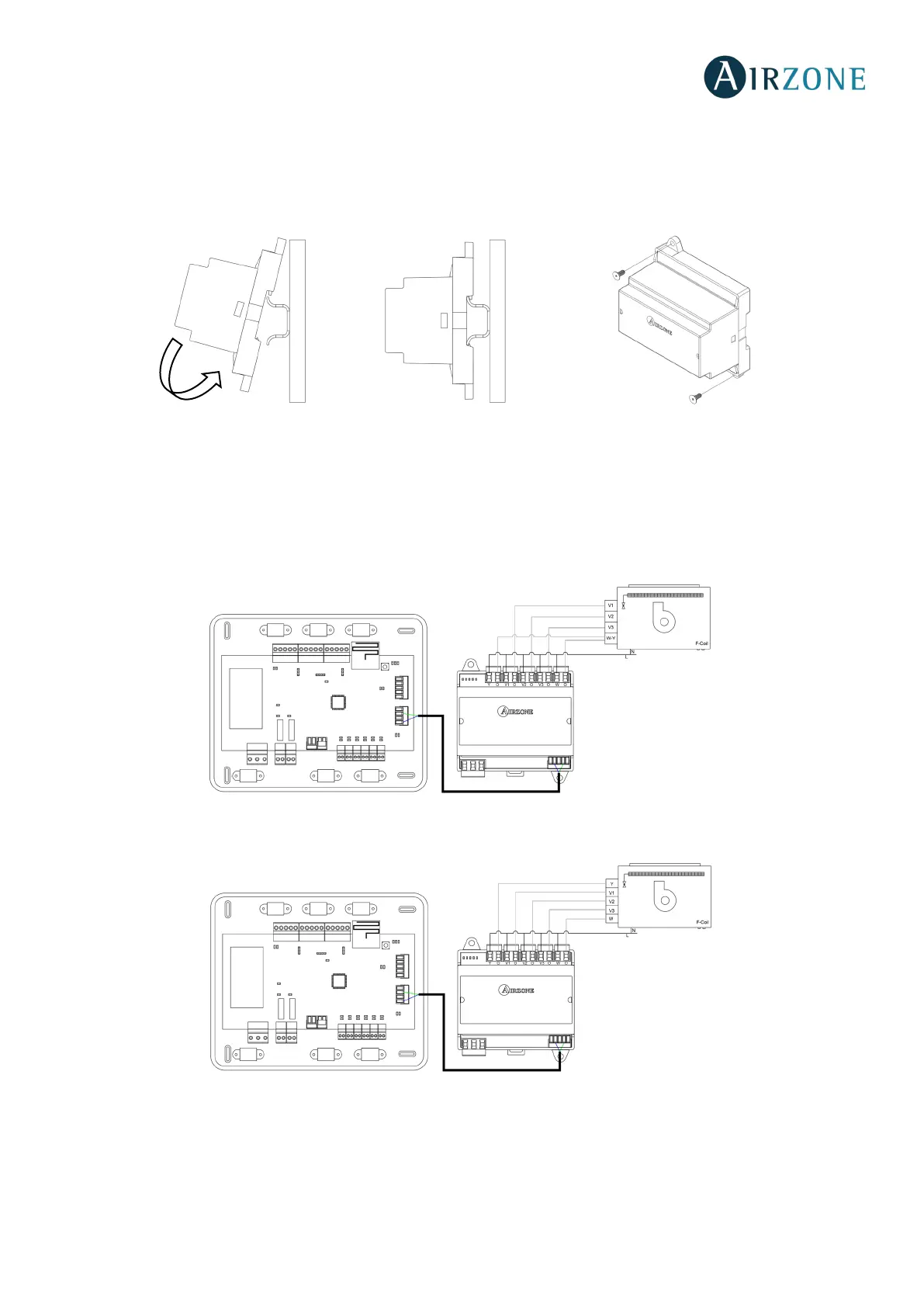

Airzone control gateway-3 speeds fancoil is mounted on DIN rail (Fig. 36) or on wall (Fig. 37). This module is externally powered
at 110/230 Vac. It is should be placed and mounted in accordance with the current electrotechnical regulations.
Fig. 36 Fig. 37
Note: To remove the module on DIN rail, pull the tab down to release it.
Connection
Fancoil control gateway is connected to the AC unit bus of the main board (Fig. 38 and 39).
Connection diagram, 2-pipe installation
Fig. 38
Connection diagram, 4-pipe installation
Fig. 39
