End Caps and HiLo Trim

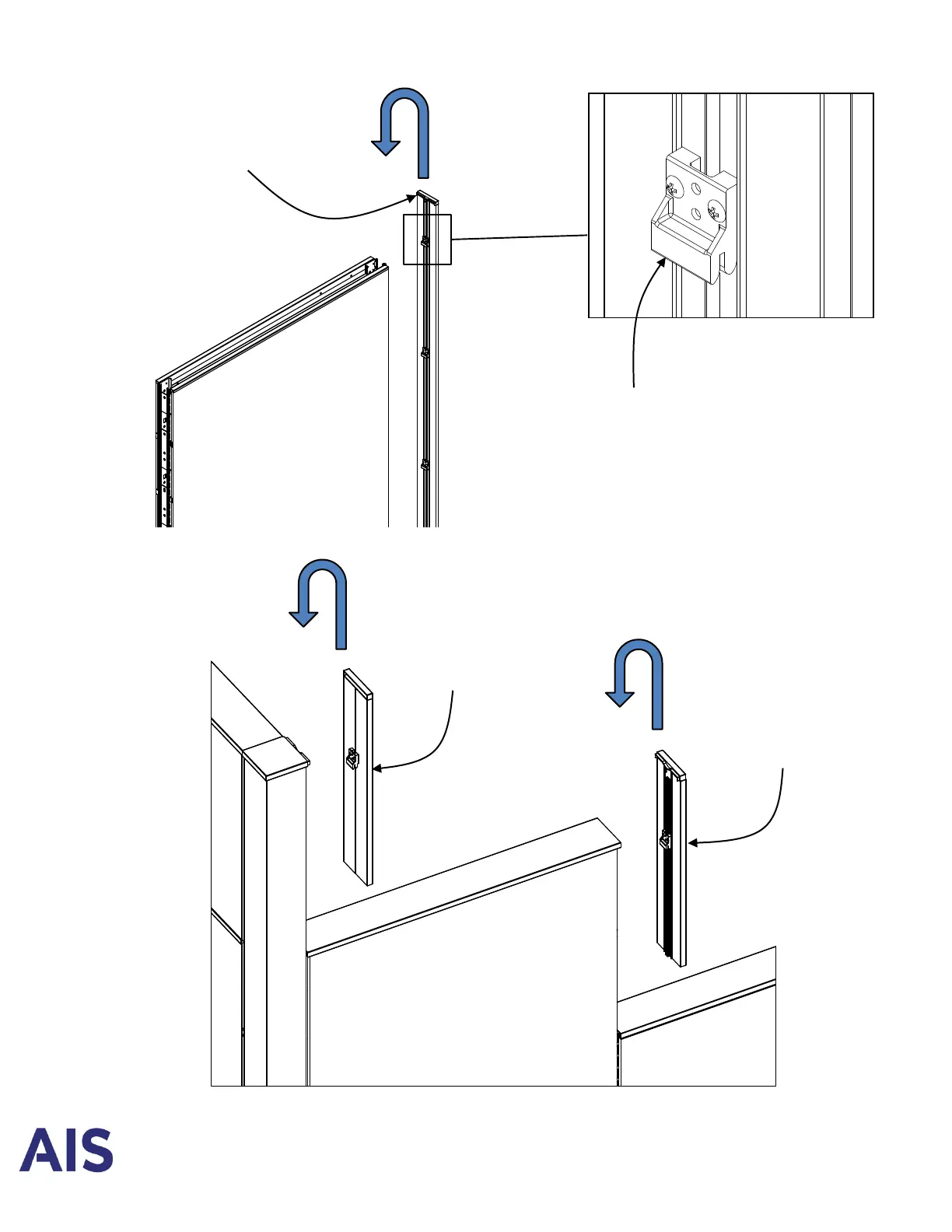

Use electrical chase holes
to slide end cap clips down
onto the matrix frame.
Once install, make sure
endcaps are flush.
Endcap assembly
90 or 120 Connector
HiLo assembly
(flat extrusion)
Frame HiLo
Assembly
(Extrusion with ribs)
