AJ 30130 - Page 48

3 | 01252 359760 • ajproducts.co.uk

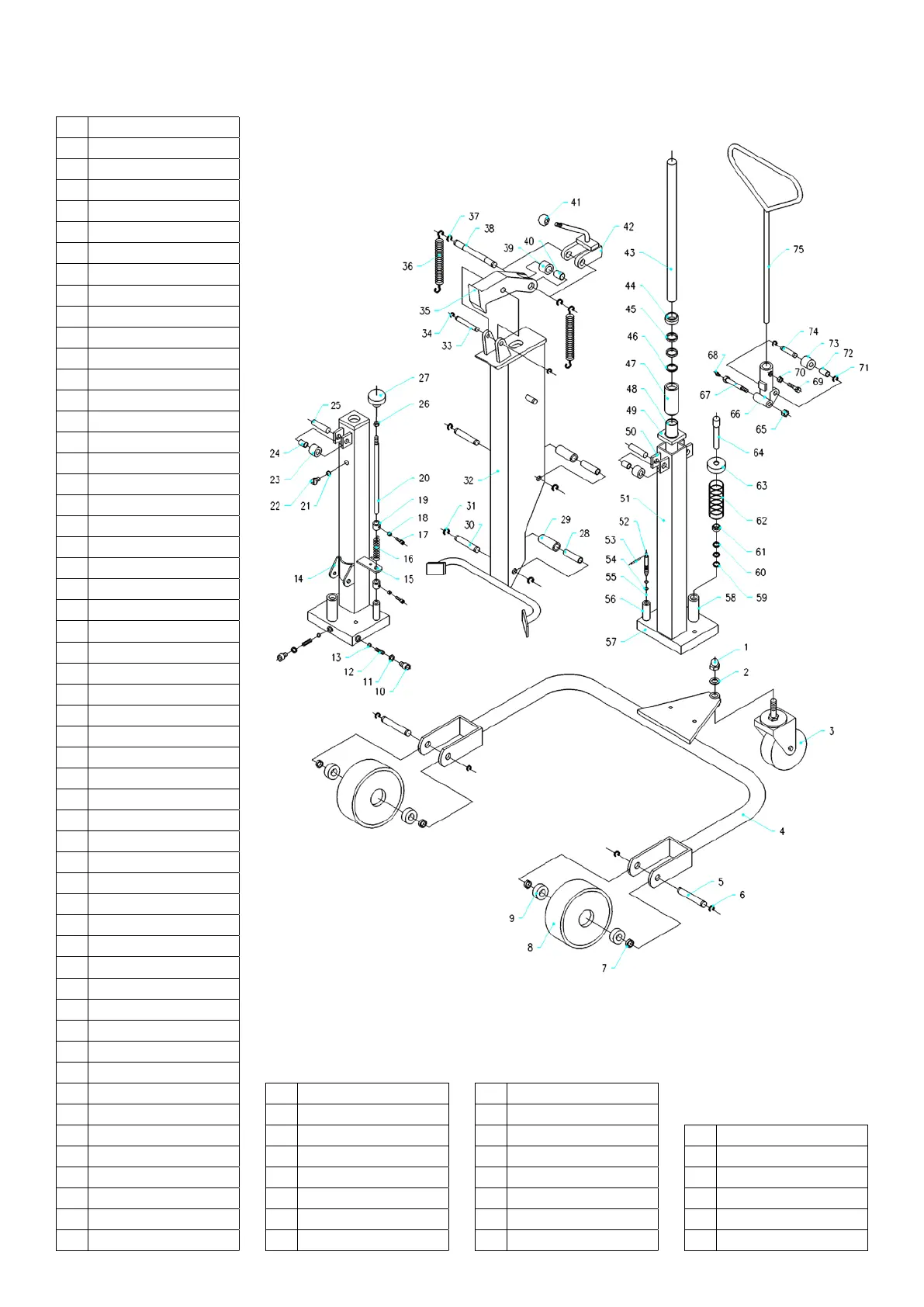

EXPLODED VIEW
& PART LIST
No. Description
1 Nut
2 Washer
3 Wheel
4 Chassis
5 Pin
6 Ring
7 Clamp Ring
8 Front Wheel
9 Bearing
10 Bolt
11 Copper Ring
12 Spring
13 Steel Ball
14 Link Board
15 Location Board
16 Spring
17 Location Bolt
18 Nut
19 Location Ring
20 Shaft
21 0-ring
22 Bolt
23 Up-roller
24 Roller Pin
25 Bearing
26 Nut
27 Handle
28 Bearing
29 Roller
30 Pin
31 Ring
32 Bearing Tube
33 Pin
34 Ring
35 Clamp Ring
36 Spring
37 Ring
38 Ring
39 Ring
40 Bearing
41 Ball
42 Raising Board
43 Piston Pole
44 Dustproof Ring
45 0-ring
46 Ring
47 Internal Bush
48 Internal Cylinder
49 Square Board
50 Small Board
51 External Cylinder
52 Valve core
53 Pin
54 0-ring
55 Steel Ball
56 Pipe
57 Pump Body
58 Pump Bush
59 Ring
60 0-ring
61 Dustproof Ring
62 Spring
63 Cover of Pump
64 Pump Pole
65 Nut
66 Pump Base
67 Pin of Pump
68 Oil Nib
69 Bolt
70 Nut
71 Ring
72 Bearing
73 Ring of Pump
74 Pin
75 Handle Pole
