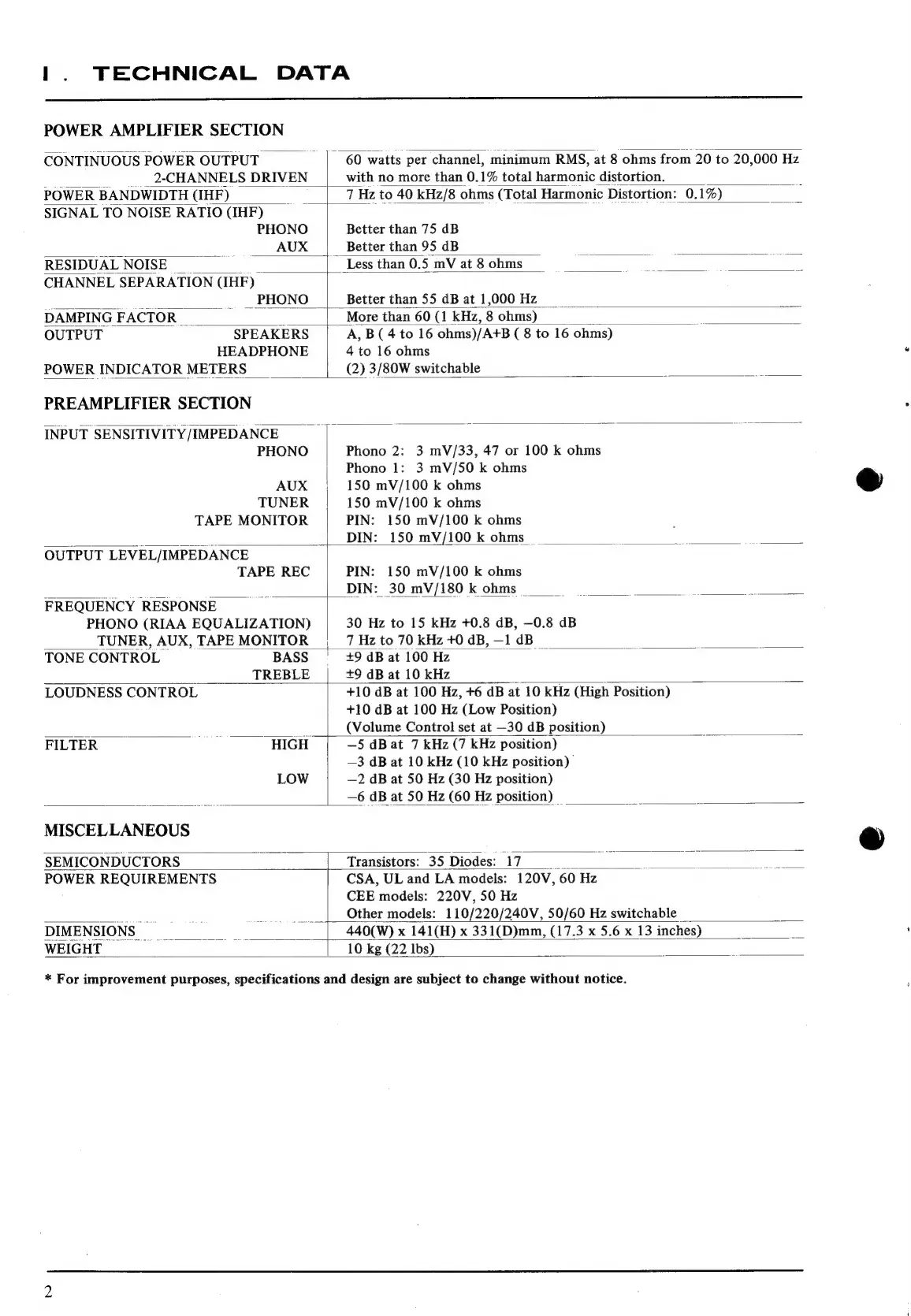

|. TECHNICAL DATA
POWER AMPLIFIER SECTION
CONTINUOUS POWER OUTPUT —
2-CHANNELS DRIVEN
with no more than 0.1% total harmonic distortion.
POWER BANDWIDTH (IHF) 7 Hz to 40 kHz/8 ohms (Total Harmonic Distortion: 0.1%) a
SIGNAL TO NOISE RATIO (IHF) a 7 _
PHONO Better than 75 dB
___AUX | _ Better than 95 dB = :
RESIDUAL NOISE __ te | Less than 0.5 mV at 8 ohms -
CHANNEL SEPARATION (IHF)
ee ___ _ PHONO Better than 55 dBat1,000Hz
DAMPING FACTOR _ > More than 60(1kHz,8 ohms)
OUTPUT SPEAKERS A, B (4 to 16 ohms)/A+B ( 8 to 16 ohms)
HEADPHONE 4 to 16 ohms
POWER INDICATOR METERS (2) 3/80W switchable ;
PREAMPLIFIER SECTION
INPUT SENSITIVITY /IMPEDANCE
PHONO
AUX
TUNER
Phono 2: 3 mV/33, 47 or 100 k ohms
Phono 1: 3 mV/50 k ohms
150 mV/100 k ohms
150 mV/100 k ohms
TAPE MONITOR PIN: 150 mV/100 k ohms
; 7 ce DIN: 150 mV/100 k ohms.
OUTPUT LEVEL/IMPEDANCE
TAPE REC | PIN: 150 mV/100 k ohms
DIN: 30 mV/180 k ohms _
FREQUENCY RESPONSE
PHONO (RIAA EQUALIZATION)
TUNER, AUX, TAPE MONITOR
30 Hz to 15 kHz +0.8 dB, —0.8 dB
7 Hz to 70 kHz +0 dB, -1 dB _
TONE CONTROL | BASS +9 dB at 100 Hz
: TREBLE | +9 dBat 10 kHz = :
LOUDNESS CONTROL +10 dB at 100 Hz, +6 dB at 10 kHz (High Position)
+10 dB at 100 Hz (Low Position)
7 (Volume Control set at —30 dB position)
FILTER HIGH —5 dBat 7 kHz (7 kHz position)
—3 dB at 10 kHz (10 kHz position) |
LOW —2 dB at 50 Hz (30 Hz position)
eee —6 dB at 50 Hz (60 Hz position) oe
MISCELLANEOUS
SEMICONDUCTORS Transistors: 35 Diodes: 17
POWER REQUIREMENTS
DIMENSIONS _
CSA, UL and LA models: 120V, 60 Hz
CEE models: 220V, 50 Hz
Other models: 110/220/240V, 50/60 Hz switchable
440(W) x 141(H) x 331(D)mm, (17.3 x 5.6 x 13 inches)
WEIGHT
10 kg (22 lbs)
* For improvement purposes, specifications and design are subject to change without notice.
