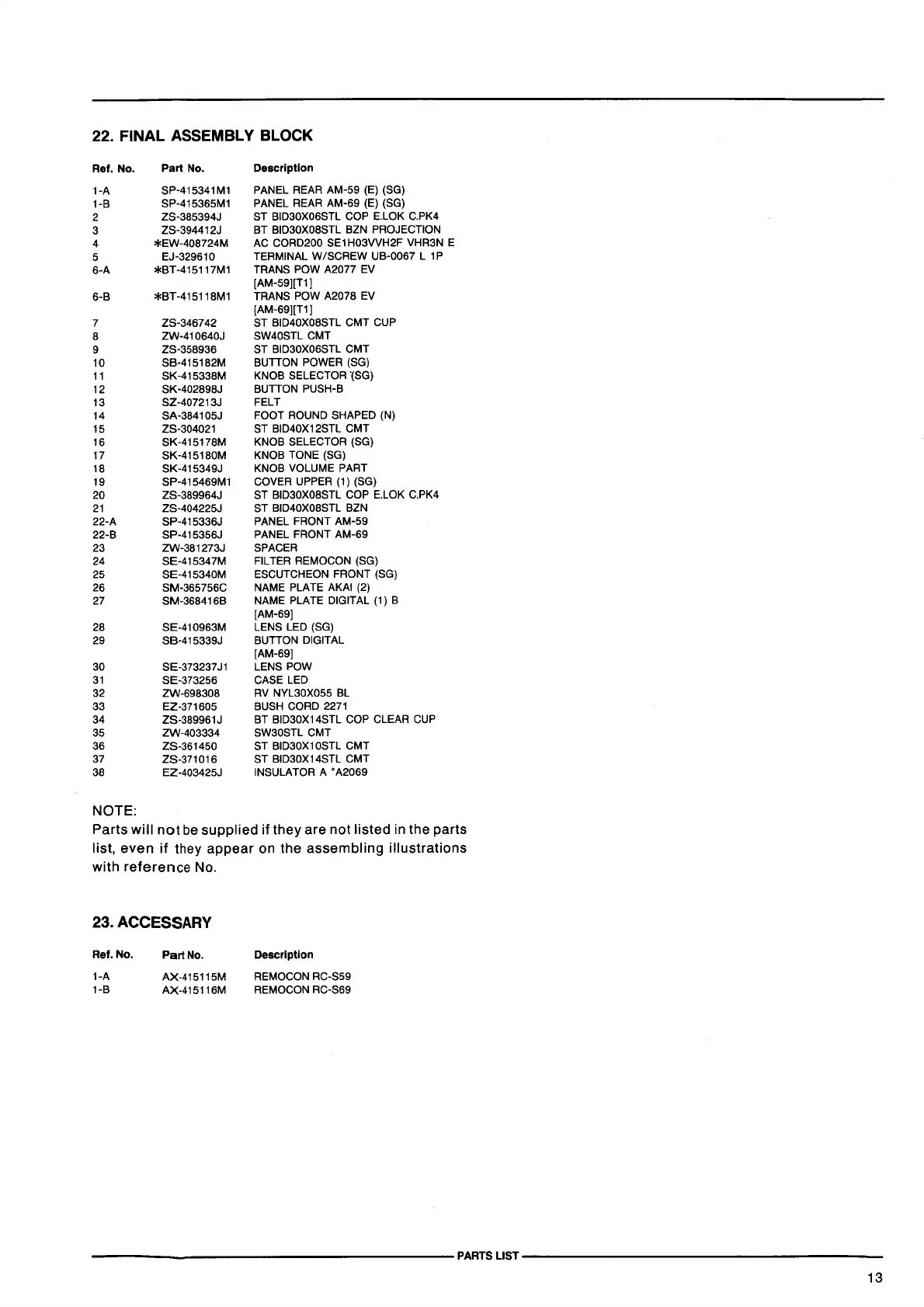

22. FINAL ASSEMBLY BLOCK
Ref. No.
Part
No.
Description
1-A SP-415341M1
PANEL REAR AM-59
(E)
(SG)
1-B
SP-415365M1
PANEL REAR AM-69 (E) (SG)
2
ZS-385394J
ST BID30X06STL COP E.LOK C.PK4
3
ZS-394412J
BT BID30X08STL BZN PROJECTION
4 *EW-408724M
AC
CORD200 SE1H03VVH2F VHR3N E
5
EJ-329610
TERMINAL W/SCREW UB-0067 L 1 P
6-A
*BT-415117M1
TRANS POW A2077
EV
[AM-59](T1]
6-B
*BT-415118M1
TRANS POW A2078
EV
[AM-69](T1]
7
ZS-346742
ST BID40X08STL GMT CUP
8
ZW-410640J
SW40STL GMT
9
ZS-358936
ST BID30X06STL GMT
10
SB-415182M
BUTTON POWER (SG)
11
SK-415338M
KNOB SELECTOR
"(SG)
12
SK-402898J
BUTTON PUSH-B
13
SZ-407213J FELT
14 SA-384105J
FOOT ROUND SHAPED
(N)
15
ZS-304021
ST BID40X12STL GMT
16 SK-415178M
KNOB SELECTOR (SG)
17
SK-415180M KNOB TONE (SG)
18 SK-415349J
KNOB VOLUME PART
19 SP-415469M1
COVER UPPER (1) (SG)
20
ZS-389964J
ST BID30X08STL COP E.LOK C.PK4
21
ZS-404225J ST BID40X08STL BZN
22-A
SP-415336J
PANEL FRONT AM-59
22-B SP-415356J
PANEL FRONT AM-69
23 ZW-381273J
SPACER
24
SE-415347M
FIL TEA REMOCON (SG)
25 SE-415340M
ESCUTCHEON FRONT (SG)
26 SM-365756C
NAME PLATE AKAi (2)
27 SM-368416B
NAME PLATE DIGITAL (1) B
[AM-69]
28
SE-410963M LENS LED (SG)
29 SB-415339J
BUTTON DIGITAL
[AM-69]
30 SE-373237J1
LENS POW
31
SE-373256 CASE LED
32 ZW-698308
RV
NYL30X055
BL
33 EZ-371605
BUSH
CORD
2271
34
ZS-389961J
BT BID30X14STL COP CLEAR
CUP
35 ZW-403334
SW30STL GMT
36 ZS-361450
ST BID30X1 0STL GMT
37
ZS-371016
ST BID30X14STL GMT
38 EZ-403425J
INSULATOR A
"A2069
NOTE:
Parts
will
not
be
supplied
if
they
are not
listed
in the parts
list,
even
if
they
appear
on the
assembling
illustrations
with
reference
No.
23. ACCESSARY
Ref. No.
1-A
1-B
Part No.
AX-415115M
AX-415116M
Description
REMOCON RC-S59
REMOCON RC-S69
----------------------PARTS
LIST----------------------
13
