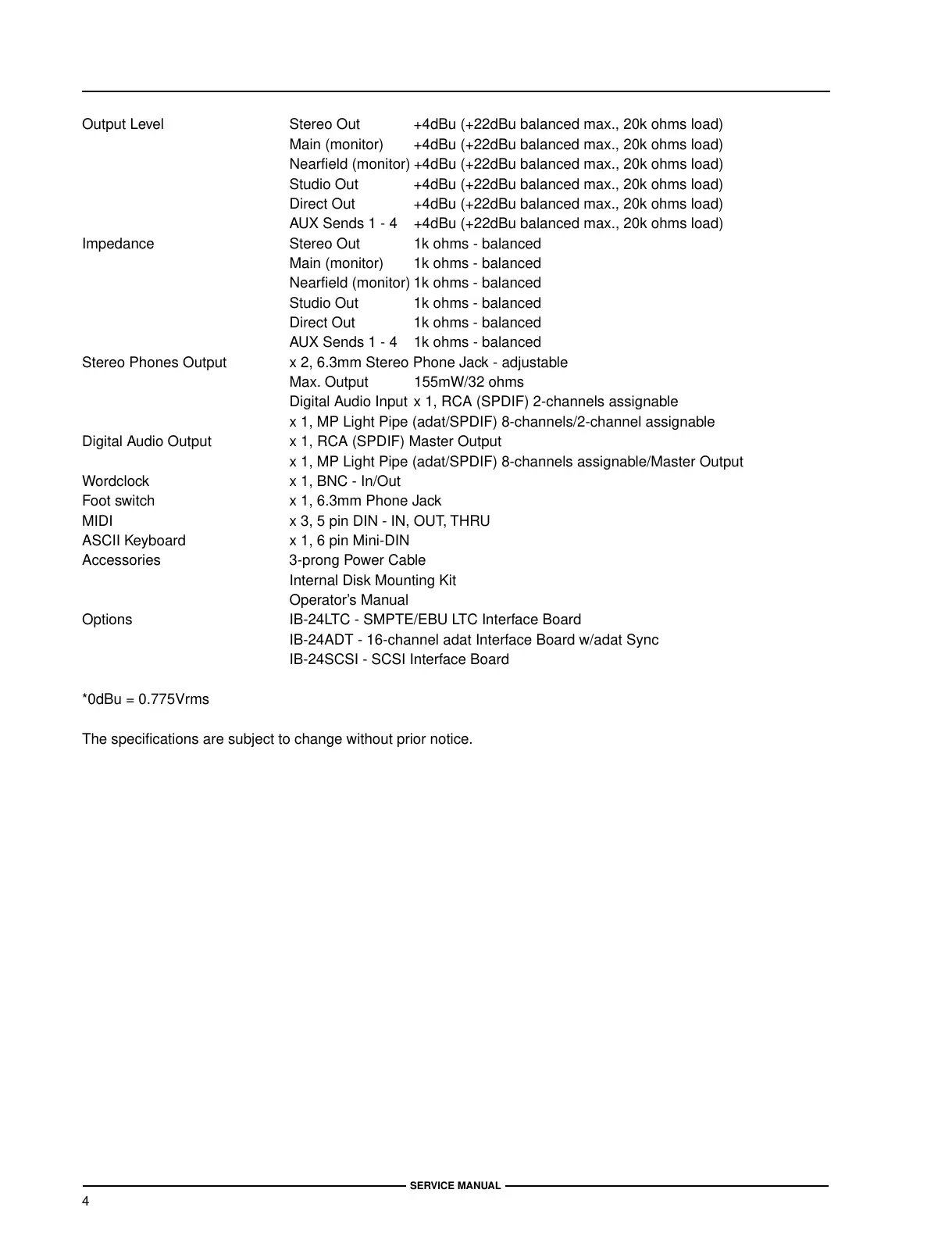

SERVICE MANUAL
4
Output Level Stereo Out +4dBu (+22dBu balanced max., 20k ohms load)
Main (monitor) +4dBu (+22dBu balanced max., 20k ohms load)
Nearfield (monitor) +4dBu (+22dBu balanced max., 20k ohms load)
Studio Out +4dBu (+22dBu balanced max., 20k ohms load)
Direct Out +4dBu (+22dBu balanced max., 20k ohms load)
AUX Sends 1 - 4 +4dBu (+22dBu balanced max., 20k ohms load)
Impedance Stereo Out 1k ohms - balanced
Main (monitor) 1k ohms - balanced
Nearfield (monitor) 1k ohms - balanced
Studio Out 1k ohms - balanced
Direct Out 1k ohms - balanced
AUX Sends 1 - 4 1k ohms - balanced
Stereo Phones Output x 2, 6.3mm Stereo Phone Jack - adjustable
Max. Output 155mW/32 ohms
Digital Audio Input x 1, RCA (SPDIF) 2-channels assignable
x 1, MP Light Pipe (adat/SPDIF) 8-channels/2-channel assignable
Digital Audio Output x 1, RCA (SPDIF) Master Output
x 1, MP Light Pipe (adat/SPDIF) 8-channels assignable/Master Output
Wordclock x 1, BNC - In/Out
Foot switch x 1, 6.3mm Phone Jack
MIDI x 3, 5 pin DIN - IN, OUT, THRU
ASCII Keyboard x 1, 6 pin Mini-DIN
Accessories 3-prong Power Cable
Internal Disk Mounting Kit
Operator’s Manual
Options IB-24LTC - SMPTE/EBU LTC Interface Board
IB-24ADT - 16-channel adat Interface Board w/adat Sync
IB-24SCSI - SCSI Interface Board
*0dBu = 0.775Vrms
The specifications are subject to change without prior notice.
