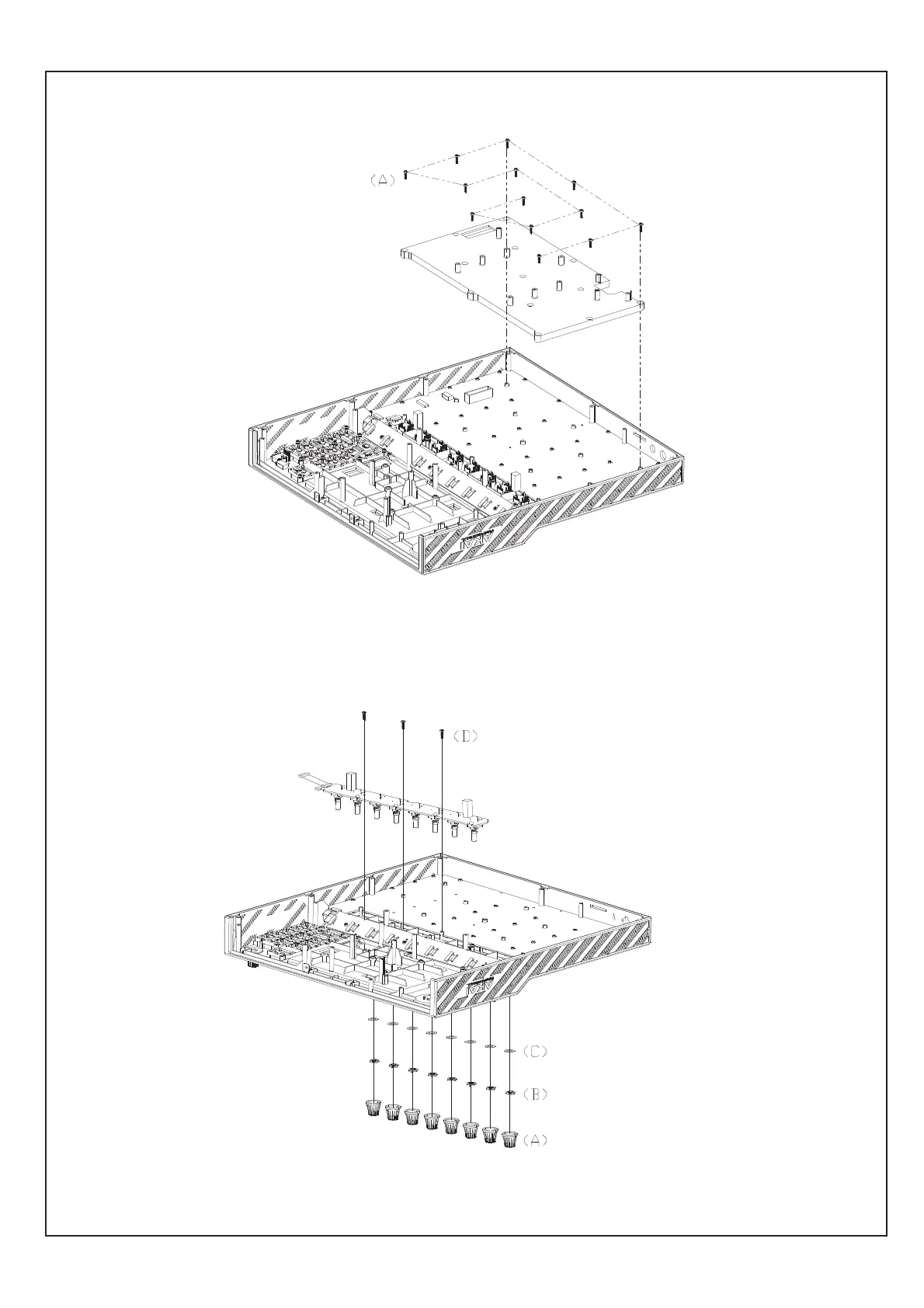

IJIJįDISASSEMBLE THE PAD HOLDER
(A)REMOVE 13 PCS SCREW FROM THEPAD HOLDER
(Fig11)
IJijį
IJijįIJijį
IJijįDISASSEMBLE THE TOP AND VR PCB ASS’Y
(A)REMOVE 8 PCS KNOB FROM THE VR PCB ASS’Y
(B)REMOVE 8 PCS NUT FROM THE VR PCB ASS’Y
(C)REMOVE 8 PCS WASHER FROM THE VR PCB ASS’Y
(D) REMOVE 3 PCS SCREW FROM THEOLED PCB ASS’Y..
(Fig12)
