Akai MPD 24 - Page 4

Controller Mapping Table
Fader 1
Direct Master
Fader 2
Overhead Mic Level
Fader 3
Room Mic Level
Fader 4
PZM Mic Level
Fader 5
Hi Hat control
Fader 6
Master Volume
Knob 1
Kick 1 Tuning
Knob 2
Kick 1 Mic In/Out
Knob 3
Snare 1 Tuning
Knob 4
Snare 1 Mic Top/Bottom
Knob 5
Hi Hat Tuning
Knob 6
Tom Floor Tuning
Knob 7
Tom Mid Tuning
Knob 8
Tom High Tuning

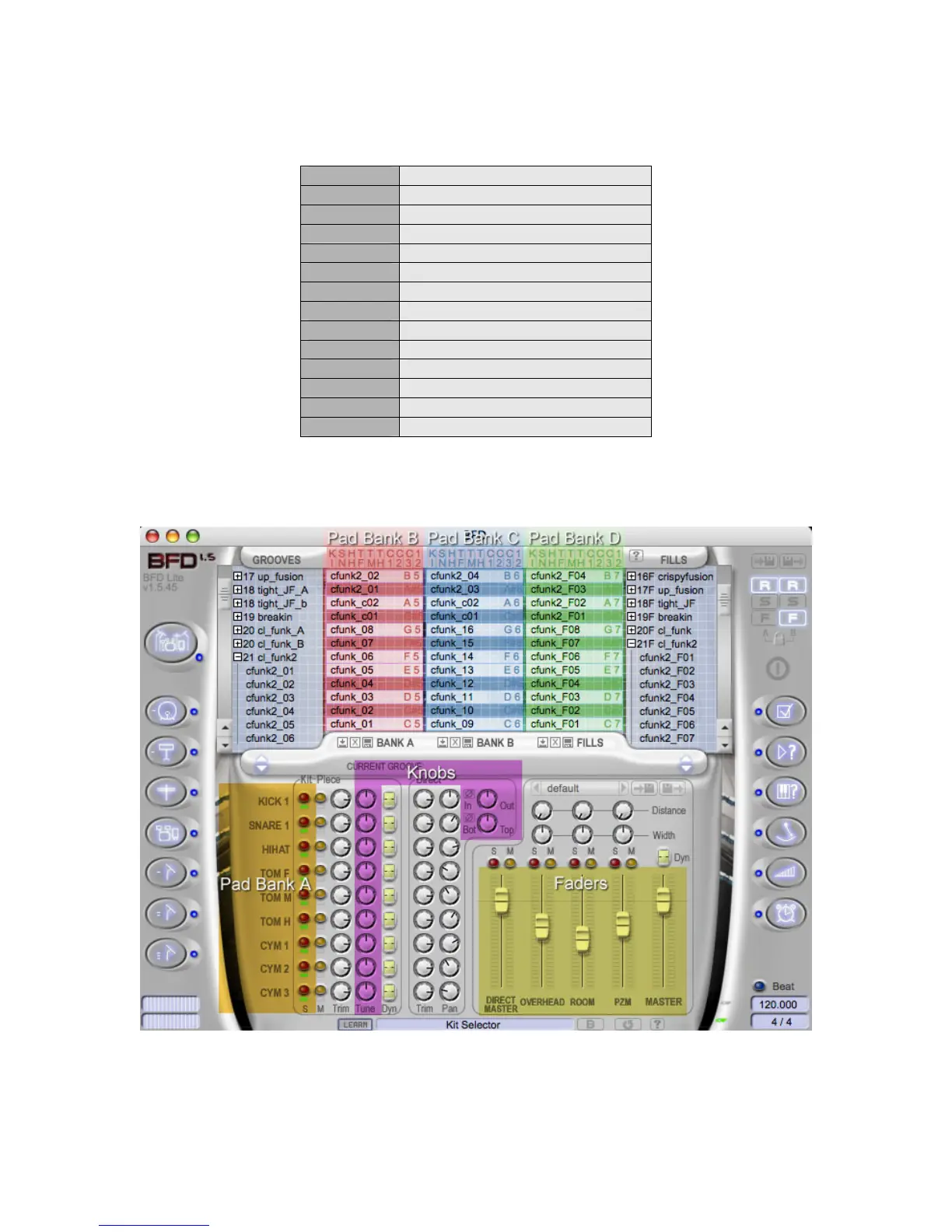

Below is a screen shot that shows the Pad Banks, Faders, and Knobs in relation to their mapping
within BFD.
