Akia Screens Fixed Frame Screen Series - Frame Parts List; Hardware Parts List

JA01072022 www.akiascreens.com U-00239 2

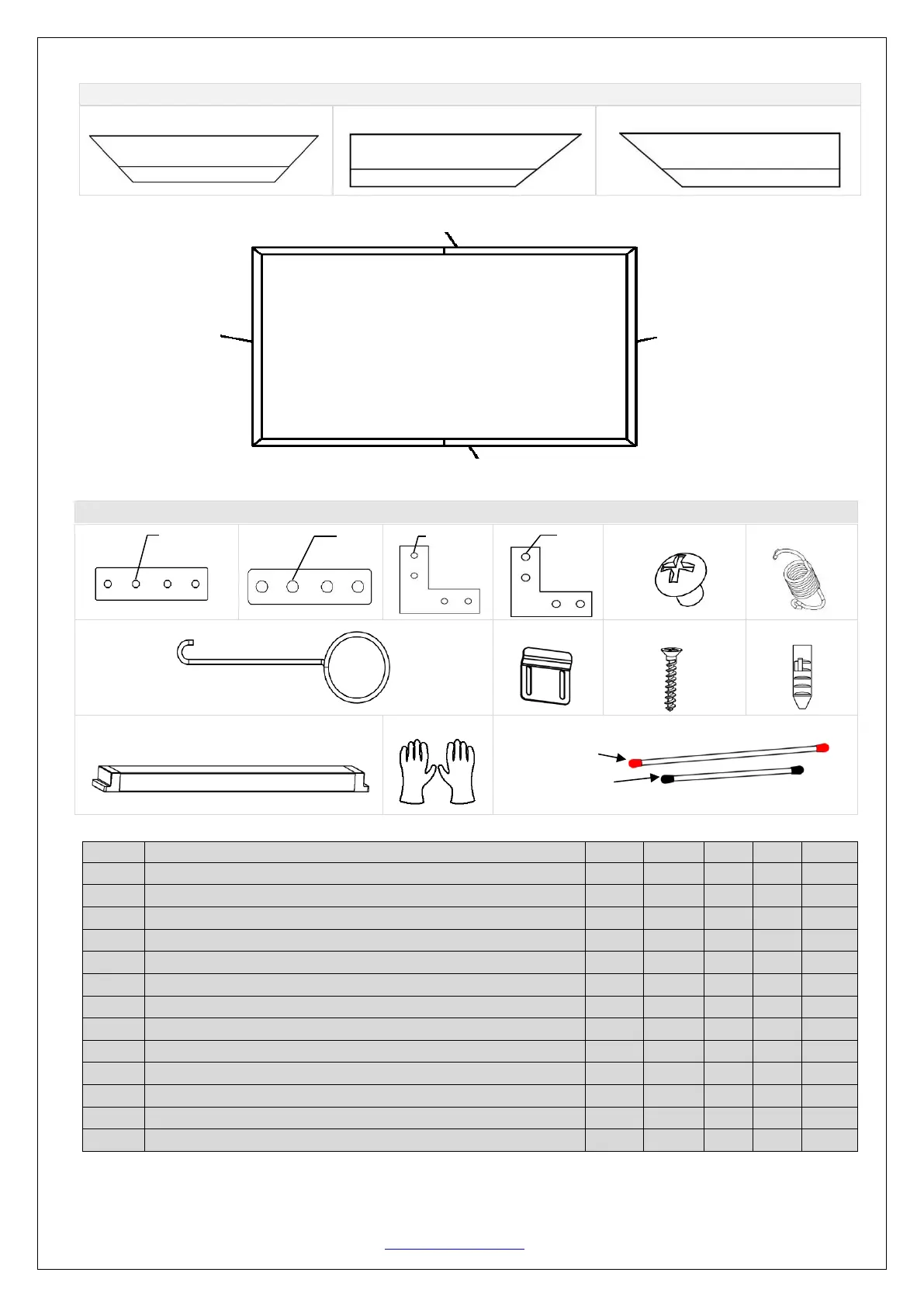

Frame Parts List
A. Vertical Frame x 2pcs
B. ½ Horizontal Frame x2 pcs
C. ½ Horizontal Frame x 2 pcs
Hardware Parts List
a. M4*4
b. D5*4
c. M4*4
d. D5*4
g.
h.
i.
j.
k.
l.
o.
p.
r.
Item
Parts List
100”
110”
120”
135”
150”
a.
Center Joints- M4 (bottom position)
2
2
2
2
2
b.
Center Joints-D5 (top position)
2
2
2
2
2
c.
Elbow Joints M4 (bottom position)
4
4
4
4
4
d.
Elbow Joints D5 (top position)
4
4
4
4
4
g.
M4x7 Screws
24
24
24
24
24
h.
Spring
60
66
72
80
88
i.
Pull Hook
2
2
2
2
2
j.
Wall brackets
4
4
4
4
4
k.
Wall Screws M5x50
8
8
8
8
8
l.
Hollow Wall anchors
8
8
8
8
8
o.
Center Support Bar
1
1
1
1
1
p.
White gloves
2
2
2
2
2
r.
Φ3 mm Long Iron (sides) rod / Short rod (top/bottom)
2/4
2/4
2/4
2/4
2/4
C+B
B+C
A
A
Red
Black
