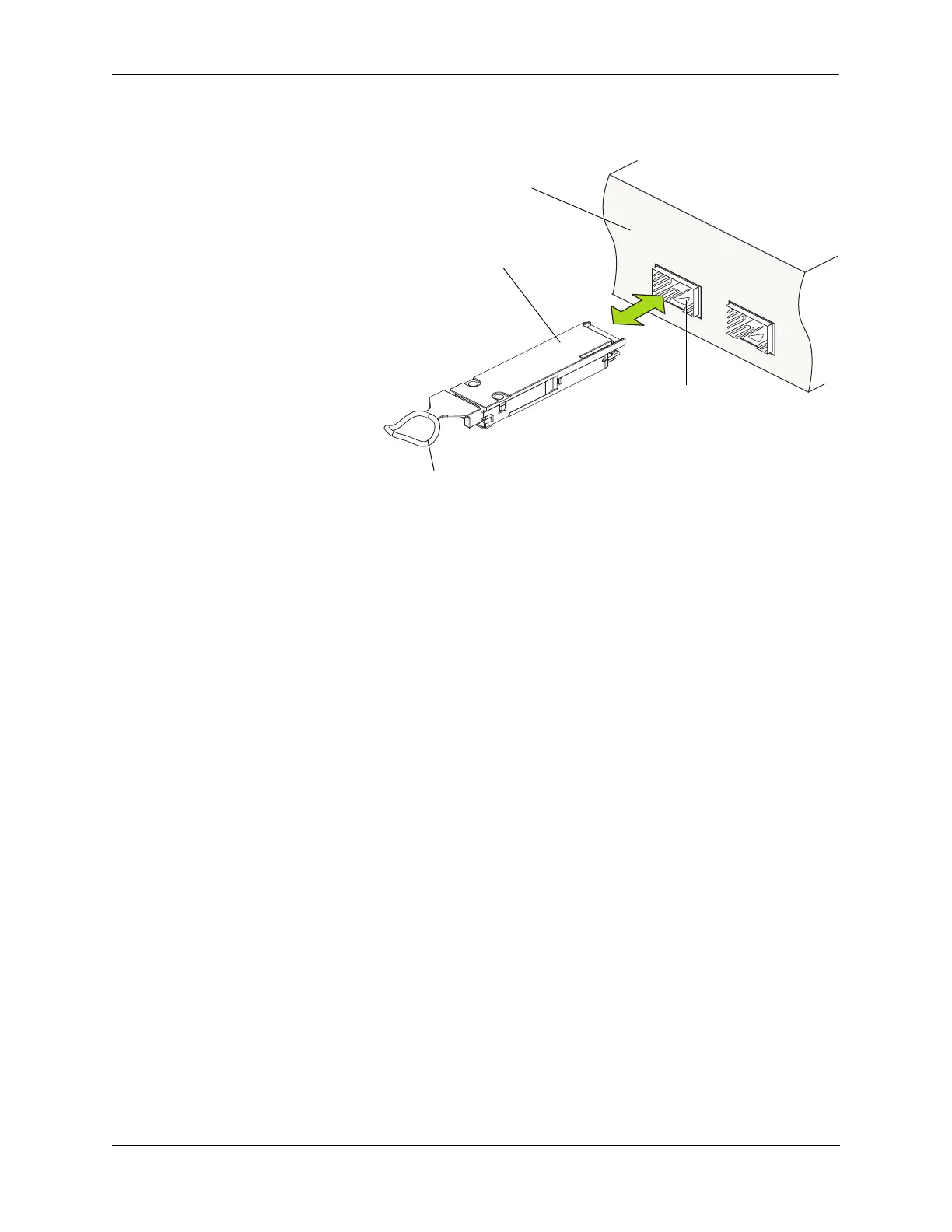

To install, align the transceiver with the
transceiver slot on the NI module, as
shown. Carefully slide the transceiver
back until it clicks into place; this is an
indication that the connectors are firmly
seated.
QSFP+ Transceiver
Network Interface (NI) Module
To remove, use the rubber or metal ejector
handle and pull transceiver straight out and
away from the NI module.
Note: Never force the transceiver in or out of
the transceiver slot.
Transceiver Slot
Handle
