OS6860-BP 150W Power Supply

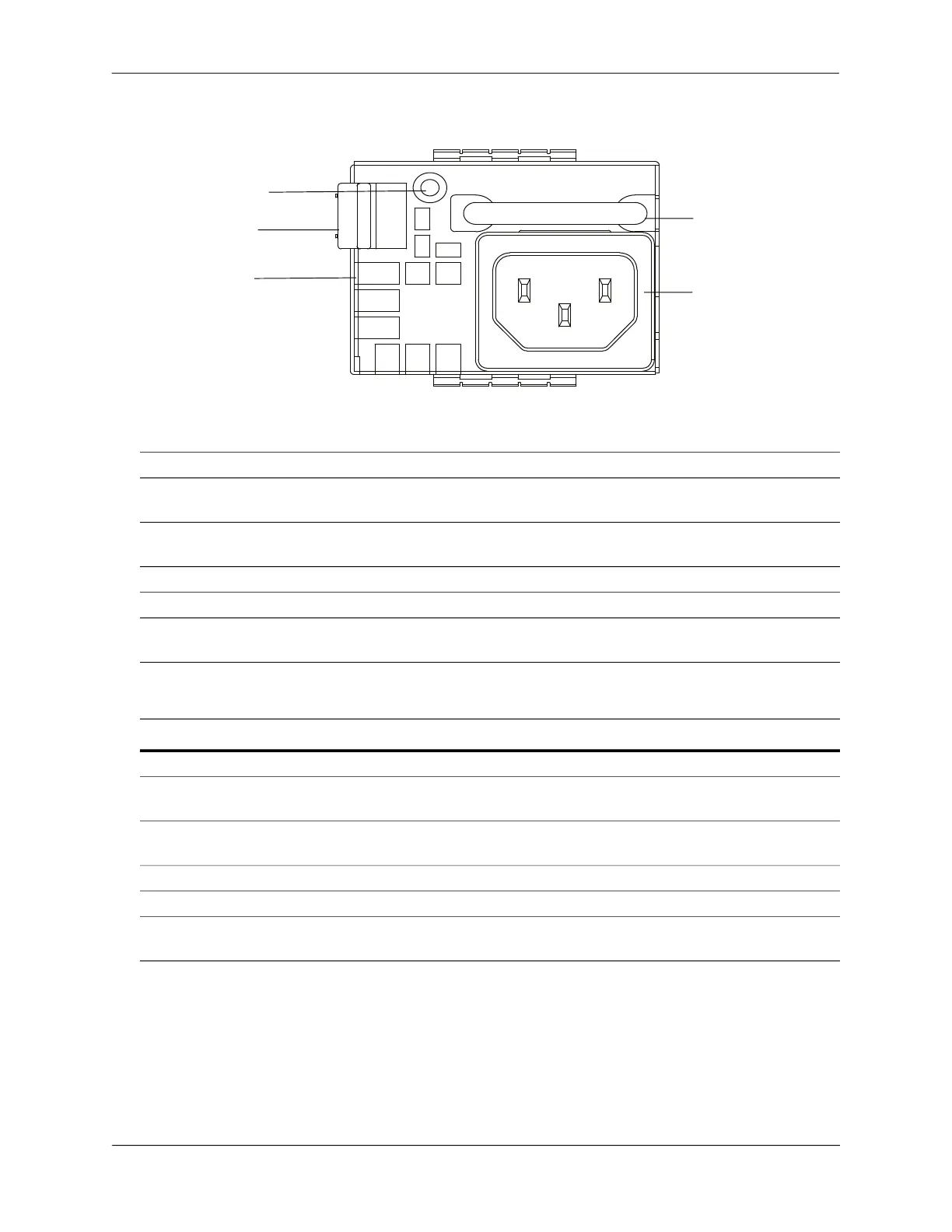

OS6860-BP 150W AC Power Supply Front Panel
OS6860-BP LED States
Model OS6860-BP (PS-150W-AC)
Models Supported OS6860-24, OS6860E-24, OS6860-48, OS6860E-48,
OS6860N-U28
Input Voltage/Current 90V to 136VAC/3A
180V to 264VAC/1.5A
Input Frequency 47Hz to 63Hz
Max. Output Power/Current 150W/12.5A
Note Mixing the OS6860-BP-D with the OS6860-BP in the same
chassis is supported.
LED State Description
Solid Green The power supply is operating normally and providing power
Flashing Green The power supply is on standby and can provide power to the chassis if
power supply failover should occur
Flashing Red No AC power is being provided to this power supply (but another power
supply is installed and operating in the adjacent power supply bay)
Flashing Green/Red Power supply warning
Solid Red Power supply failure
Off No AC power is being provided to any power supply installed in the
chassis; all power supplies are effectively off
LED
Handle
Status LED
Air Vent
Lock Tab
AC Connector
