Mounting OmniSwitch 6450 Switches Installing Available Rack Mounting Kits
OmniSwitch 6450 Hardware Users Guide September 2015 page 4-9
6 Align the holes in the flanges with the rack holes and insert rack mount screws (not provided) through
the bottom hole of each flange and then the top of each flange. Tighten both screws until they are secure.

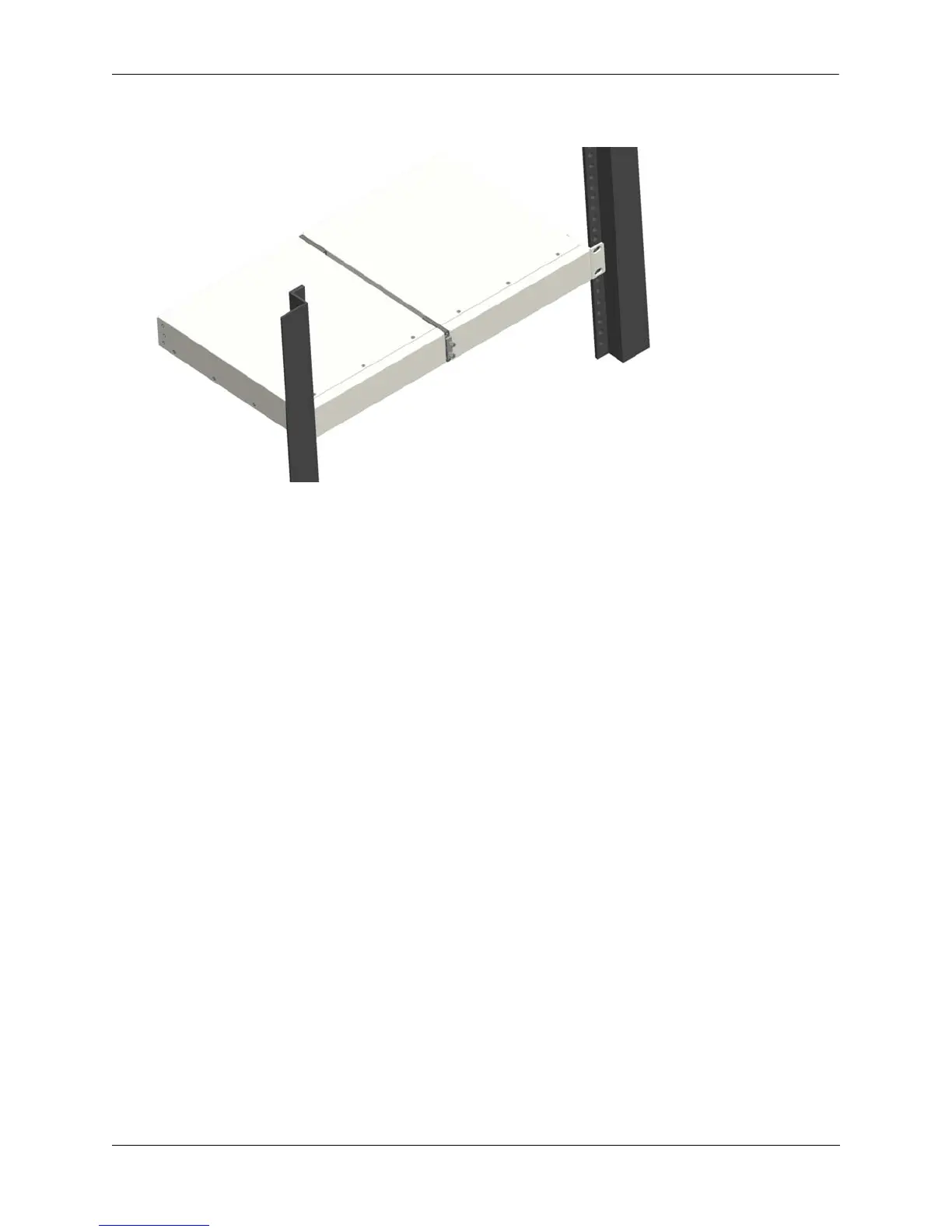

Rack-mounting Two Chassis
When rack mounting, a clearance of
0.875 inches is recommended above
the chassis.
No minimum clearance is required below the chassis
assembly. However, be sure that the bottom of the chassis
is not in direct contact with any equipment below.
