-91-
4. RECORDER SETUP
1. The DVB-100 will start up

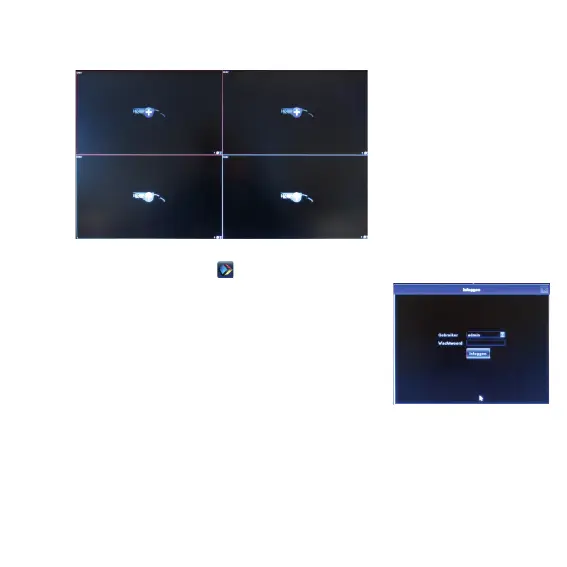

2. The following screen appears:
3. Move your mouse cursor to the upper left corner of the screen to log in.
4. Press the following icon . A drop-down menu appears.
5. Click “Login” and the login screen appears.
6. Log in with User: “admin”, leave the Password eld
empty and click the “Login” button.
7. The screen “Note” appears notifying you to change the
password for security reasons. Press the “OK” button.
8. The screen “User Guide” appears.
9. 1. Language
In this screen, select the desired language by pressing the selection arrow and
choosing your language. Now press the “Next” button.
10. 2. Screen settings
In this screen, set the video format. Choose from: PAL or NTSC. Choose PAL for
Europe.
To Next Page
