Alesis Core1 User Manual

8

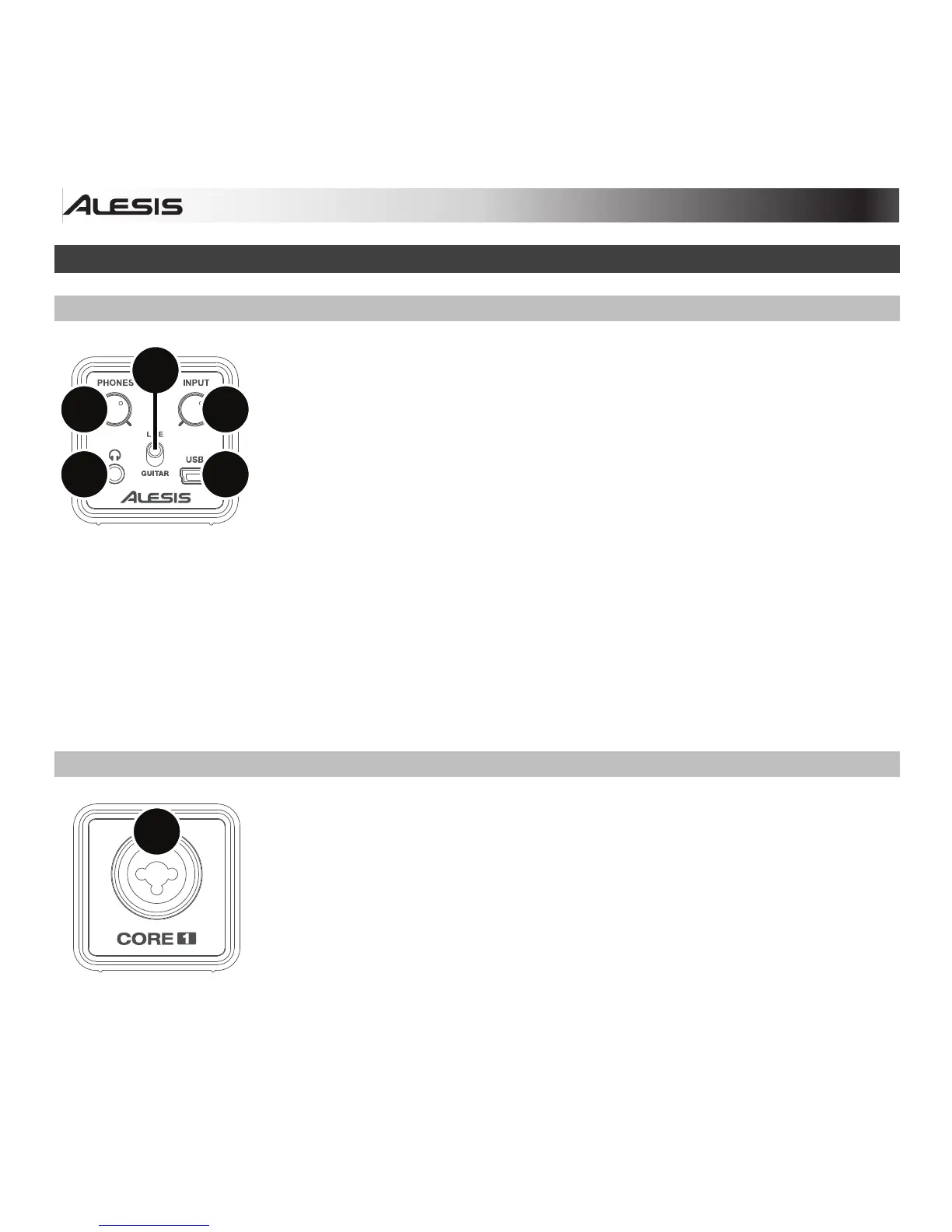

Features
Front Panel
1. Mini-USB Port: Use the included mini-USB cable to connect the
Core 1 to a computer. Core 1 requires a USB 1.1 (or higher)
connection.
2. Headphones: Connect your 1/8" (3.5 mm) headphones to this
output.
3. Headphone Volume: Adjusts the volume level of the headphone
output.
4. Input Gain: Adjusts the input's gain level. Set this knob so the
corresponding level meter in your DAW displays a "healthy" level
during performance—but not so high that the meter "clips" or
peaks, causing distortion in the audio.
5. Line/Guitar Selector: When the switch is in the Line position, the
input will accept microphone- or line-level signals. When this switch
is in the Guitar position, the input will serve as a high-impedance
input for connecting guitar or bass instruments.
Rear Panel
1. Line/Guitar Input: Connect a line-level device or guitar to this
input. For microphones and line-level signals, use an XLR or 1/4"
(6.35 mm) TRS cable. For guitar-level signals, use a 1/4" (6.35 mm)
TS cable.
1
2
34
5
1
