ELECTRONIC CONTROL BOX
O
R
I
G
I
N
A
L
11.19
ESD 1024 -1-
PLUG 1
PLUG 2
BLACK
PLUG 4
PLUG 3
FULL
HALF

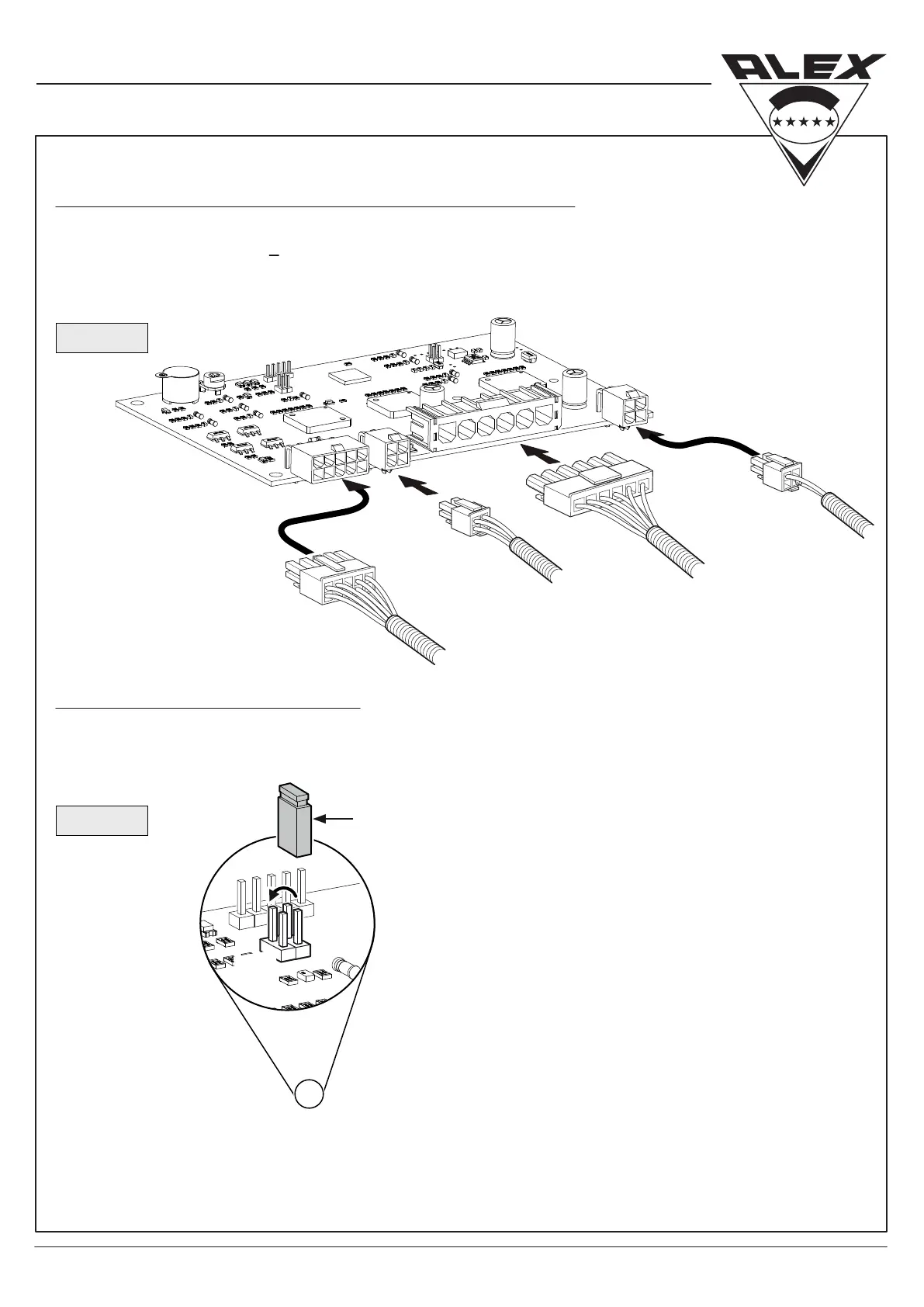

Basic Programming Close / Open Cycle-Once installation completed,
Make sure ignition is OFF and the door is OPEN, insert all plugs into the Electronic Control Box
while leaving the Black plug N
o
4 for last.
Once Black plug is connected, door will perform a slow movement close and open
cycle and should not be interfered with.
Programming Door Position at half way,
This is handy when door needs to open half way only, when a seat is located near it, for example.
As default, the module is supplied with the jumper inserted into FULL position.
For positioning the door in the HALF way mode, move Jumper into socket HALF position.
JUMPER
(g. A)
(g. B)
