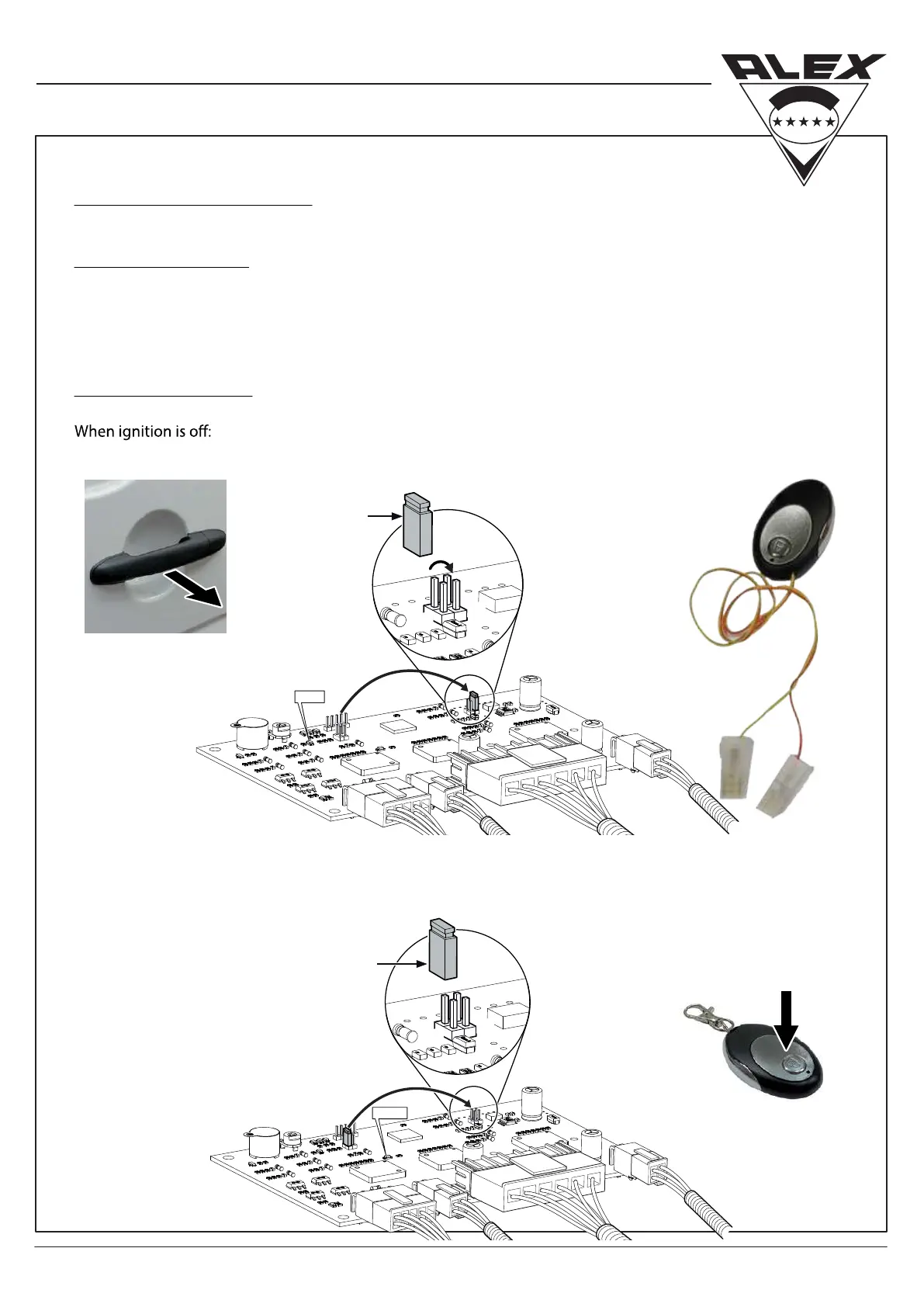

Programming the Remote Control Located inside the sliding door.
Remove jumper from its position and insert jumper into
J1 on the Electronic Control Box and hold sliding door
handle in open position for 3 seconds.
LED 1 will blink for confirmation.
Once it does, unplug the jumper and return it to the open door / FULL option in the Electronic Control Box.
Door handle operation:
When ignition is on: Door handle operates the same way as driver switch.
Door handle operates the same way as driver switch until close position.
When the door is in closed position and ignition key is off door handle operation is disabled.
J2
J1
LED 13
JUMPER
Using Original Driver Key (FOB)
No Programming is needed
Using Remote Controls
J2
J1
LED 1
JUMPER
* Return Jumper to its Original Position
with in 15 sec.
* Return Jumper to its Original Position
with in 15 sec.
Programming the Remote Control Door Operation – (In Case Original Driver Key is Not Use). Remove jumper
from its position and insert jumper into J2 socket on the Electronic Control Box and press remote for 3
seconds. LED 13 will blink for confirmation. Repeat the process with the second remote.
