4.2 Requirements
Space

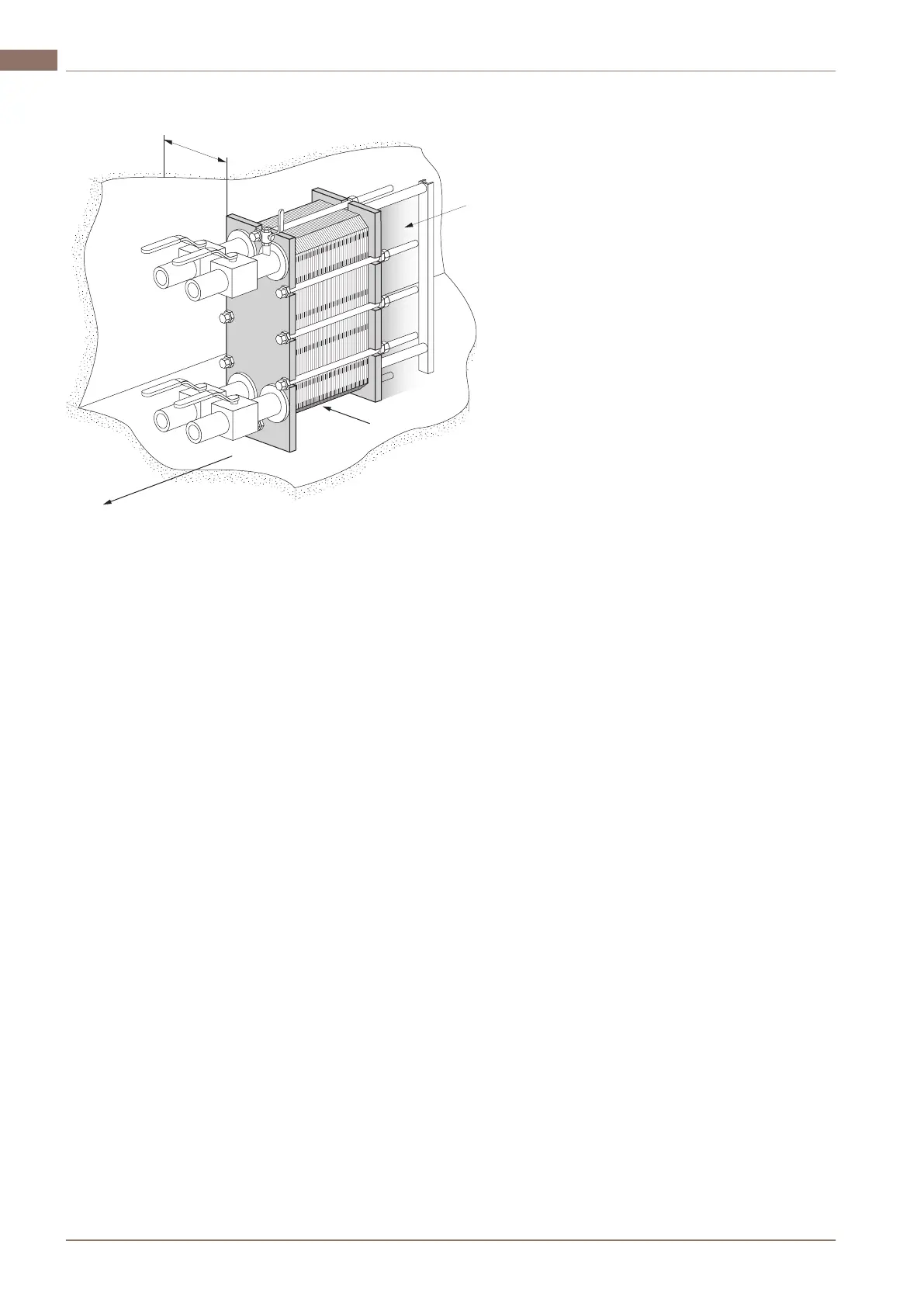

Please refer to the delivered PHE drawing for actual measurements.
1. Free space is required for lifting plates in and out.
2. Free space is required under the lower tightening/locking bolt for
maintenance.
3. Supports for the guiding bar may be needed.
4. Do not use fixed pipes or other fixed parts like feet, fasteners etc. inside
the shaded area.
Foundation
Install on a flat foundation giving enough support to the frame.
Elbow
To make it easier to disconnect the heat exchanger, an elbow should be fitted
to the connection in the pressure plate, directed upwards or sideways, and
with another flange located just outside the contour of the heat exchanger.
Shut-off valve
To be able to open the heat exchanger, shut-off valves should be provided in
all connections.
Connection
Different types of connections can be used to connect the piping system to the
apparatus. Flanged connections shall be attached with pin bolts.
Avoid excessive loads from the piping system.
