Operating Manual
3.1 General Pump Description
The pump supplied is a positive displacement
pump, which may be supplied with or without a

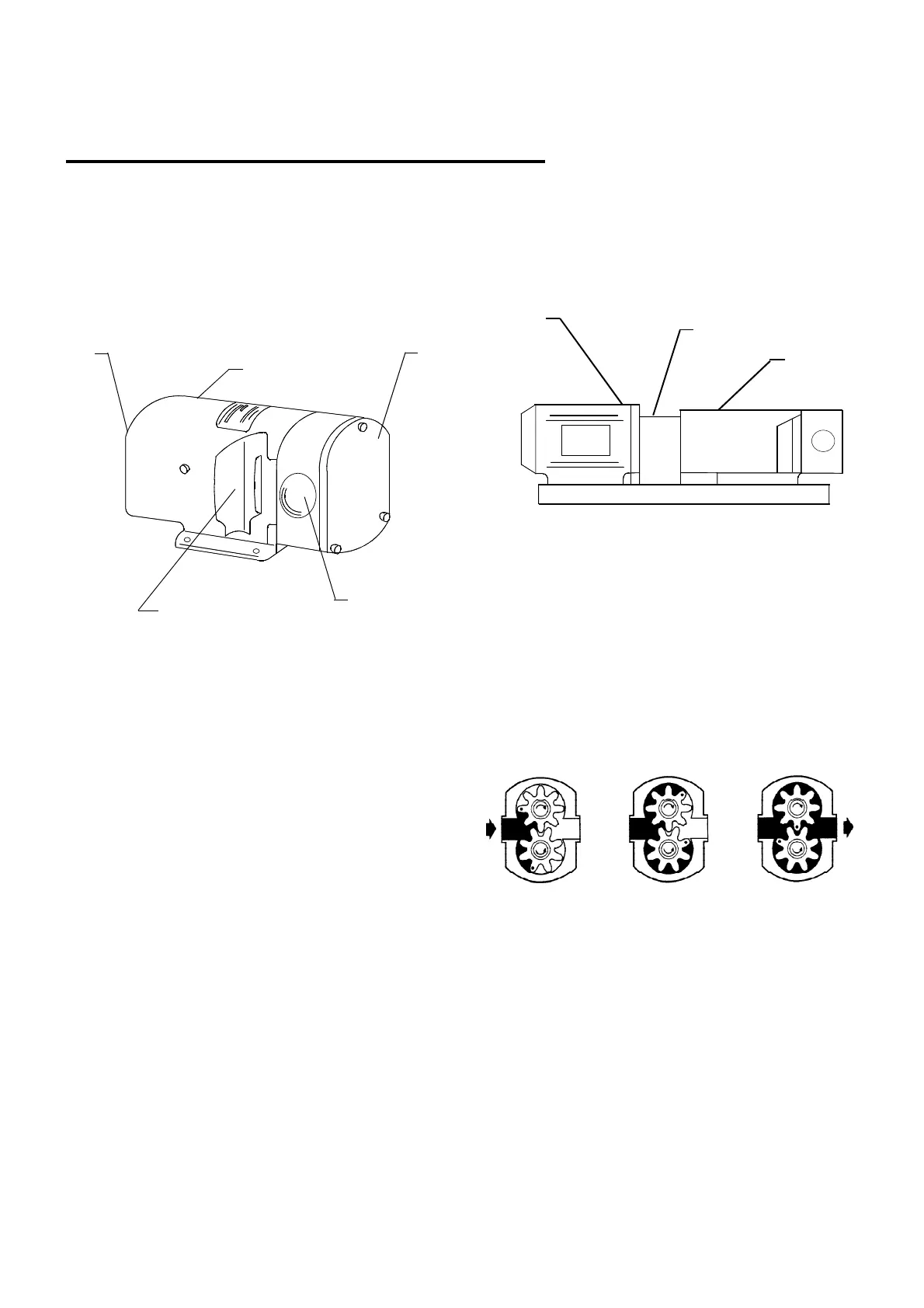

drive unit (see below). The drawing below
indicates various parts of the pump.
3.2 Working Principle
The pumps are of the positive displacement
rotary type. The volume at the inlet increases
when the gears rotate and the product is drawn
into the pump. It is then transported in the
space between the gears and the periphery of
the body to the discharge side. The volume
between the gears is reduced here and the
product is forced out through the outlet.
PUMP WITH DRIVE UNIT
Motor
Coupling
Pump
Front
Cover
Ports
Product
Seal Area
Drive
Shaft
BARESHAFT PUMP
Gearbox
3.0 Description Of Pump Or Pump Unit
6
