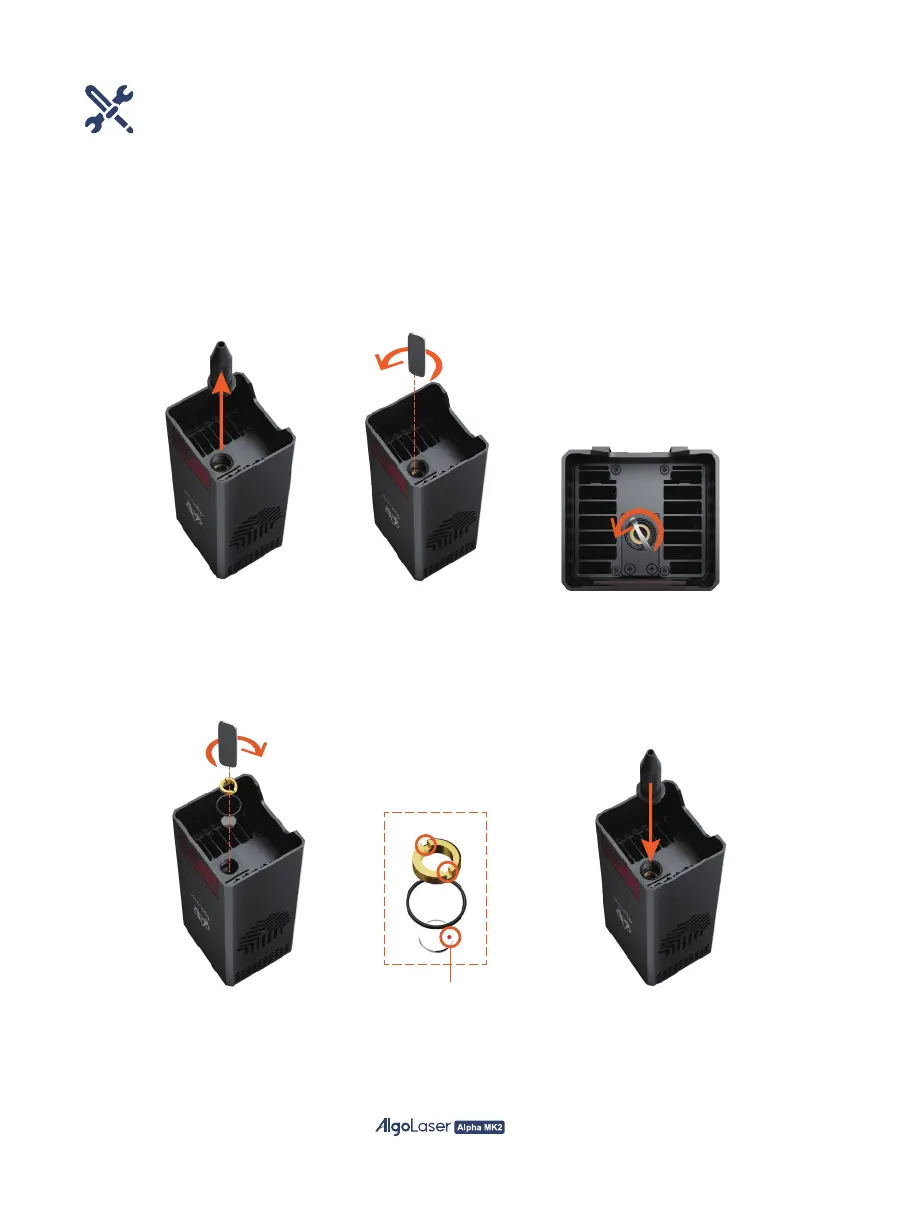

How to Replace the Lens
Remove the Air Assist Nozzle first, then loosen the Brass Lense Nut with a Lens Tool, pay
attention to the rotation direction of the wrench, and take out the old seal ring and lens.
8.2 Install
The notched side of the Brass Lense Nut faces up. Pay attention to the order in which you put it in.
Then tighten it with a Lens Tool, but do not use too much force, or the lens may be damaged.
The side with red spots on the lens faces outward.
These three parts can only be tightened after they are placed flat, otherwise the lens will be broken!
