Navigating and Customizing Your Flow Controller
Menu | Control
MAIN
ADV
CONTROL
BACK
SETPT
+15.44
MAIN Exits to the Main Display
(page 19).
BACK Returns to the top-level
Menu (page 24).

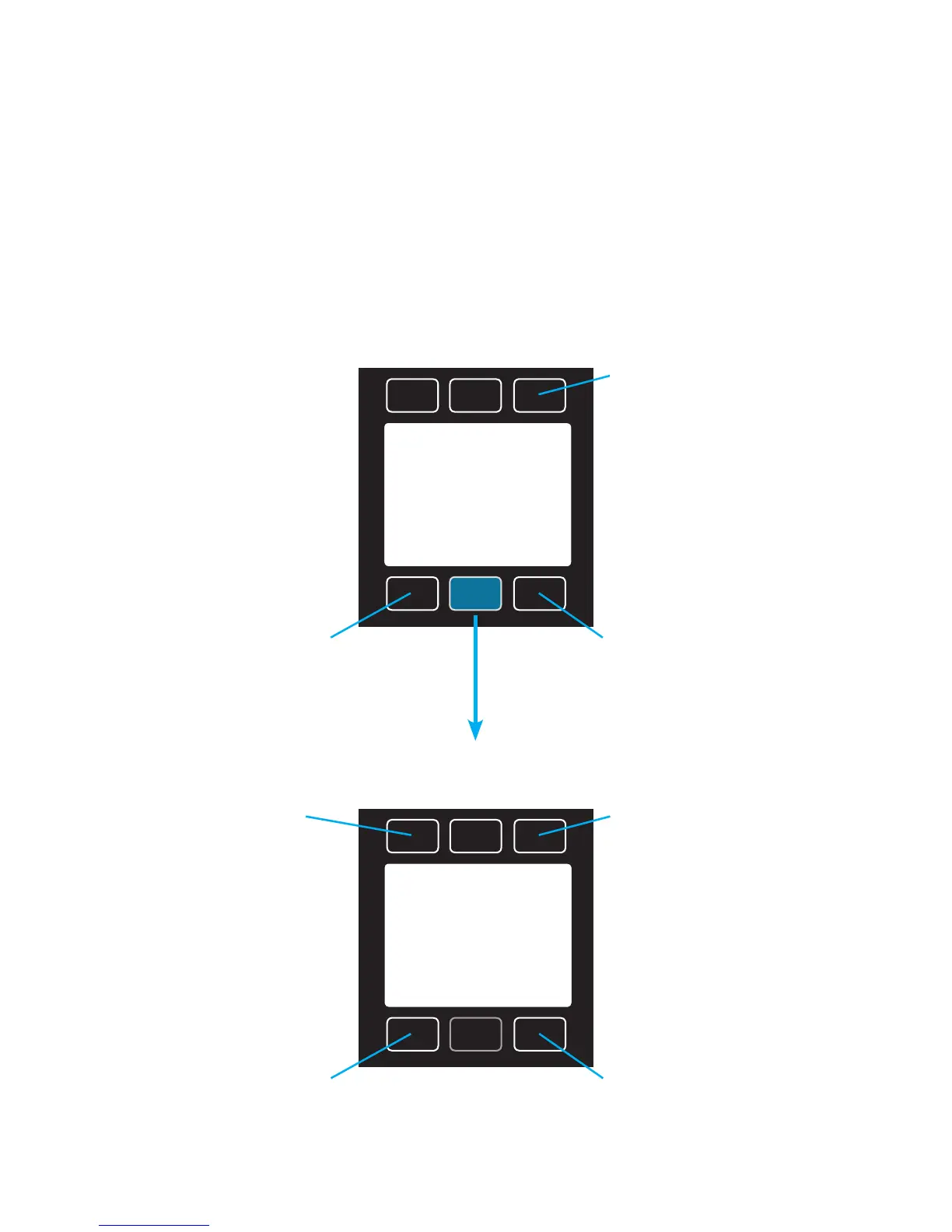

Control Menus
The Control and Advanced Control menus allow you to command new
setpoints, change the setpoint control loop and adjust PID settings, among
other options.
SETPT Displays the current
setpoint. Press to command
a new setpoint or clear the
existing one.
*Setpoints are not editable
via the front panel if the
setpoint source is Analog.
MAIN
BACK
LOOP
SETUP
SETPT
SOURCE
MAIN Exits to the Main Display
(page 19).
BACK Returns to the Control
Menu (above).
LOOP SETUP Selects the type
of closed loop control and
adjusts PID settings (page
27).
SETPT SOURCE Toggles the
setpoint input between
serial and analog sources.
Control | Advanced Control
To Next Page
